LG5 Series Ball Screw Driven Max. Horizontal/Vertical Payload 15kg/5kg Stroke 400mm

0 reviews - Write a review

C$201.32

5 + C$195.43

10 + C$189.89

50 + C$184.66

100 + C$179.70

In Stock: 200
Model: LG5-40DL10S3-400
Gross Weight: 3.15kg

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

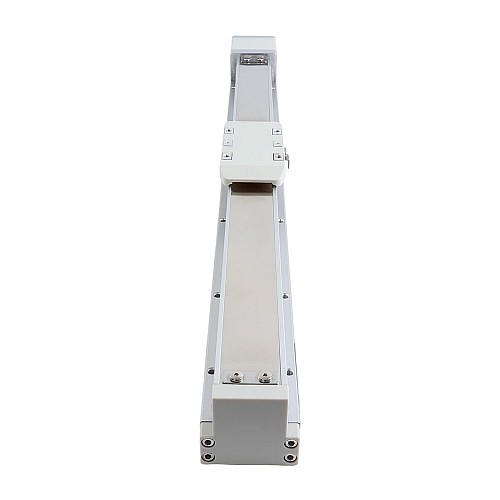

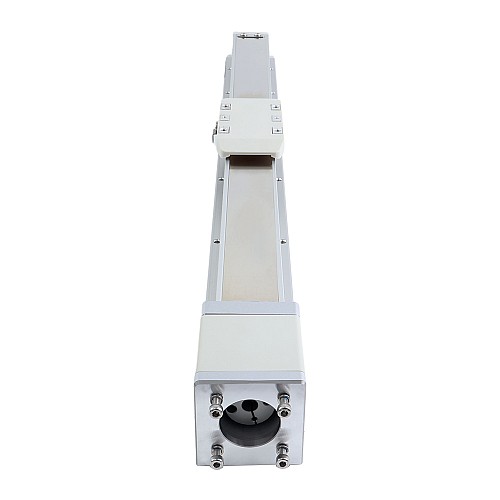

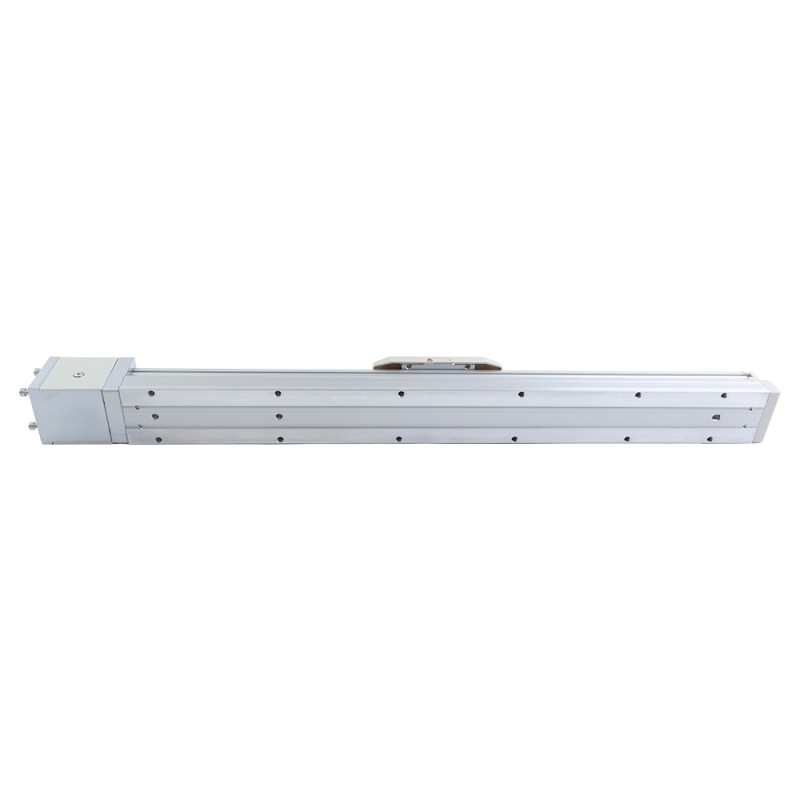

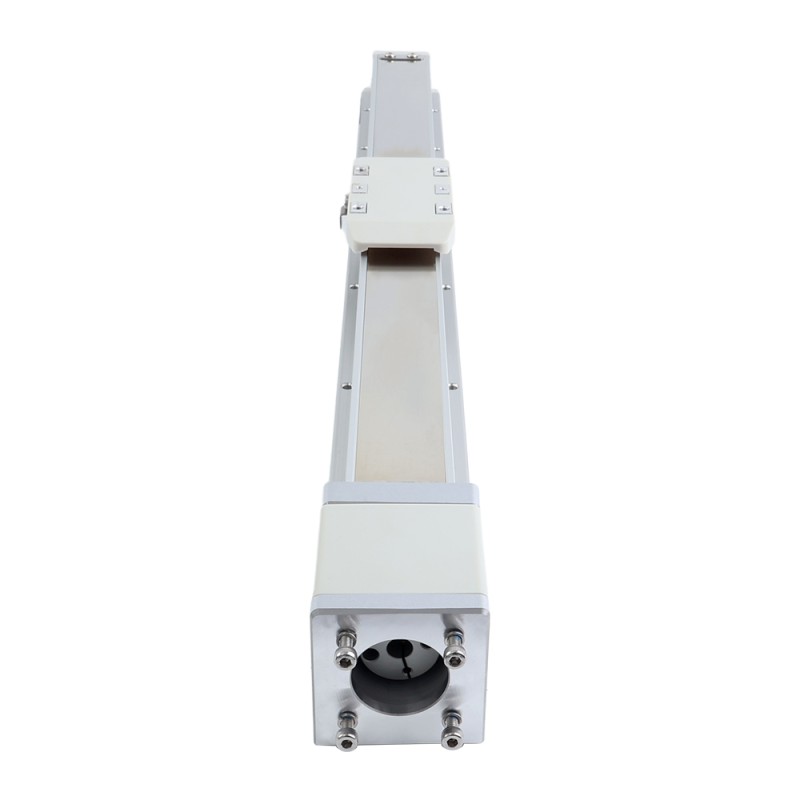

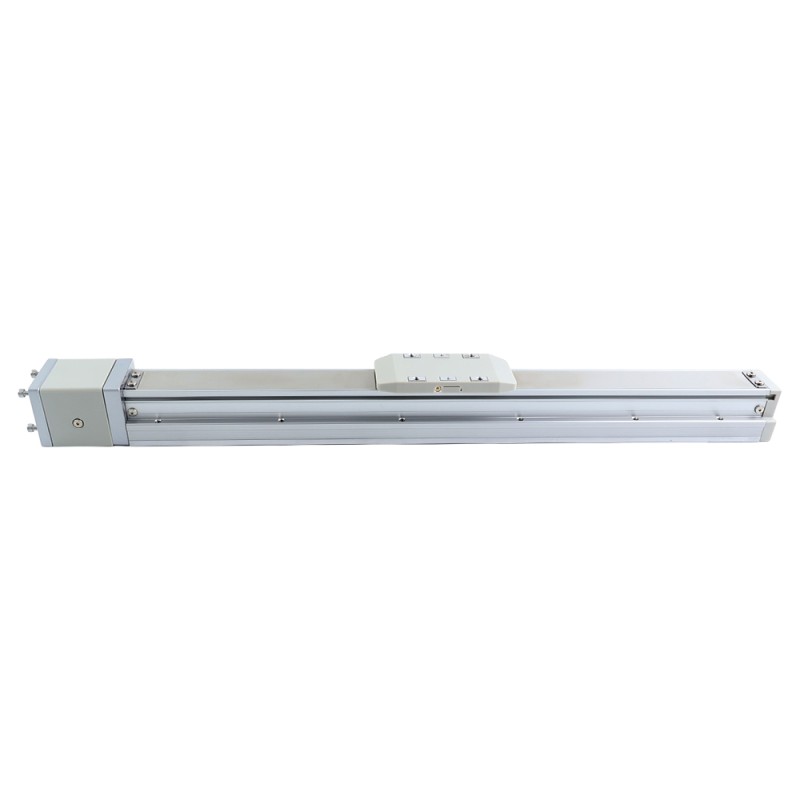

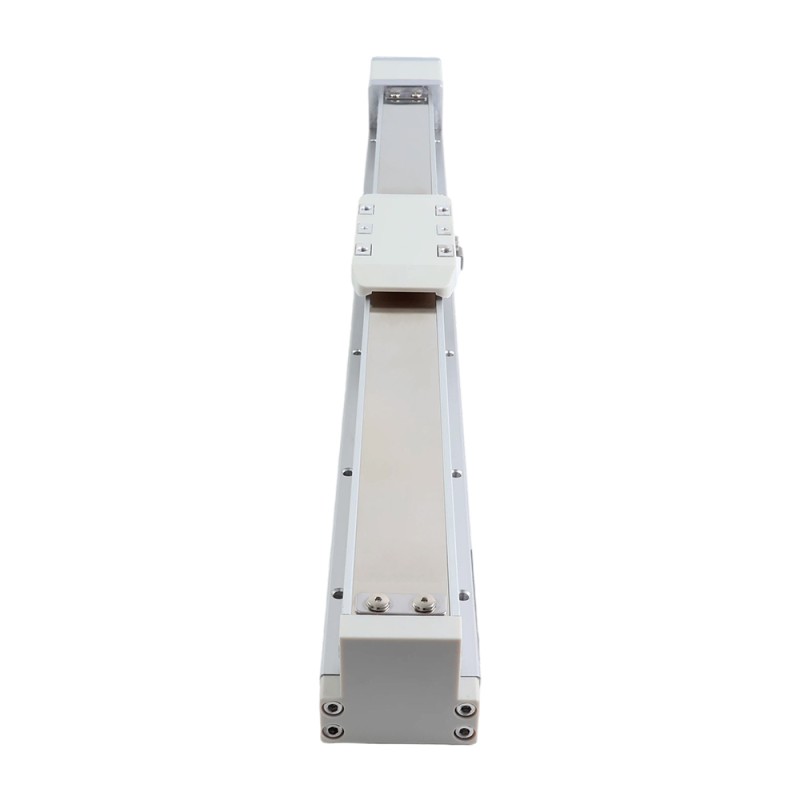

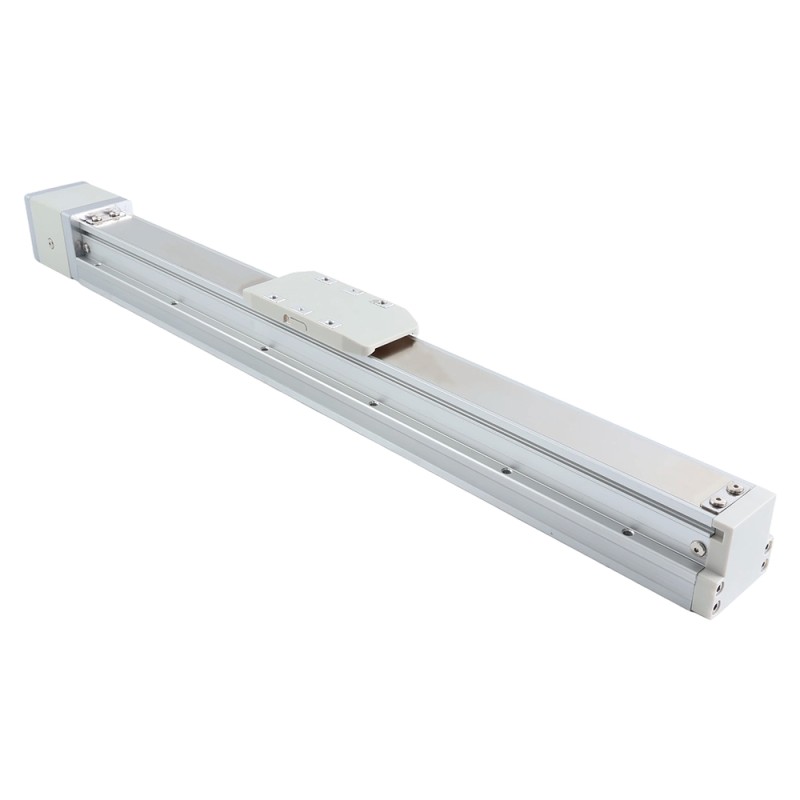

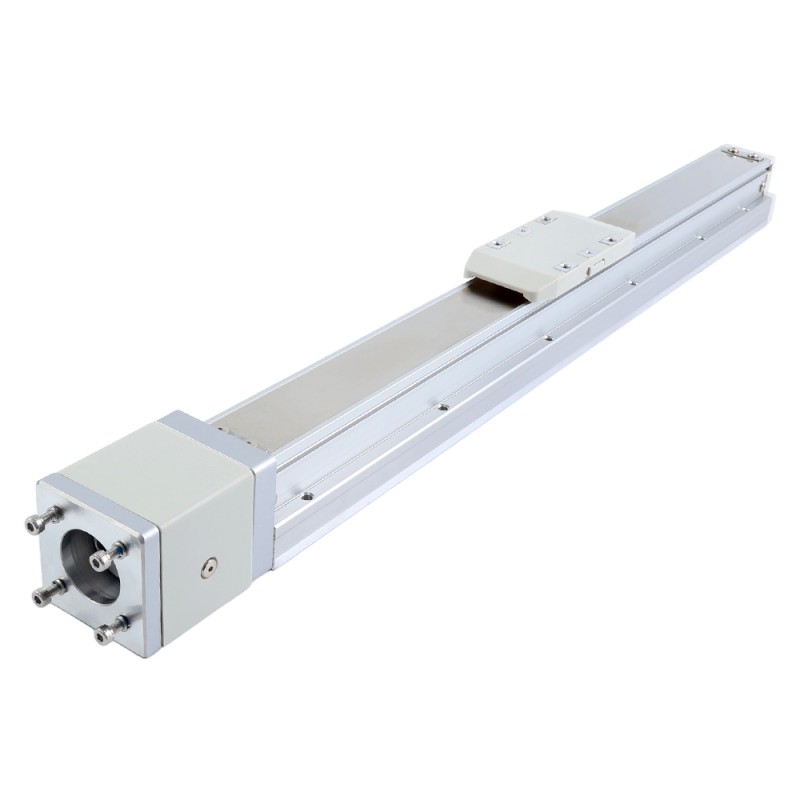

This LG5 series ball screw driven dustproof linear actuator offers a maximum horizontal payload of 15kg(33.07lb) and maximum vertical payload of 5kg(11.02lb), a stroke length of 400mm(1.31ft) and maximum speed of 500mm/s(1.64ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LG series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

PN: LG5-40DL10S3-400
Screw Type: Ball Screw
Position Accuracy: ± 0.01mm
Ball Screw Lead: 10mm(0.033ft)
Maximum Speed: 500mm/s(1.64ft/s)
Maximum Horizontal Payload: 15kg(33.07lb)
Maximum Vertical Payload: 5kg(11.02lb)
Rated Thrust: 170N
Sensor Type: NPN
Number of Sensors: 3
Ball Screw Grade: C7
Ball Screw Diameter: Φ12mm
Motor Frame: 40mm Servo Motor(100W)
Stroke Length: 400mm(1.31ft)
Input Shaft Length: 25mm
Input Shaft Diameter: 8mm

Adapting Motors:

1. AC Servo Motors

RS Series: A6-RS100L2A1-M17 and A6-RS100L2B1-M17(with brake)
EC Series: A6-EC100L2A1-M17 and A6-EC100L2B1-M17(with brake)

2. DC Servo Motors

RS Series: DSY-RS100L2A2-M17S and DSY-RS100L2B2-M17S(with brake)
C Series: DSY-C100L2A2-M17S and DSY-C100L2B2-M17S(with brake)

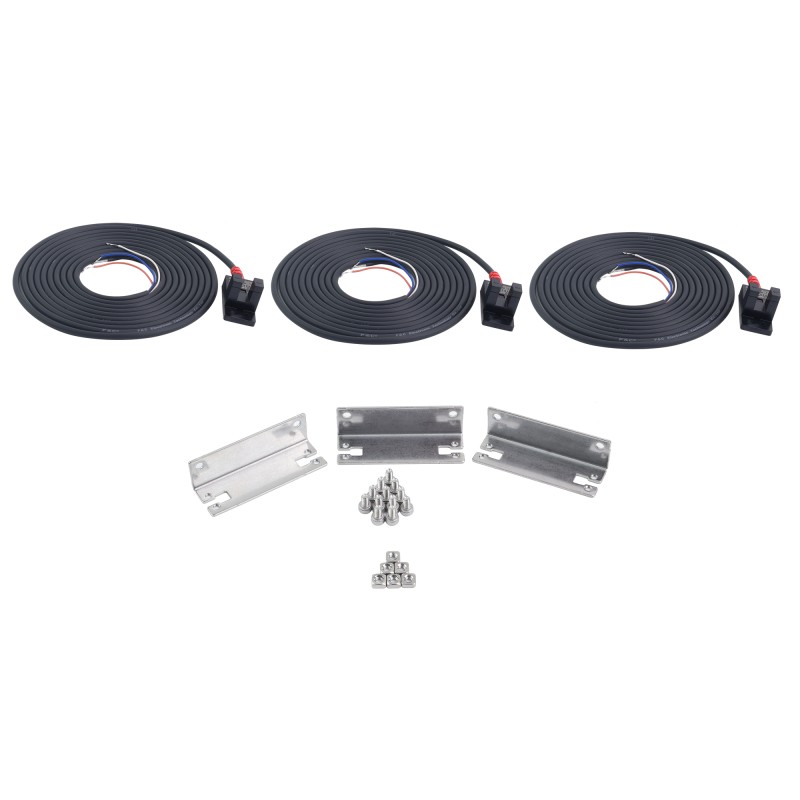

Please note: this linear actuator comes standard with 3 photoelectric sensors. If more are needed, they can be purchased via this link.

Physical Specification
Input Shaft Diameter(mm)	8
Input Shaft Length(mm)	25
Lead(mm/ft)	10/0.033
Linear Motor Type	Built-in screw
Max. Horizontal Payload(kg/lb)	15/33.07
Max. Speed(ft/s)	1.64
Max. Speed(mm/s)	500
Max. Vertical Payload(kg/lb)	5/11.02
Motor Mounting Flange	40mm Servo Motor
Motor Mounting Position	Direct Connect
Rated Thrust(N)	170
Stroke Length(mm/ft)	400/1.31
Transmission Method	Ball Screw Driven
