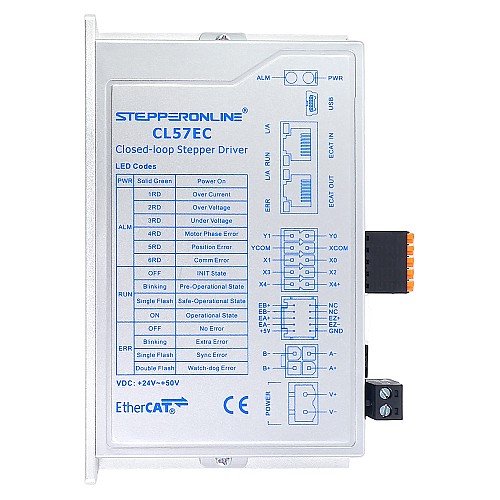

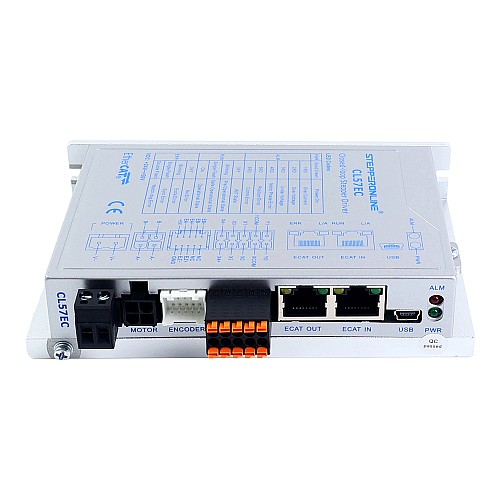

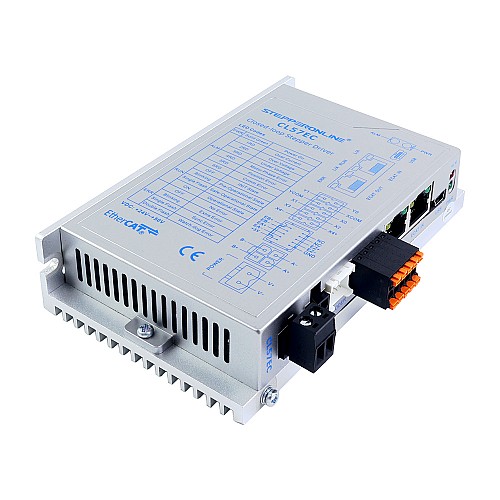

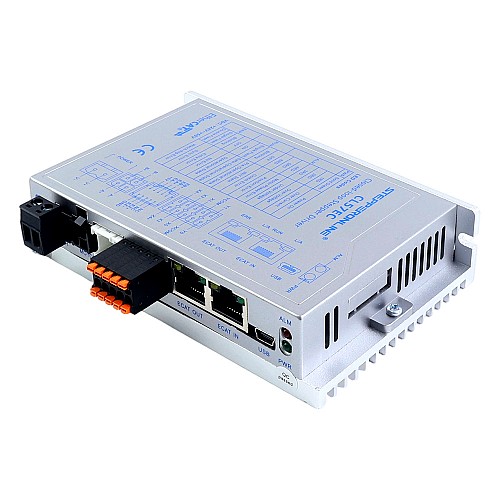

Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor

The CL57EC is a high-performance, stability, low noise, and vibration closed-loop driver with 32-bit DSP technology. Supports 24-50VDC input, adjustable current up to 7.2A. Features isolated EtherCAT bus with COE protocol and four motion control modes (CSP, PP, PV, HOME). Includes multiple digital inputs/outputs for control and status signals. Fine subdivision from 400 to 51200. Offers over-voltage, under-voltage, over-current, and phase error protection. Compatible with major EtherCAT master controllers. Ideal for battery, photovoltaic, semiconductor, automation, robotics, medical, and laser equipment.

Key Features

• New generation 32-bit DSP technology, high cost performance, good stability, low noise, low vibration
• Based on 100BASE-TX Ethernet transmission standard, transmission rate up to 100Mbps, full- duplex communication
• Supports CANopen over EtherCAT (CoE) and complies with CiA 402 standards
• Cyclic Sync Position,Profile Position,Profile Velocity, Homing and other working modes are supported

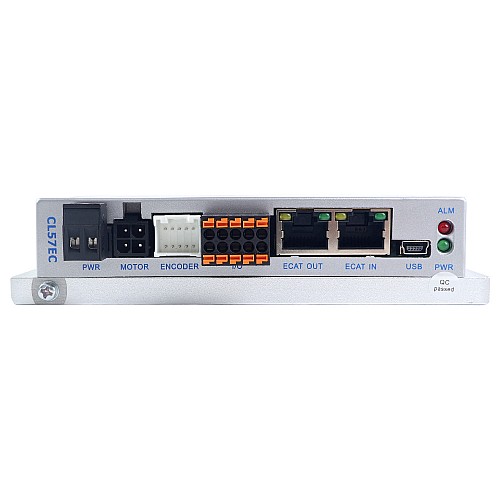

• A double-port RJ45 connector is used for EtherCAT communication
• Four optical isolation input ports with 12V to 24V input
• Two optical isolation output ports
• Subdivision 400~51200 arbitrary Settings, support electronic gear
• Smooth and accurate current control, low motor heat
• Has over voltage, under voltage, over current and other protection functions

Electrical Specifications

• Output Peak Current: 0 - 7.2A
• Continuous Output Current: 0 - 5.0A(Typical 2.0A)
• Input Supply Voltage: 24 - 50VDC
• Logic input current: 5 - 50mA(Typical 10mA)
• Logic input voltage: 5 - 24V
• Insulation Resistance: 100MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉)

• Cooling: Natural Cooling or Forced cooling
• Environment: Stay away from other heating equipment, avoid dust, oil mist, corrosive gas, strong vibration places, flammable gas and conductive dust are prohibited
• Ambient Temperature: 0 - 50℃
• Humidity: 40% - 90%RH
• Operating Temperature: 50℃ MAX
• Vibration: 10-50Hz/0.15mm
• Storage Temperature: -20 - 70℃
• Weight: Approx.376g(13.26oz)

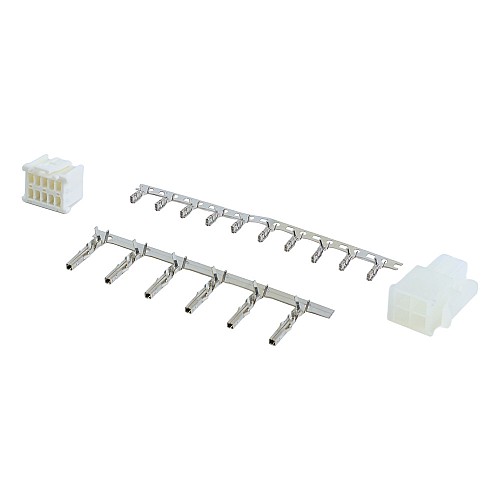

Packing List

• 1 x CL57EC Driver
• 1 x RS232-6
