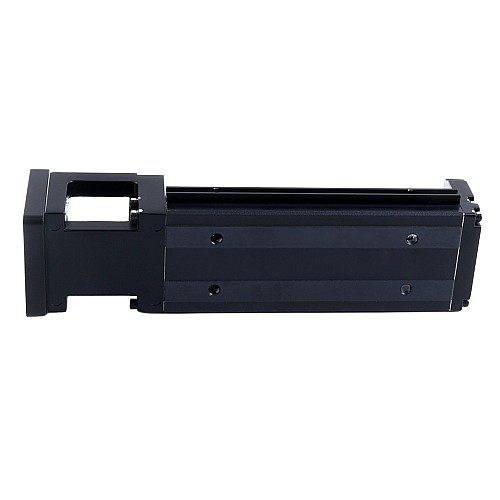

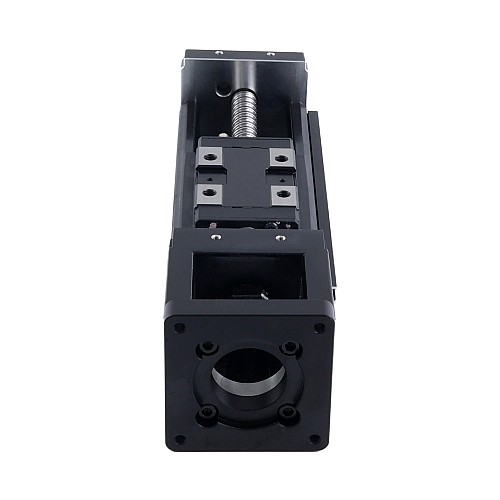

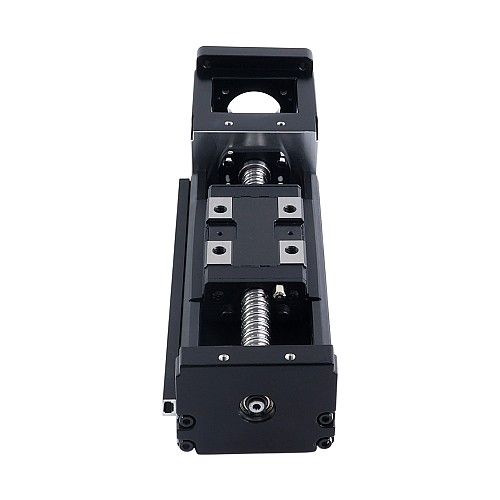

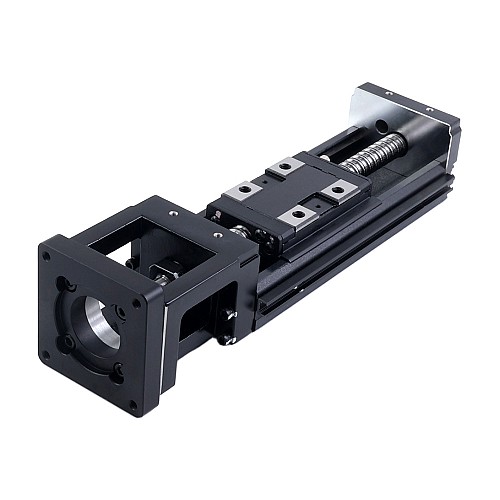

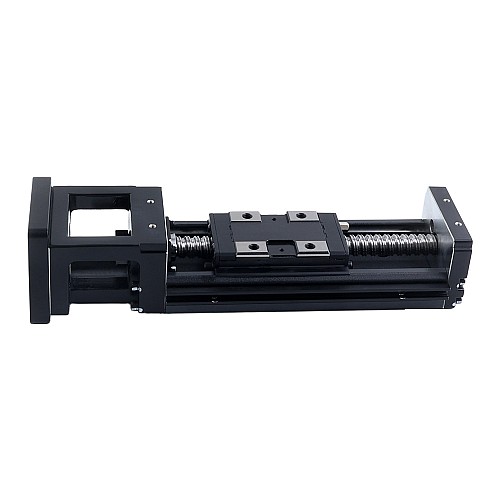

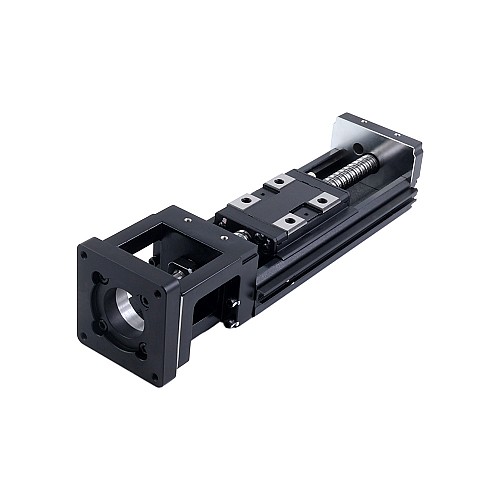

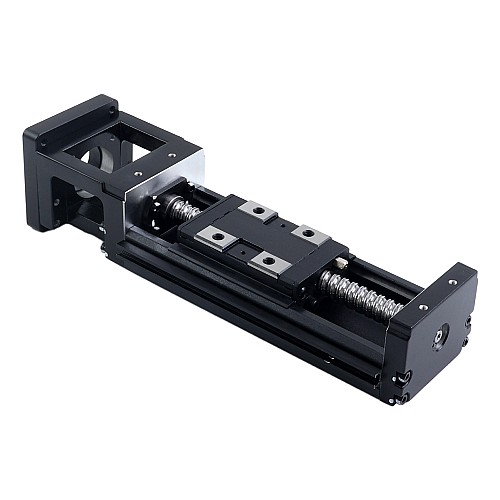

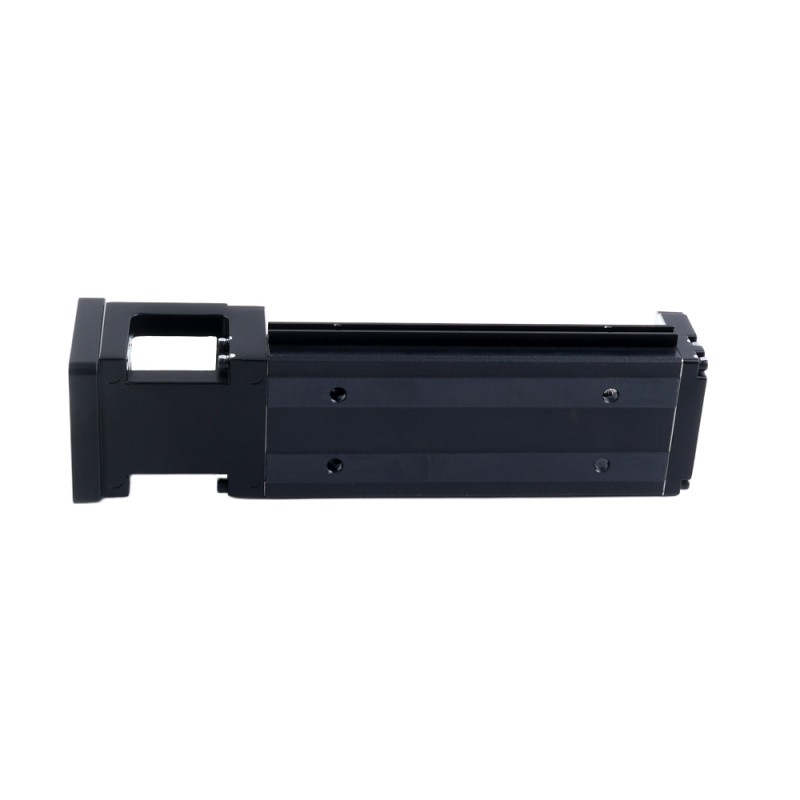

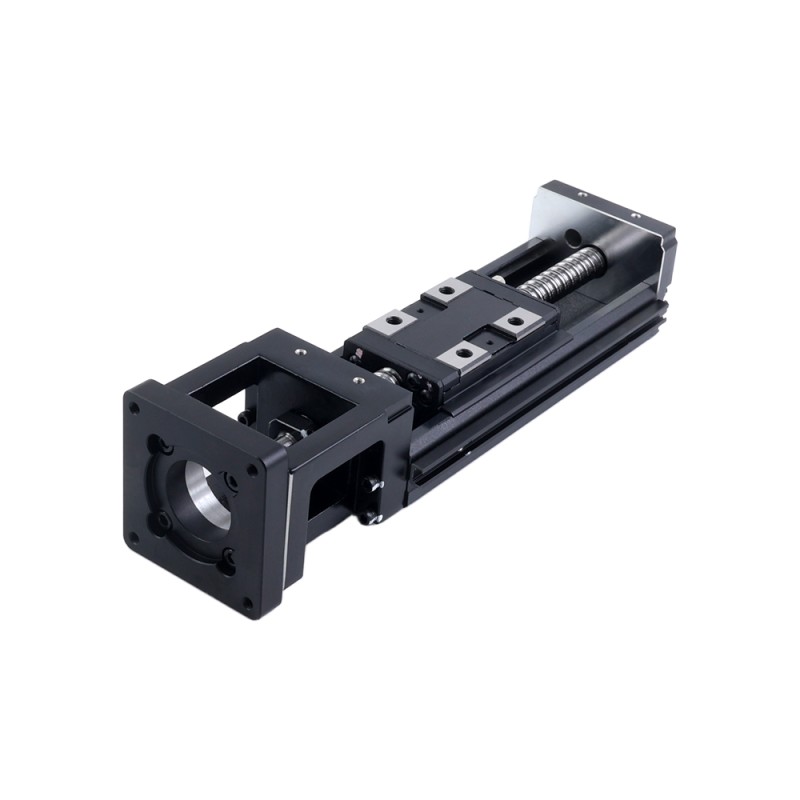

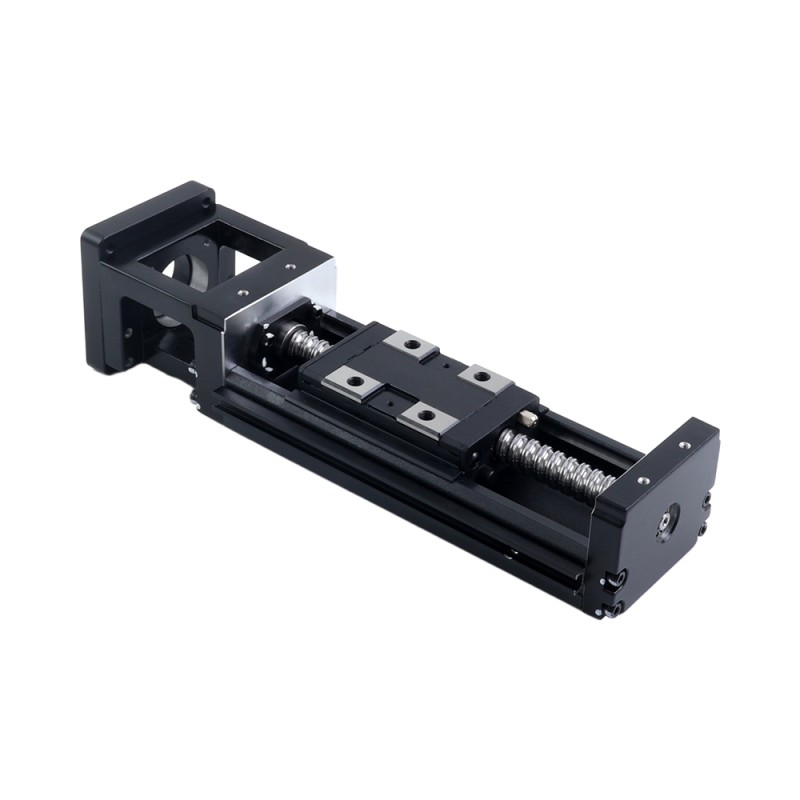

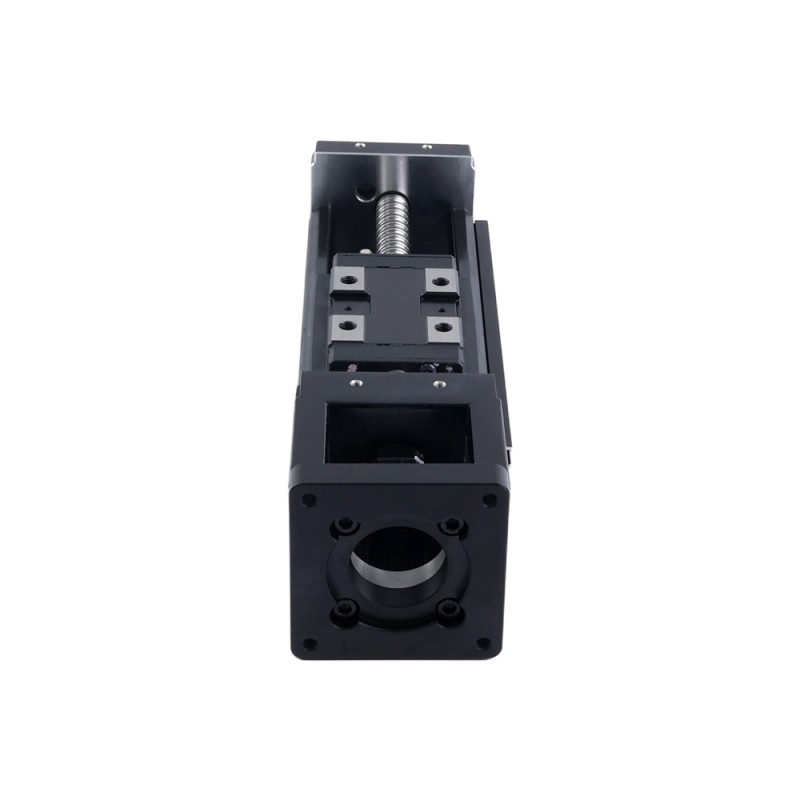

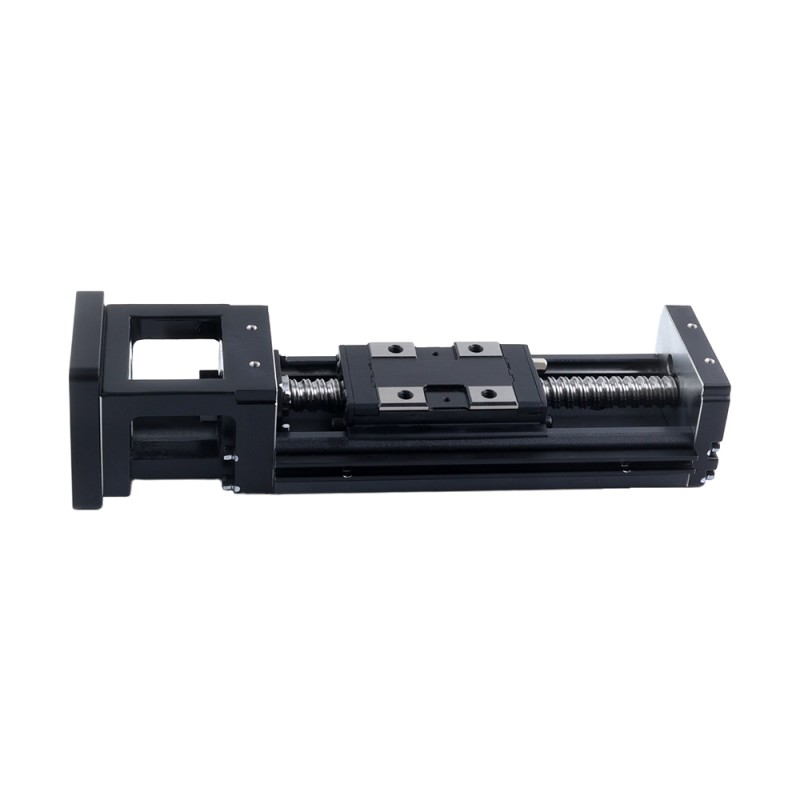

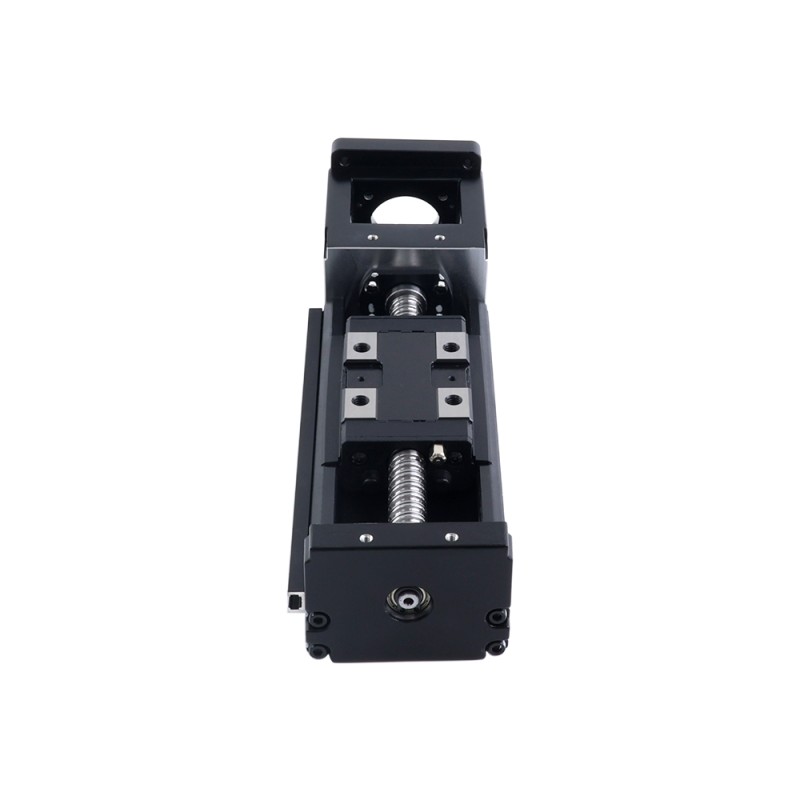

LK2A60 Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 60mm

This LK2A60 series ball screw driven linear actuator offers a maximum horizontal payload of 30kg(66.14lb) and maximum vertical payload of 10kg(22.05lb), a stroke length of 60mm(0.2ft) and maximum speed of 800mm/s(2.62ft/s).

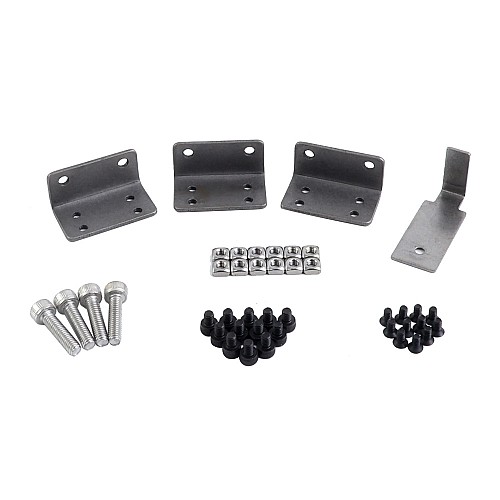

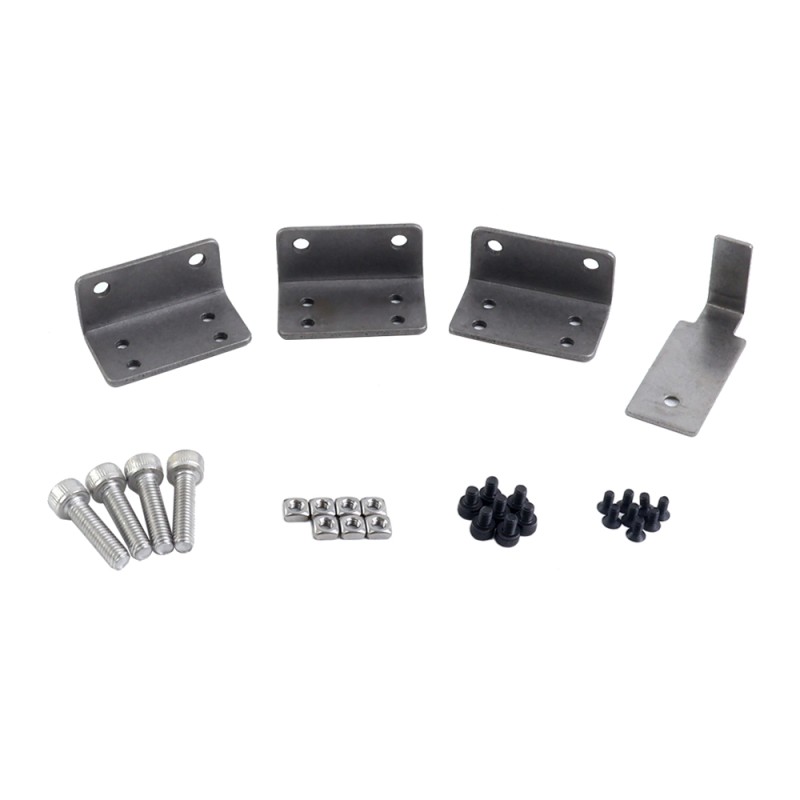

The LK2A series ball screw driven linear actuator adopts a stripped-down architecture that eliminates unnecessary components—such as sensors, protective covers, and couplings—resulting in a compact, lightweight design ideal for space-constrained automation. This streamlined approach reduces weight and installation footprint while delivering reliable linear motion with simplified assembly. To support application flexibility, it features sensor mounting rails, sensor fixing brackets, and light-blocking plates on the sliders. Engineered for applications demanding efficiency and economy, the LK2A provides dependable performance in high-cycle environments without the complexity of added hardware.

Specifications

• Part Number: LK2A60-23DL050-060
• Screw Type: Ball Screw
• Stroke Length: 60mm(0.2ft)
• Position Accuracy: ± 0.01mm
• Ball Screw Lead: 5mm(0.0164ft)
• Maximum Speed: 800mm/s(2.62ft/s)
• Maximum Horizontal Payload: 30kg(66.14lb)
• Maximum Vertical Payload: 10kg(22.05lb)
• Rated Thrust: 341N
• Ball Screw Grade: C7
• Ball Screw Diameter: Φ12mm

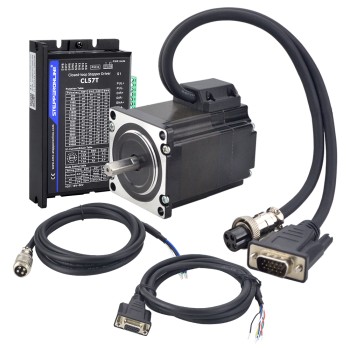

• Motor Frame: Nema 23 Closed Loop Stepper Motor
