LK2A86-60DL10S0-616 Discontinued

This product has been discontinued and is no longer available for purchase. Please contact us for a replacement.

Question

Downloads

LK2A86-60DL10S0-616_Full_Datasheet.pdfPDF · 195.76KBLK2A86-60DL10S0-616.stpSTP · 1.38MBLog in to download
Same series
ModelPriceStock
1-CL57Y-S12 Discontinued—————
1-CL57Y-S20 Discontinued—————
1-CL57Y-S30A Discontinued—————
1-CLYS20 Discontinued—————
1-CLYS30 Discontinued—————
1-CLYS30-1M5 Discontinued—————
1-CLYS30S-V20 Discontinued—————
1-CLYS40 Discontinued—————
1-DM542T-24HS34 Discontinued—————
1-DM542T-24HS39 Discontinued—————
1-DM556S-24HS39 Discontinued—————
11C13S0754ED3-013RS Discontinued—————
11E13S0754ED2-100RS Discontinued—————
11E18S0754ED2-101RS Discontinued—————
11E18S0754FD3-250RS Discontinued—————
11E18S0754GD3-250RS Discontinued—————
11E20S0674AA2-100RS Discontinued—————
11E20S0674ED2-100RS Discontinued—————
11HS12-0674D2-PG27 Discontinued—26.85Economy Planetary——
11HS12-0674S-PG100 Discontinued—99.548Economy Planetary——
11HS20-0674D-PG14-AR3 Discontinued—13.73Economy Planetary——
11HS20-0714S-PG100 Discontinued—99.05Economy Planetary——
11N13S0754AA2-100RS Discontinued—————
11N13S0754QE2-150RS Discontinued—————
11N18S0754ED3-250RS Discontinued—————
11N20S0674AA2-100RS Discontinued—————
14E13S0574JE3-150RS Discontinued—————
14E13S0574QE3-150RS Discontinued—————
14E17S0914JE3-250RS Discontinued—————
14E17S0914QE3-250RS Discontinued—————
View all in category

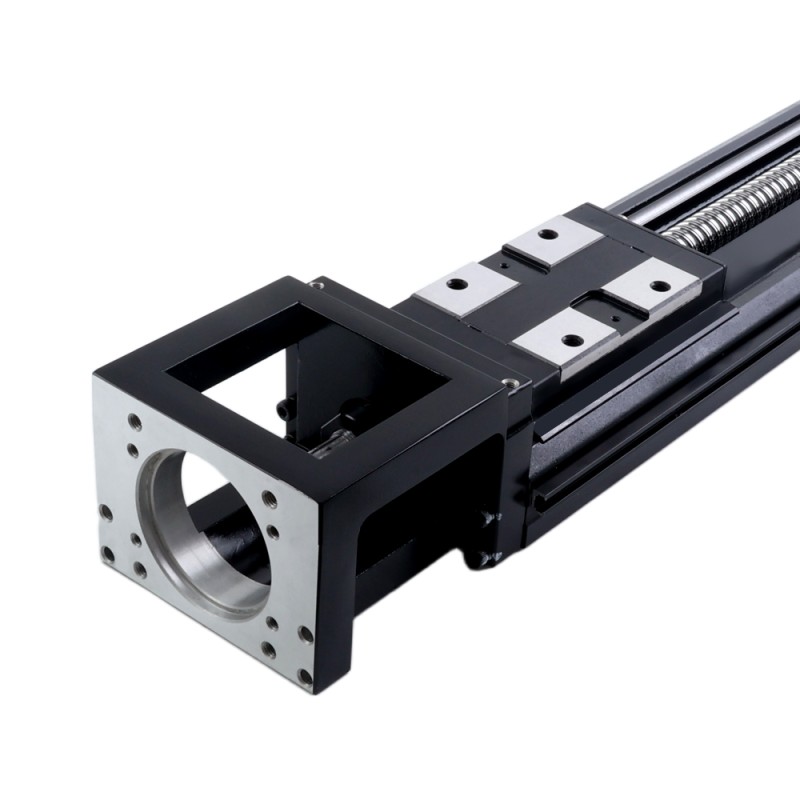

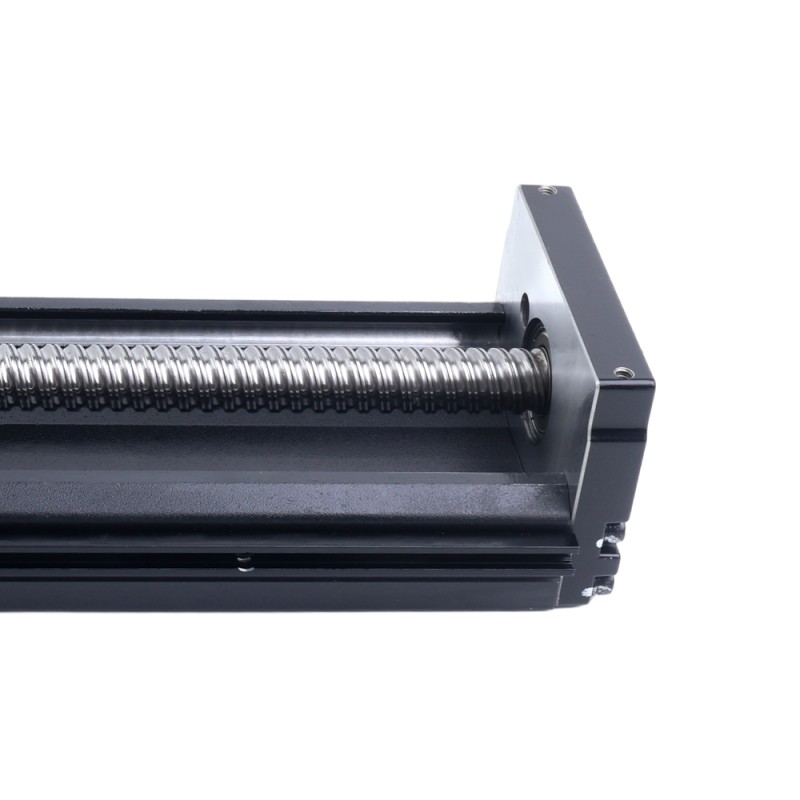

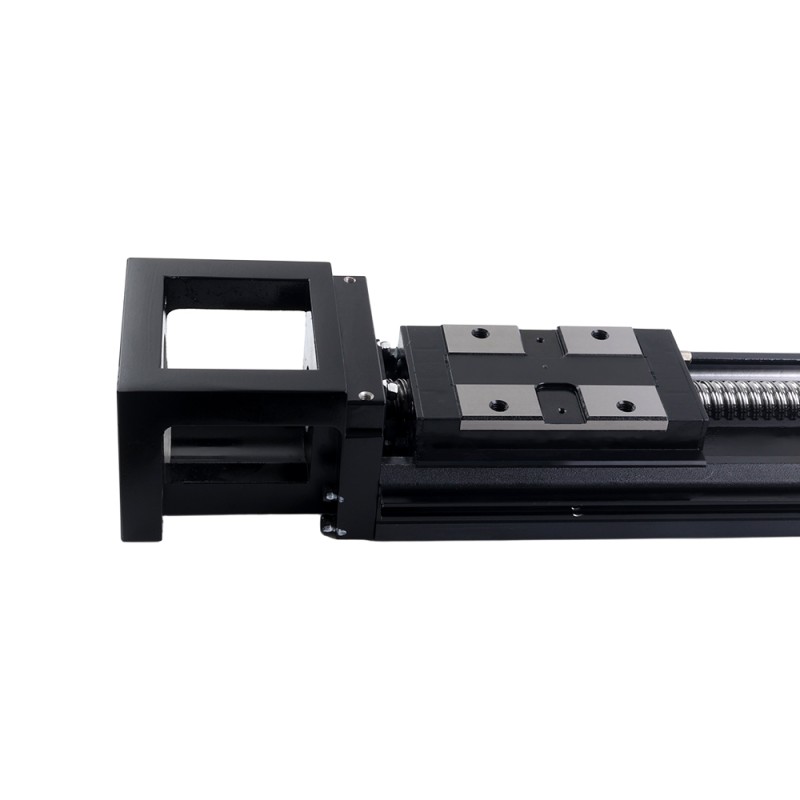

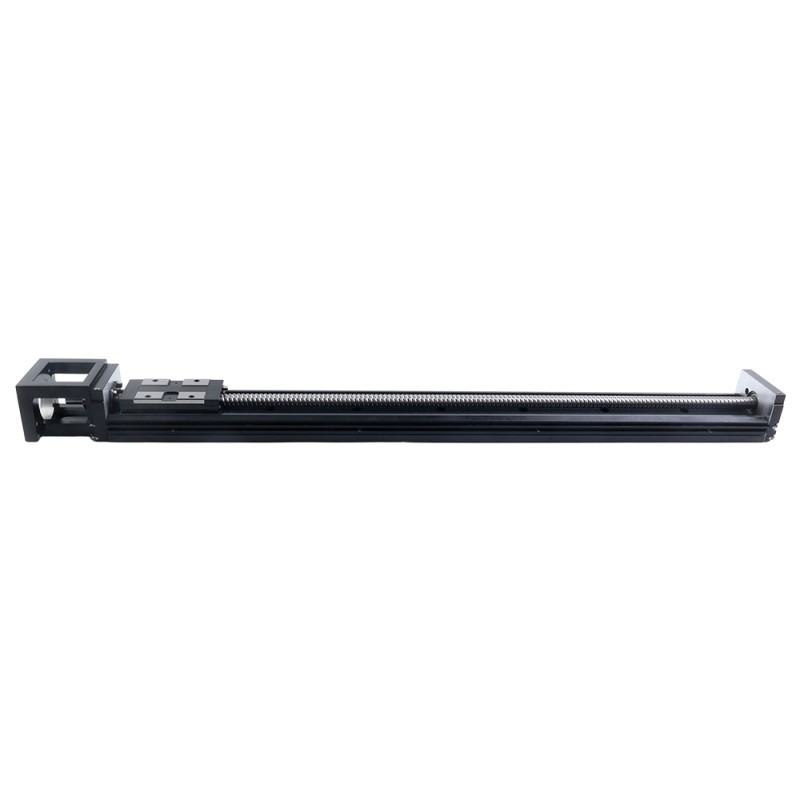

LK2A86 Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 40kg/12kg Stroke 616mm
This LK2A86 series ball screw driven linear actuator offers a maximum horizontal payload of 40kg... Read More
0 reviews • Write a review
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

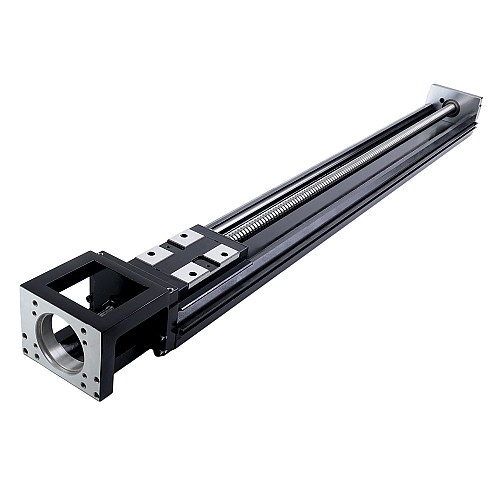

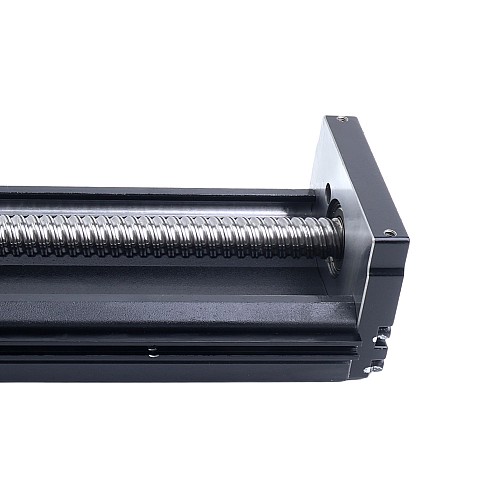

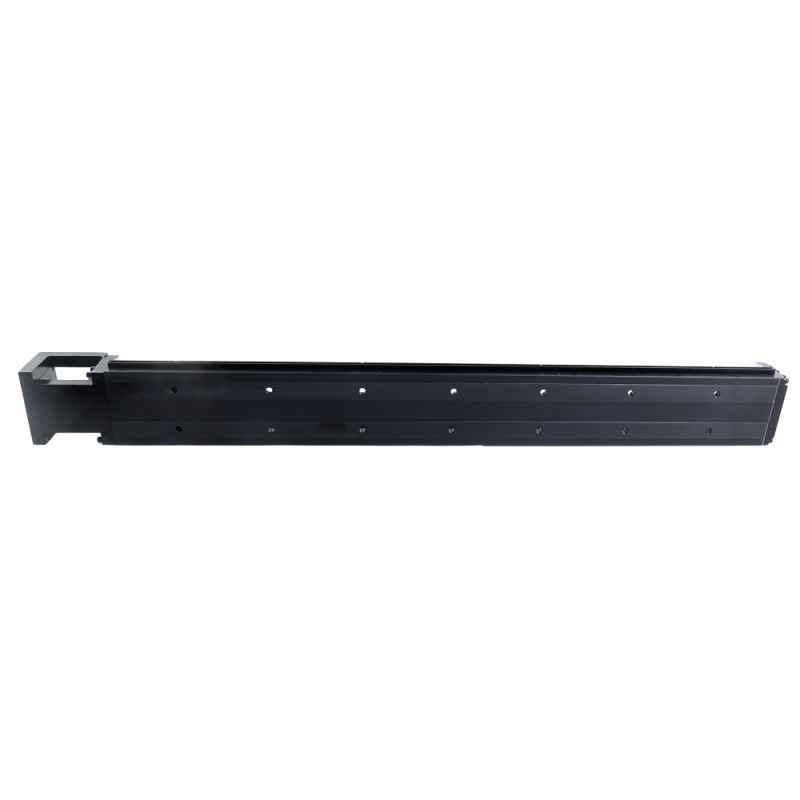

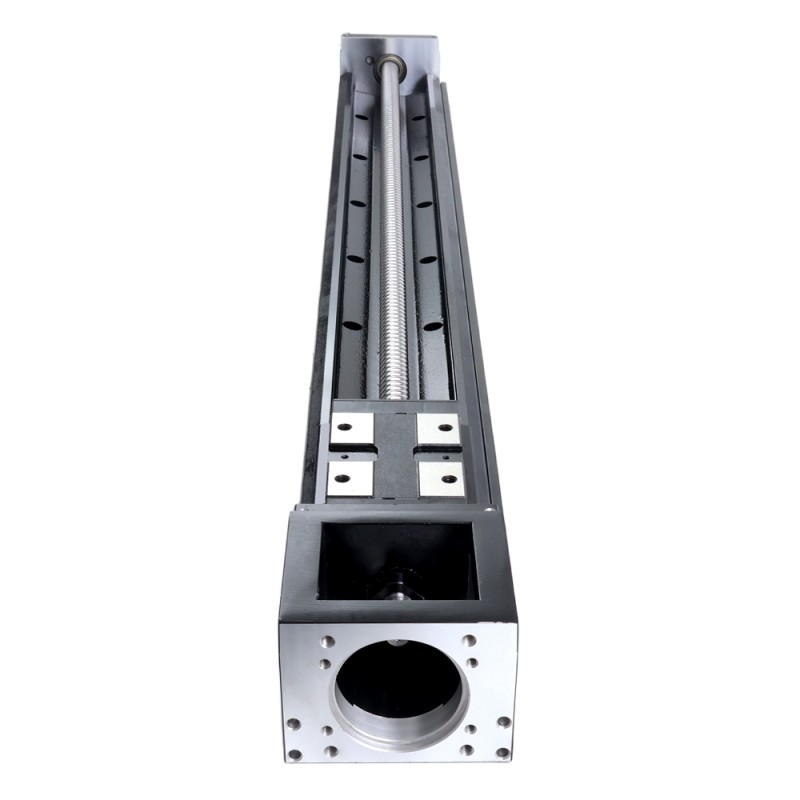

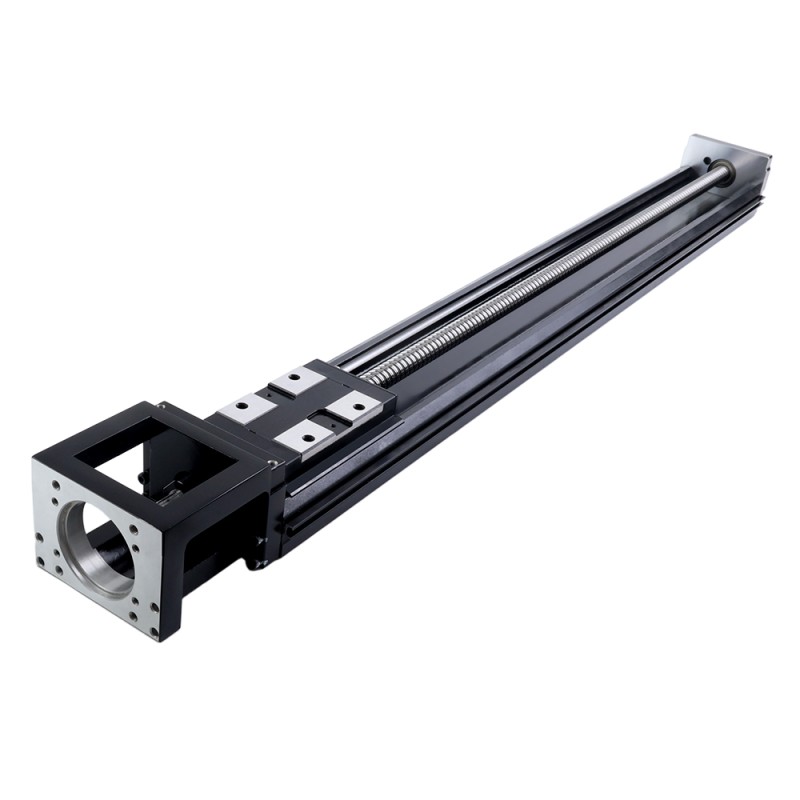

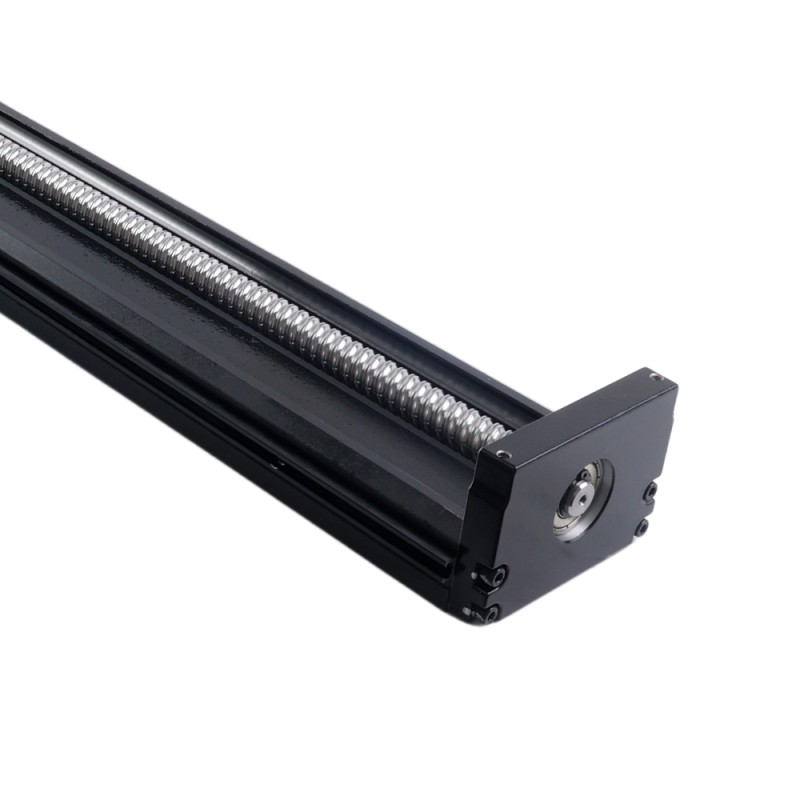

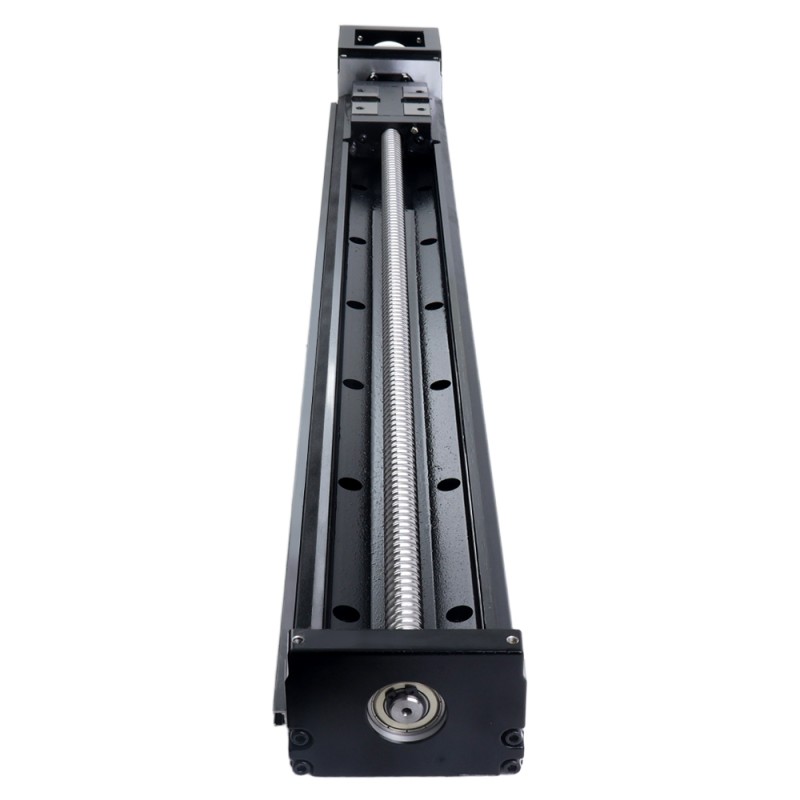

This LK2A86 series ball screw driven linear actuator offers a maximum horizontal payload of 40kg(88.18lb) and maximum vertical payload of 12kg(26.46lb), a stroke length of 616mm(2.02ft) and maximum speed of 460mm/s(1.51ft/s).

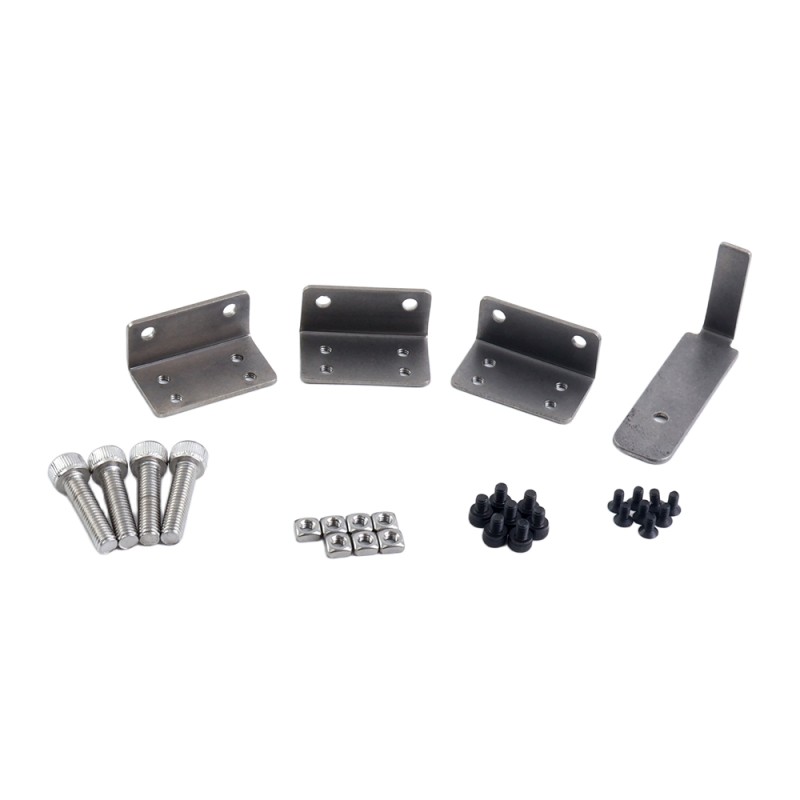

The LK2A series ball screw driven linear actuator adopts a stripped-down architecture that eliminates unnecessary components—such as sensors, protective covers, and couplings—resulting in a compact, lightweight design ideal for space-constrained automation. This streamlined approach reduces weight and installation footprint while delivering reliable linear motion with simplified assembly. To support application flexibility, it features sensor mounting rails, sensor fixing brackets, and light-blocking plates on the sliders. Engineered for applications demanding efficiency and economy, the LK2A provides dependable performance in high-cycle environments without the complexity of added hardware.

Specifications

  • Part Number: LK2A86-60DL10S0-616
  • Screw Type: Ball Screw
  • Stroke Length: 616mm(2.02ft)
  • Position Accuracy: ± 0.01mm
  • Ball Screw Lead: 10mm(0.0328ft)
  • Maximum Speed: 460mm/s(1.51ft/s)
  • Maximum Horizontal Payload: 40kg(88.18lb)
  • Maximum Vertical Payload: 12kg(26.46lb)
  • Rated Thrust: 694N
  • Ball Screw Grade: C7
  • Ball Screw Diameter: Φ15mm
  • Motor Frame: 60mm Servo Motor(400W)
Physical Specification
Lead(mm/ft) 10/0.0328
Linear Motor Type Steel Body
Max. Horizontal Payload(kg/lb) 40/88.18
Max. Speed(ft/s) 1.51
Max. Speed(mm/s) 460
Max. Vertical Payload(kg/lb) 12/26.46
Motor Mounting Flange 60mm Servo Motor
Motor Mounting Position Direct Connect
Rated Thrust(N) 694
Stroke Length(mm/ft) 616/2.02
Transmission Method Ball Screw Driven

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
10mm - 14mm Flexible Double Disc Coupling 44x50mm CNC Stepper Motor Shaft Coupler
10mm - 14mm Flexible Double Disc Coupling 44x50mm CNC Stepper Motor Shaft Coupler
Specification Part Number: MP4450-10-14 Type: Double Disc Rated Torque: 8.7Nm(1232.02oz.in) Max. Torque: 17.4Nm(2464.04oz.in) ..
from
C$19.05
Add to Cart
Add to Wish List Compare this Product
Quickview

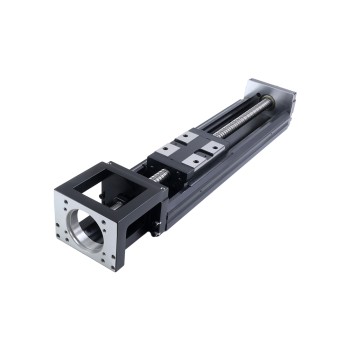

LK2A86 Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 42kg/12kg Stroke 216mm
