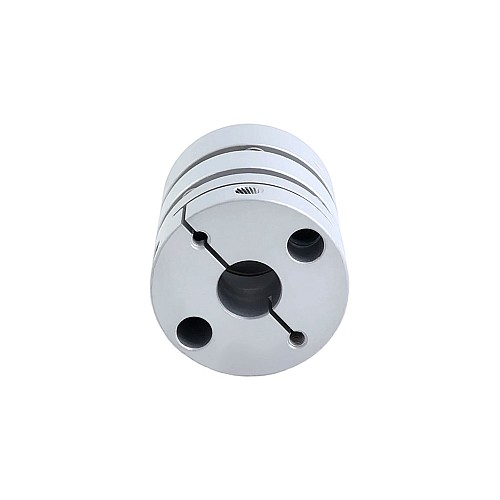

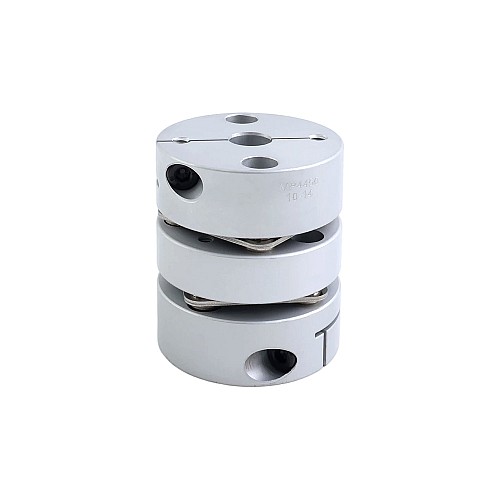

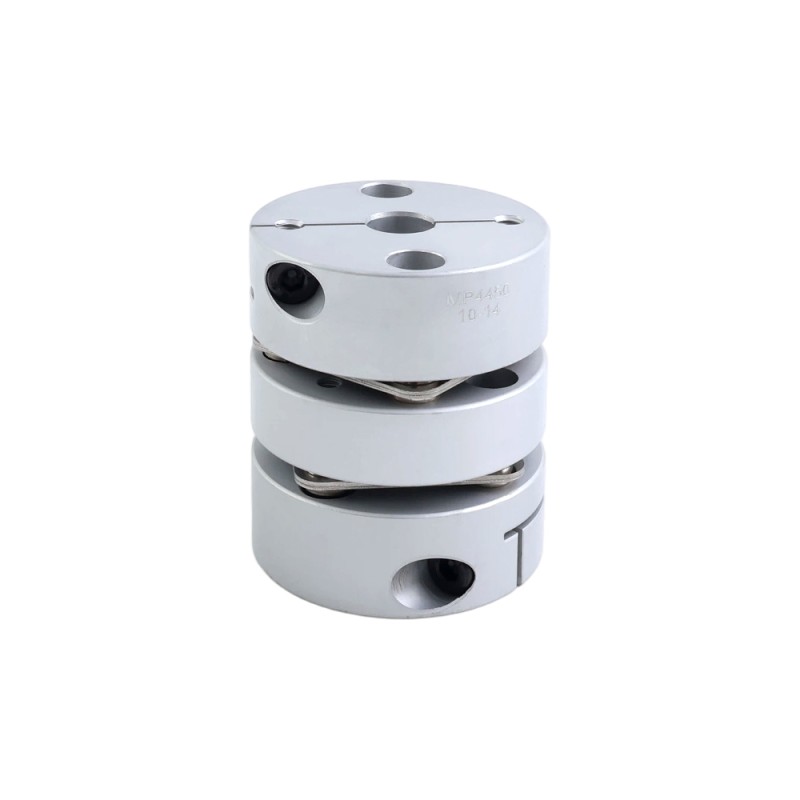

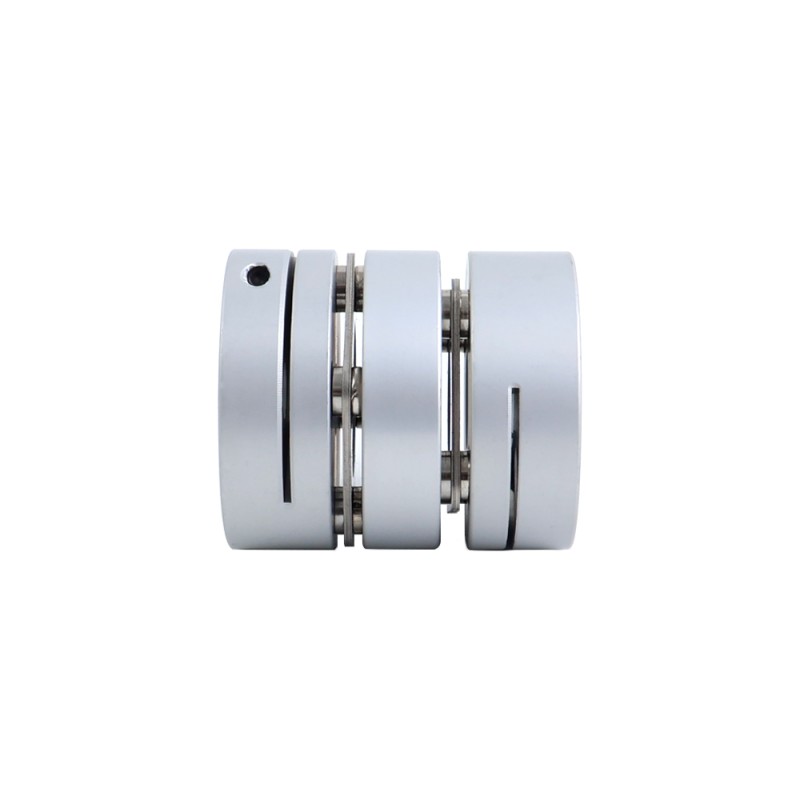

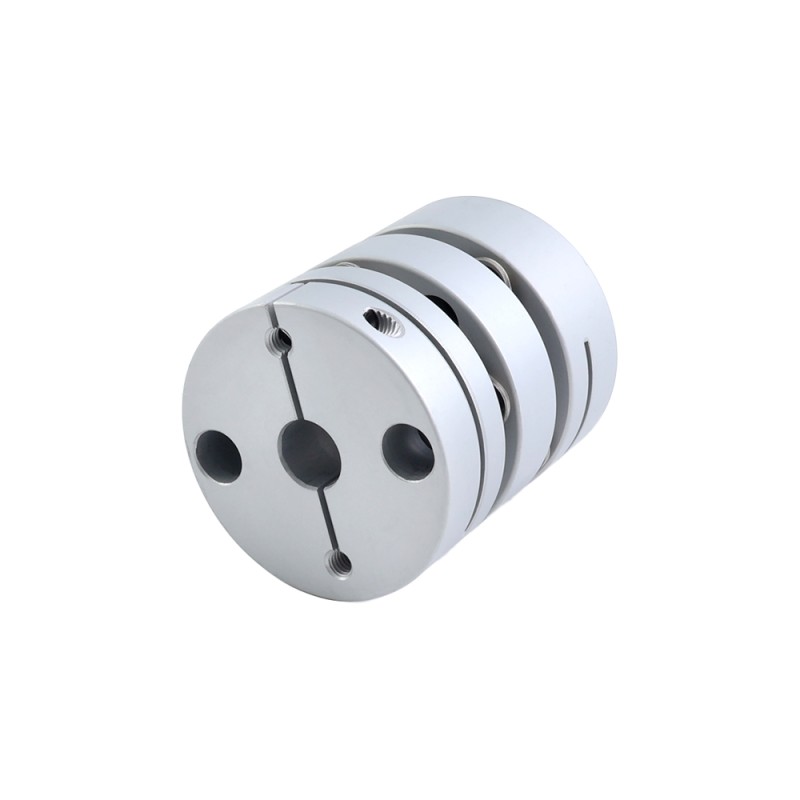

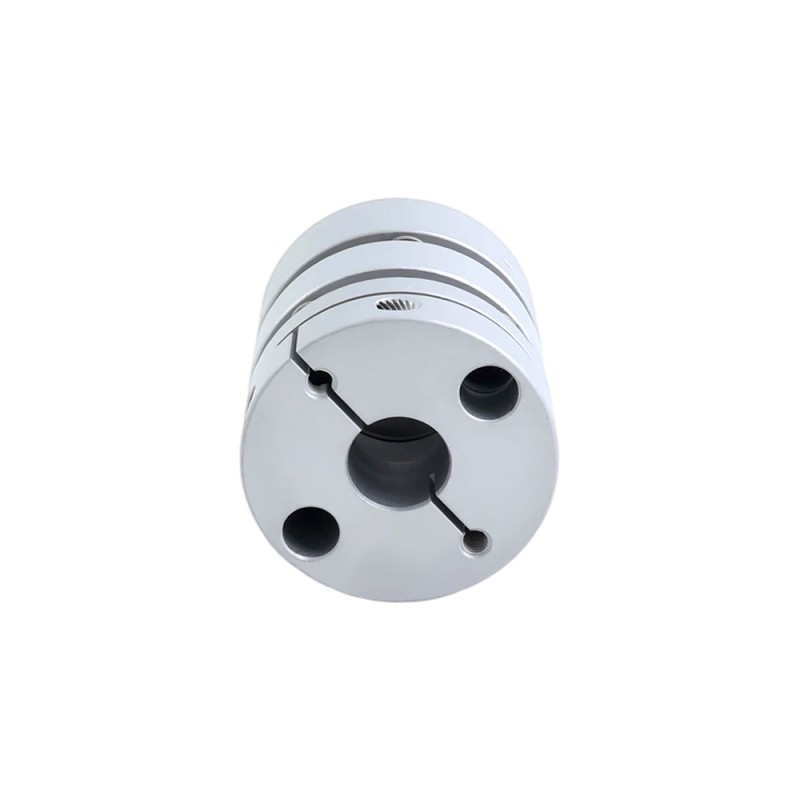

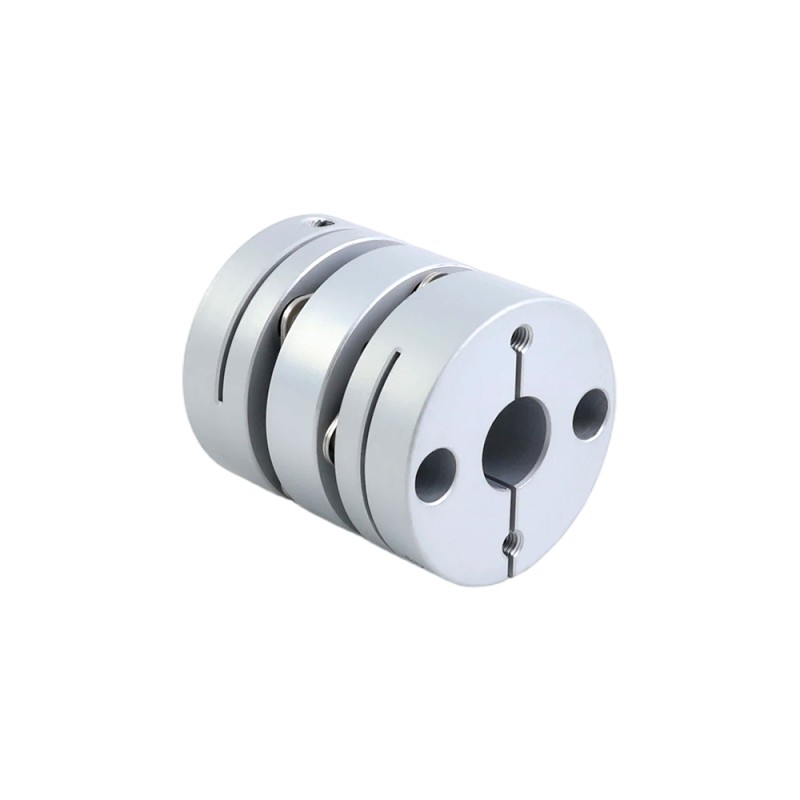

10mm - 14mm Flexible Double Disc Coupling 44x50mm CNC Stepper Motor Shaft Coupler

New

10mm - 14mm Flexible Double Disc Coupling 44x50mm CNC Stepper Motor Shaft Coupler

0 reviews - Write a review

C$19.05

5 + C$18.11

10 + C$17.26

50 + C$16.49

100 + C$15.78

In Stock: 200
Model: MP4450-10-14
Gross Weight: 0.21kg
Certificated: ISO

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Specification

Part Number: MP4450-10-14
Type: Double Disc
Rated Torque: 8.7Nm(1232.02oz.in)
Max. Torque: 17.4Nm(2464.04oz.in)
Max. Speed: 10000rpm
Static Torsional Spring Constant: 5100Nm/rad
Bore Diameter(d1-d2): 10mm - 14mm
Body Outside Diameter(D): 44mm
Body Length(L): 50mm
Material Type: Aluminum
Weight: 156g

Coupling Specification
Body Length(mm)	50
Coupling Type	Disc Shaft Coupling
Diameter(mm)	44
Matching Shaft Diameter(mm)	10 - 14
Physical Specification
Inventory Method	Dedicated Inventory

Bore Diameter
With Keyway/without keyway, other special-shaped hole
Overall Length
Material(45/304 stainless steel)
Outside Diameter

File	Size
MP4450-10-14.pdf	120.93KB	Download

Tags: Body Length(mm): 50, Matching Shaft Diameter(mm): 10 - 14, Diameter(mm): 44, Coupling Type: Disc Shaft Coupling, Inventory Method: Dedicated Inventory
