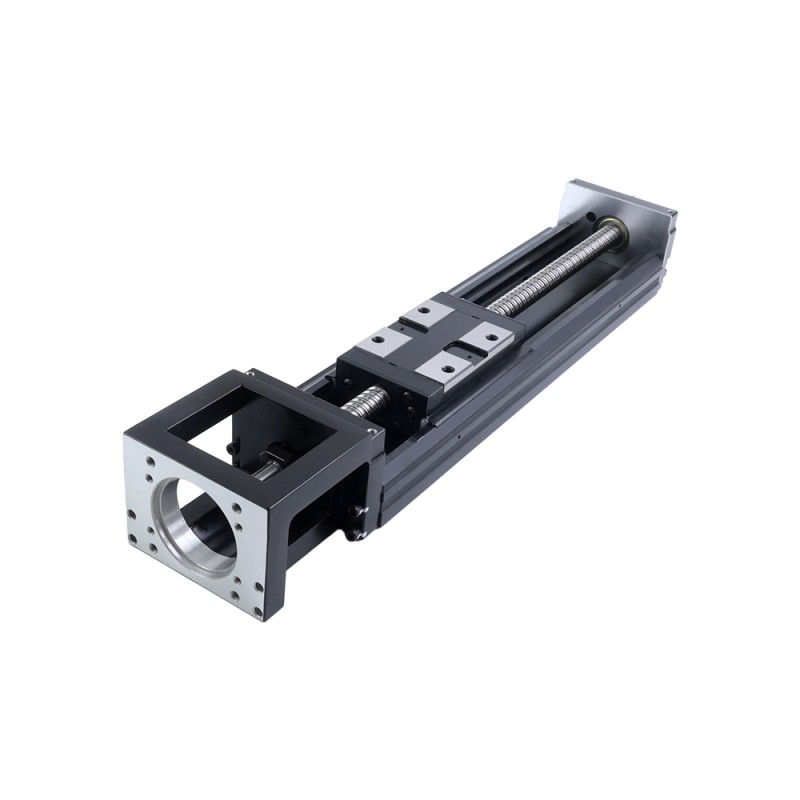

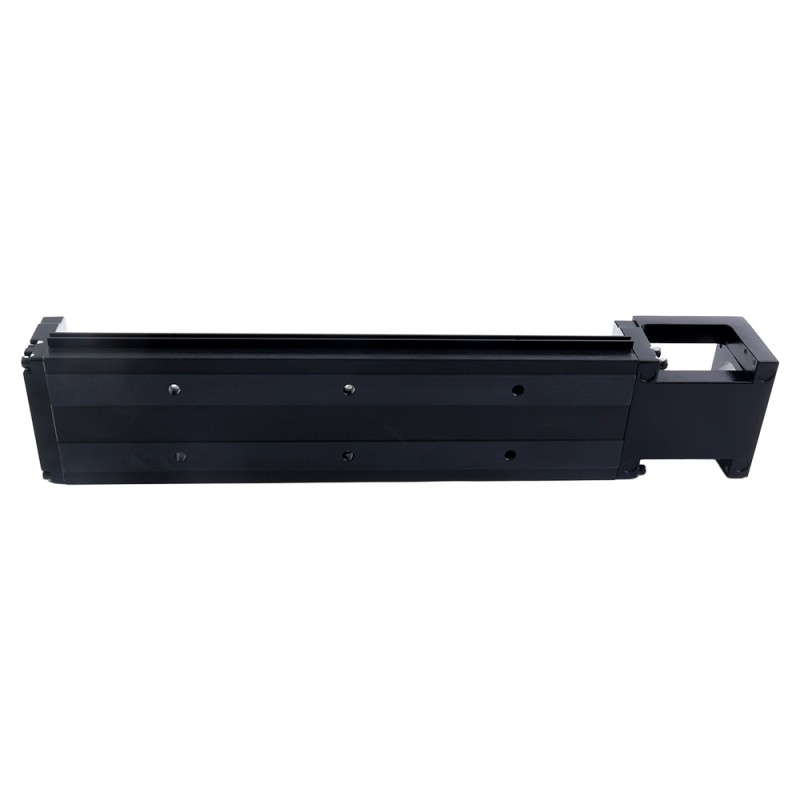

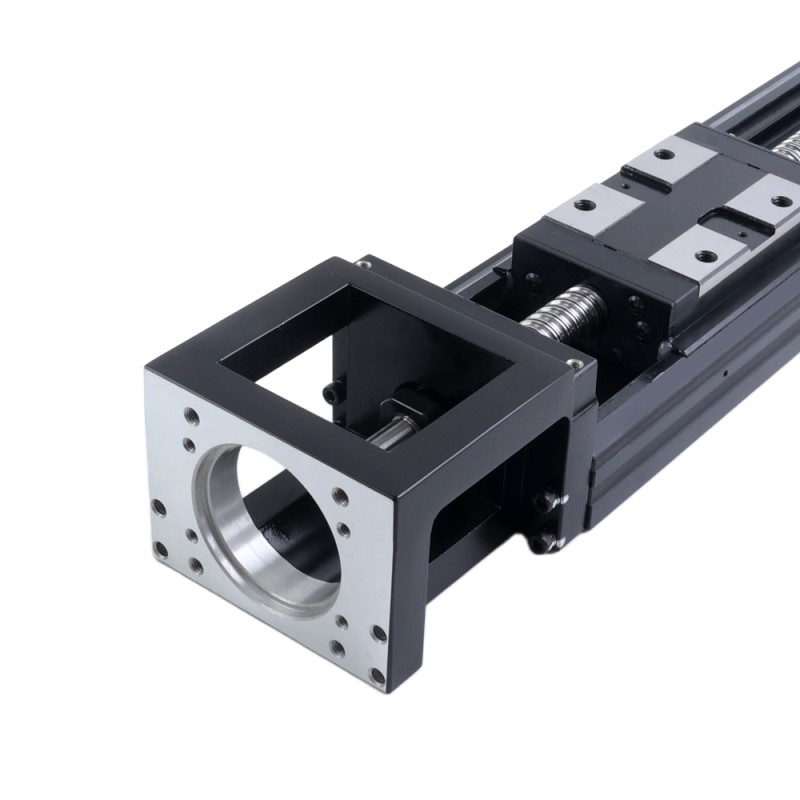

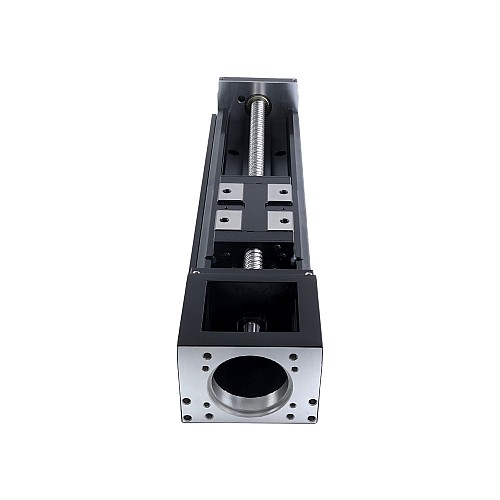

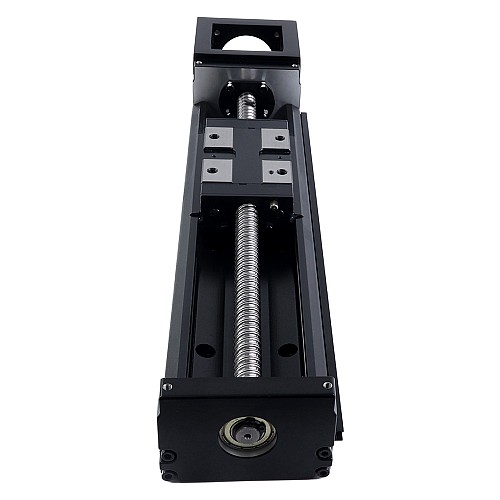

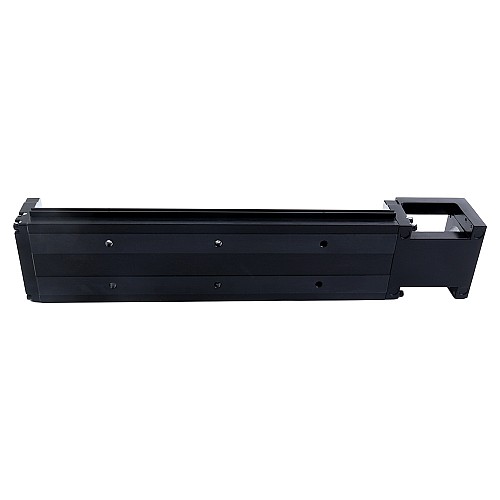

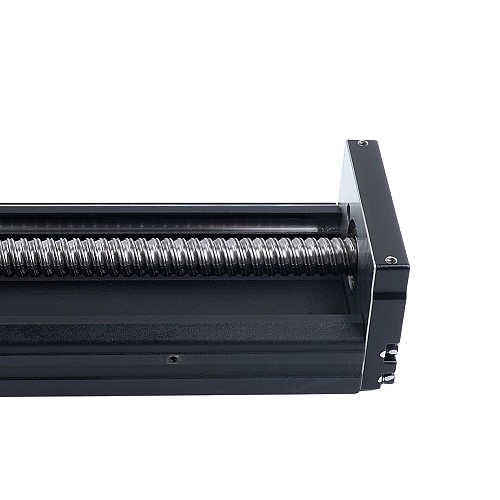

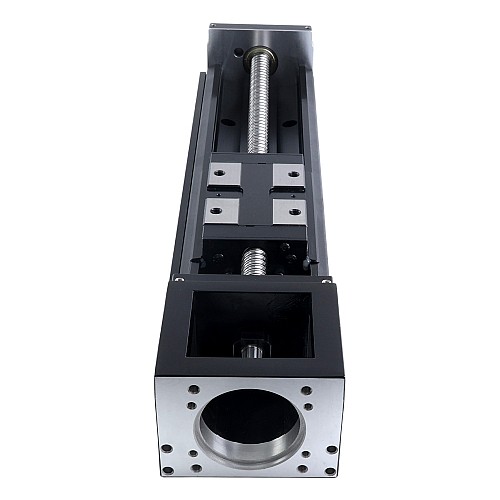

LK2A86 Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 42kg/12kg Stroke 216mm
This LK2A86 series ball screw driven linear actuator offers a maximum horizontal payload of 42kg... Read More
0 reviews • Write a review
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

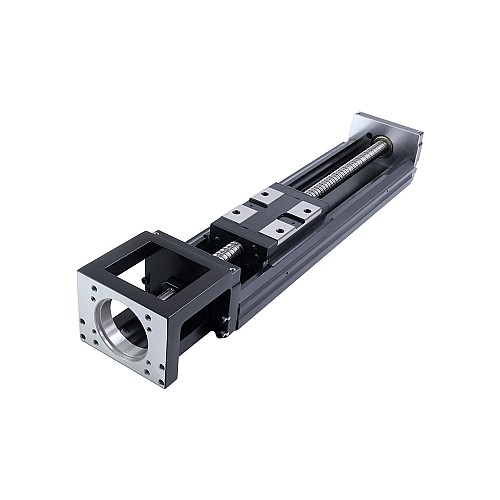

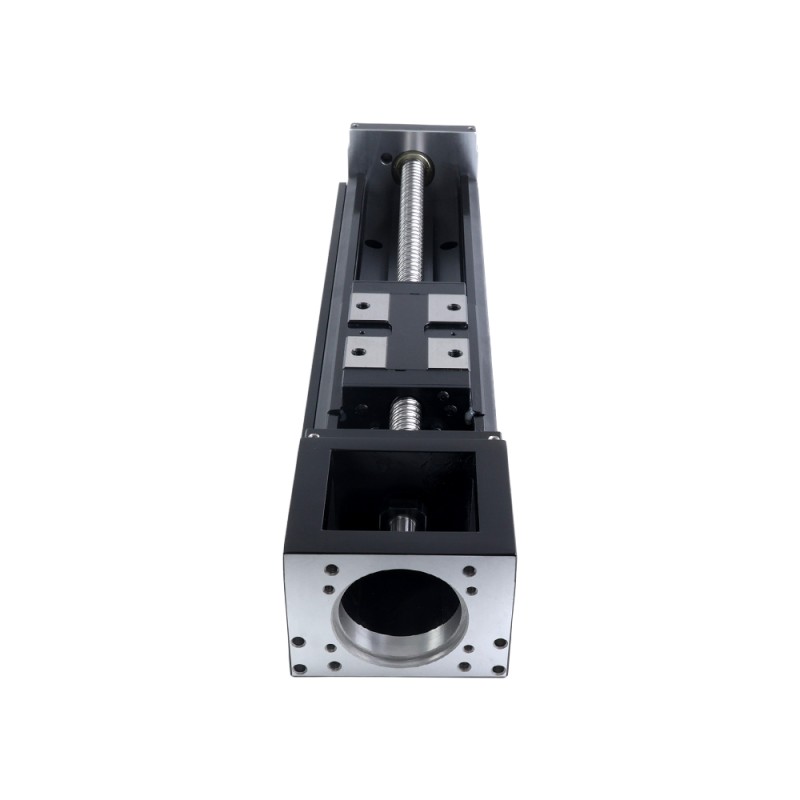

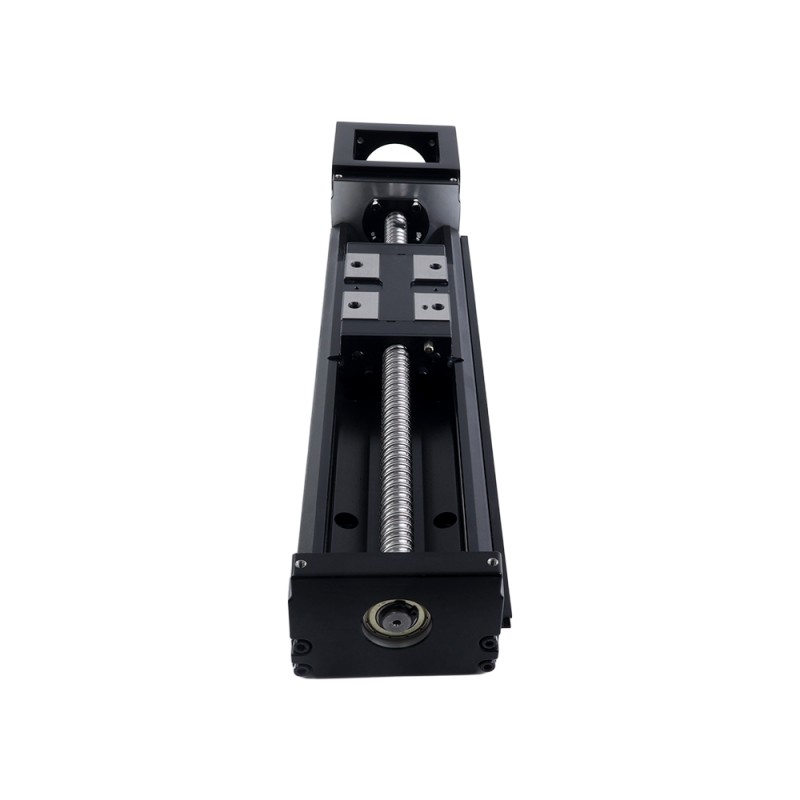

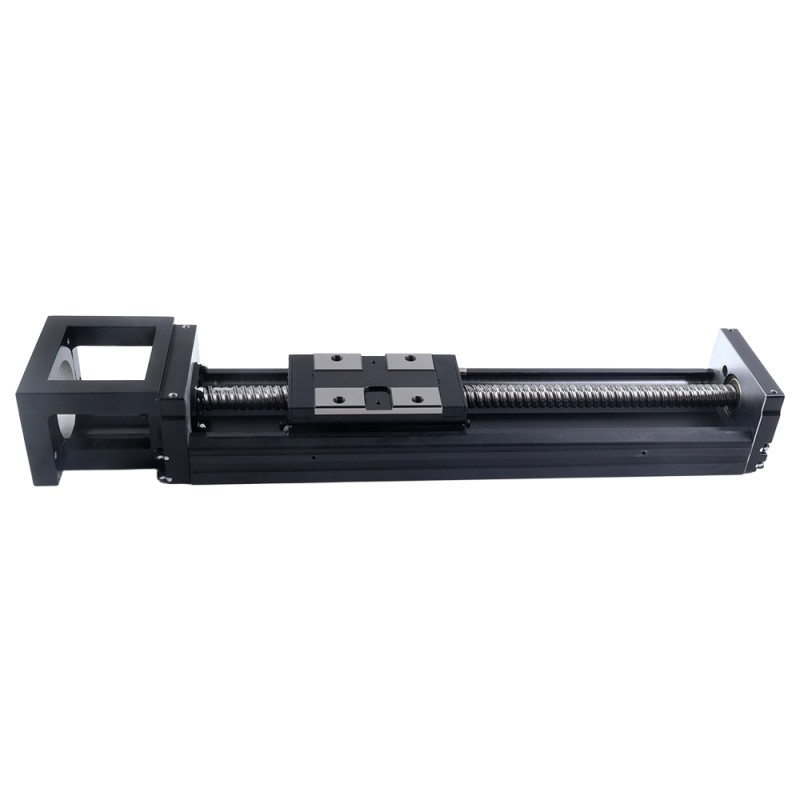

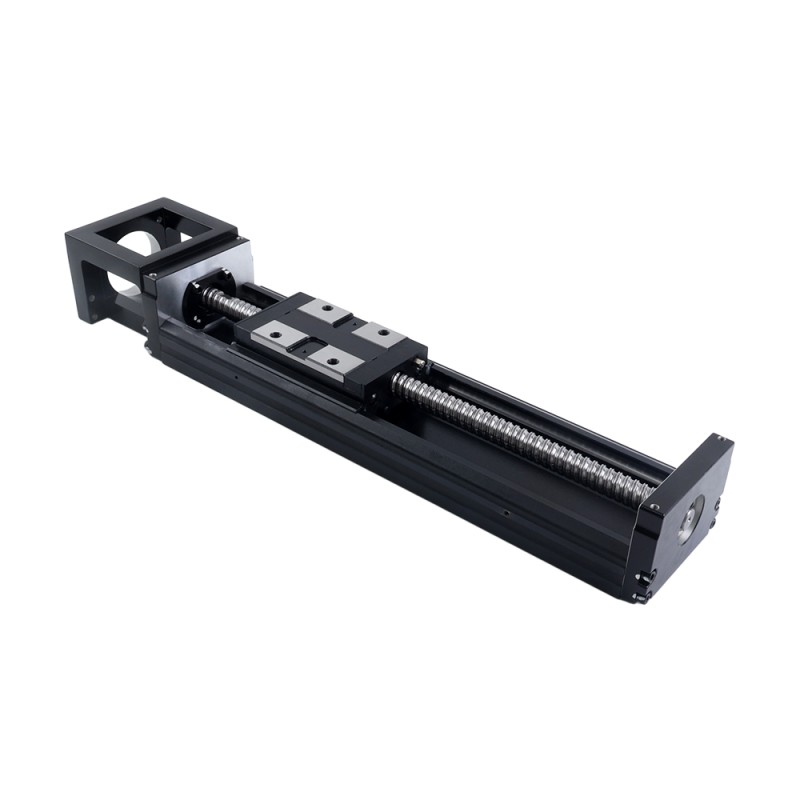

This LK2A86 series ball screw driven linear actuator offers a maximum horizontal payload of 42kg(92.59lb) and maximum vertical payload of 12kg(26.46lb), a stroke length of 216mm(0.71ft) and maximum speed of 800mm/s(2.62ft/s).

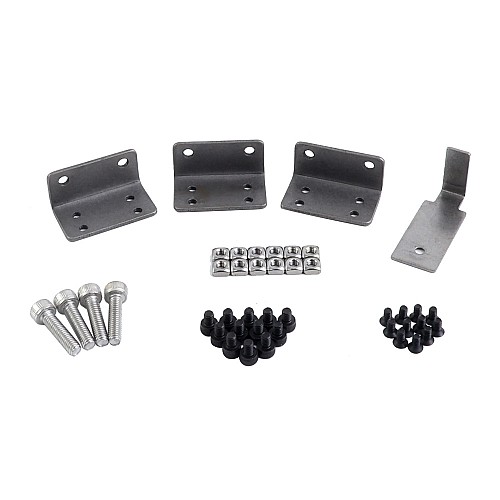

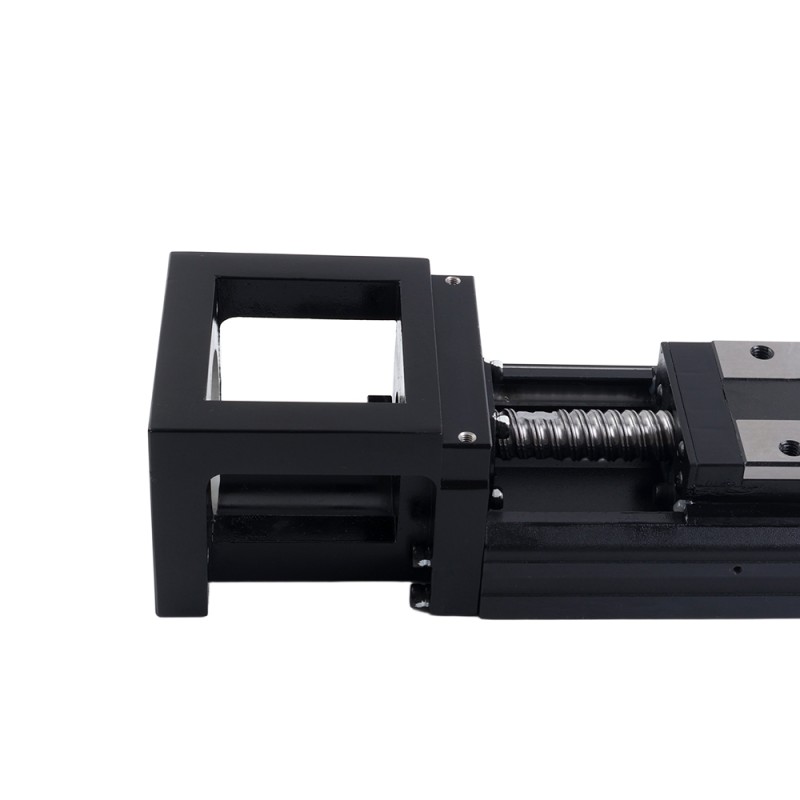

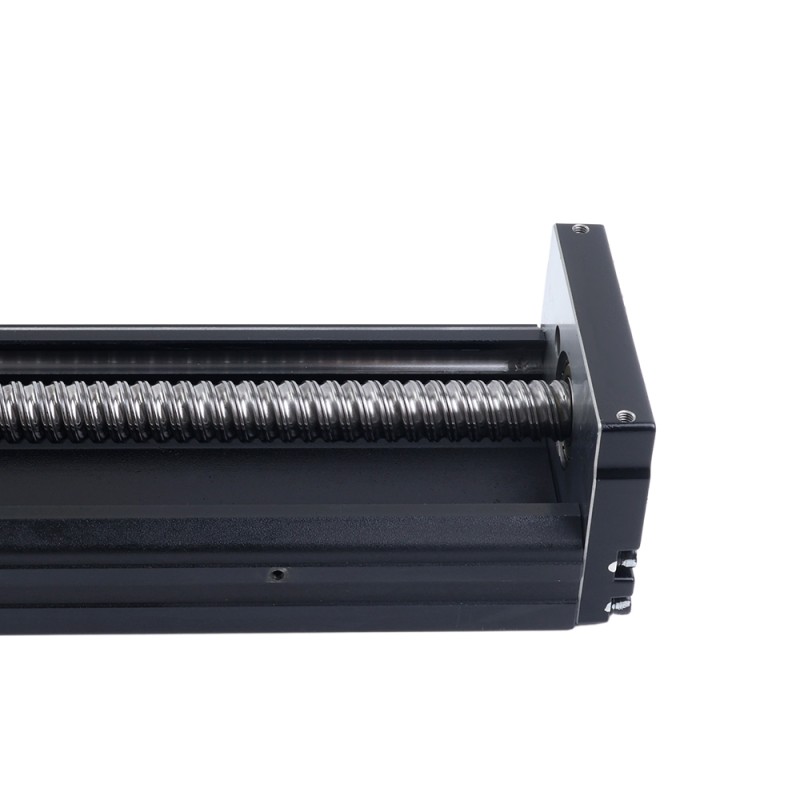

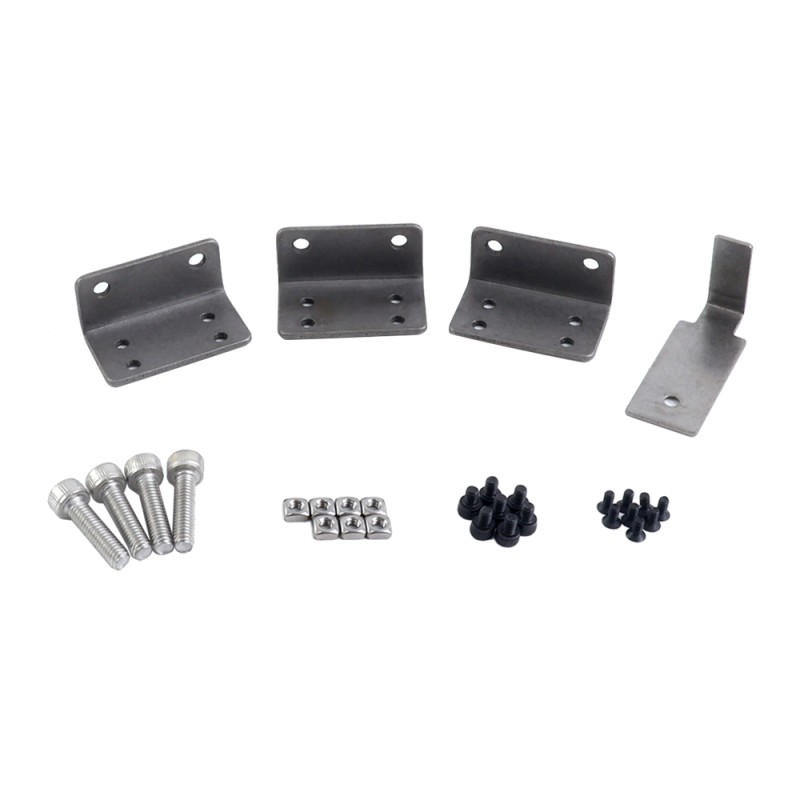

The LK2A series ball screw driven linear actuator adopts a stripped-down architecture that eliminates unnecessary components—such as sensors, protective covers, and couplings—resulting in a compact, lightweight design ideal for space-constrained automation. This streamlined approach reduces weight and installation footprint while delivering reliable linear motion with simplified assembly. To support application flexibility, it features sensor mounting rails, sensor fixing brackets, and light-blocking plates on the sliders. Engineered for applications demanding efficiency and economy, the LK2A provides dependable performance in high-cycle environments without the complexity of added hardware.

Specifications

  • Part Number: LK2A86-60DL10S0-216
  • Screw Type: Ball Screw
  • Stroke Length: 216mm(0.71ft)
  • Position Accuracy: ± 0.01mm
  • Ball Screw Lead: 10mm(0.0328ft)
  • Maximum Speed: 800mm/s(2.62ft/s)
  • Maximum Horizontal Payload: 42kg(92.59lb)
  • Maximum Vertical Payload: 12kg(26.46lb)
  • Rated Thrust: 694N
  • Ball Screw Grade: C7
  • Ball Screw Diameter: Φ15mm
  • Motor Frame: 60mm Servo Motor(400W)
Physical Specification
Lead(mm/ft) 10/0.0328
Linear Motor Type Steel Body
Max. Horizontal Payload(kg/lb) 42/92.59
Max. Speed(ft/s) 2.62
Max. Speed(mm/s) 800
Max. Vertical Payload(kg/lb) 12/26.46
Motor Mounting Flange 60mm Servo Motor
Motor Mounting Position Direct Connect
Rated Thrust(N) 694
Stroke Length(mm/ft) 216/0.71
Transmission Method Ball Screw Driven

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

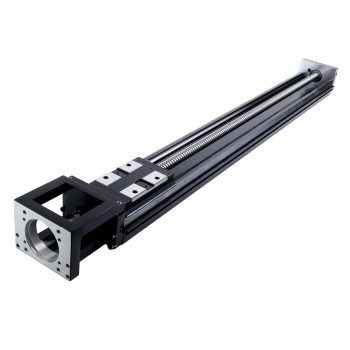

LK2A86 Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 40kg/12kg Stroke 616mm
