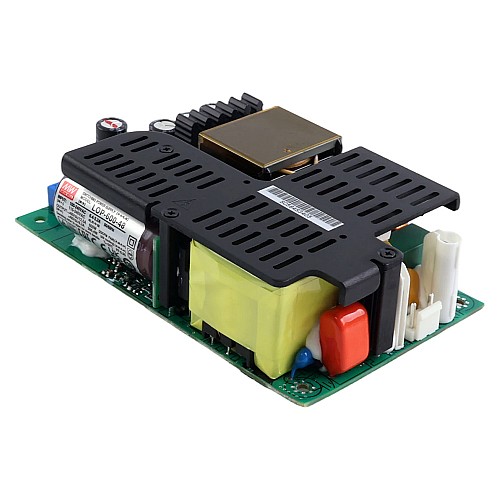

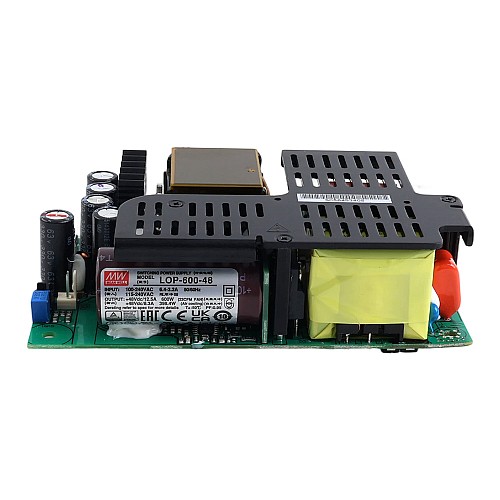

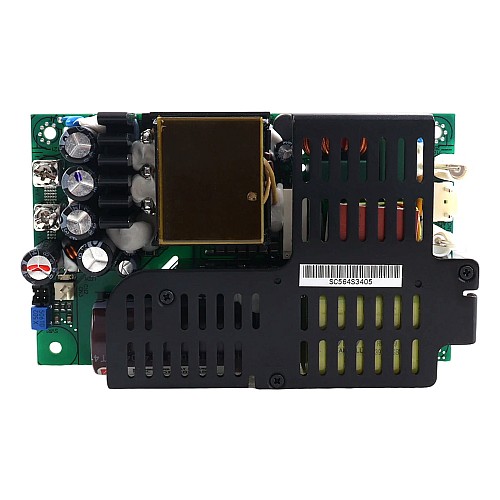

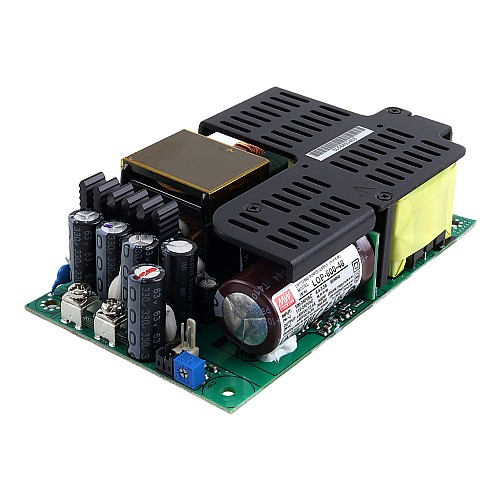

LOP-600-48 MEANWELL 600W 48VDC 12.5A 115/230VAC Single Output With Remote Sense

Features

• Brand MEANWELL
• 48VDC 12.5A output
• Rated power: 600W
• AC input voltage range: 115 ~ 230VAC
• 150% Peak load @3s
• Built-in active PFC function
• High efficiency up to 95%
• BuiIt-in 12V/0.5A for externaI FAN
• 400W convection, 600W with FAN 23CFM forced-cooled
• BuiIt-in remote sense, operating altitude up to 5000 meters
• 80 ~ 264VAC input with PFC, No Ioad power consumption<0.5w
• Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Suitable for Class I or Class II installations
• Global certificates in multi-fields(ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-2-16)
• -40 ~ +80℃ wide range operation temperature
• 3 years warranty

Applications

• Security system
• Medical devices
• Home automation
• Telecom equipments
• Power sourcing equipment of PoE
• Mechanical and electrical equipment
• Industrial automation machinery/control system
• Electronic instruments,equipments or apparatus
