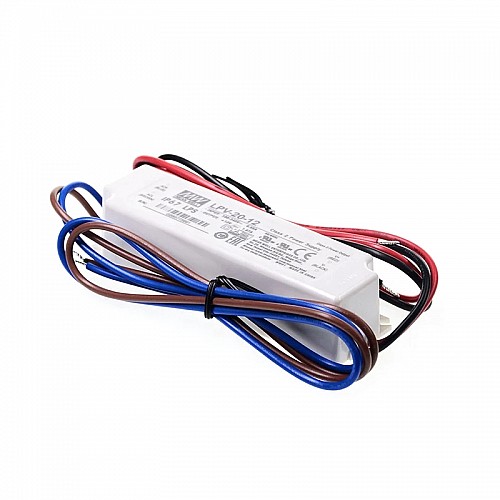

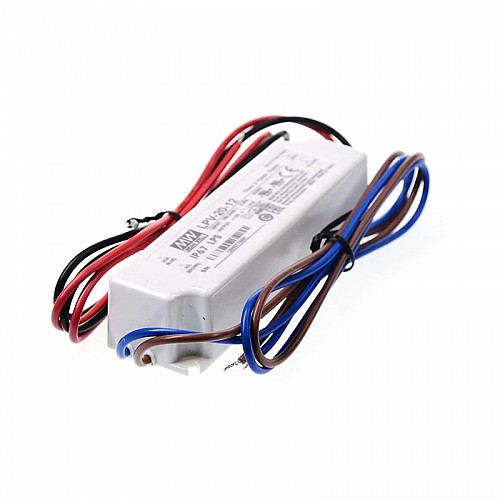

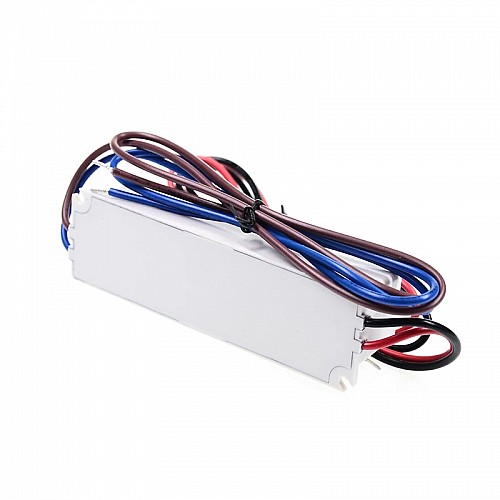

Name: LPV-20-12 | LPV-20-12 MEANWELL 20W 1.67A 12V Single Output Switching Power Supply | StepperOnline CA
Brand: MEANWELL
SKU: LPV-20-12
Price: 12.34 CAD
Availability: PreOrder

LPV-20-12 MEANWELL 20W 1.67A 12V Single Output Switching Power Supply

0 reviews - Write a review

C$12.34

5 + C$11.99

10 + C$11.65

50 + C$11.32

100 + C$11.03

In Stock: Pre-order
Brand: MEANWELL
Model: LPV-20-12
Gross Weight: 0.22kg
Certificated: ISO, CE, RoHS

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Features

Brand MEANWELL
12V DC 1.67A output
AC input voltage range: 90 ~ 264VAC
Rated power: 20W
Constant voltage design
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Small and compact size
Fully encapsulated with IP67 level(Note.7)
Fully isolated plastic case
Class Ⅱ power unit, no FG
Class 2 power unit
Pass LPS
Suitable for LED related fixture or appliance
100% full load burn-in test
Low cost, high reliability
2 years warranty

Electrical Specification
Efficiency(%)	81%
Max. Output Current(A)	1.67
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	118 x 35 x 26
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	90 - 264 / 127 - 370
Output Voltage(VDC)	12
PFC Function	No
Power Type	Switching Power Supply
Power(W)	20
Physical Specification
Inventory Method	Shared Inventory
