Name: MDR-10-12 | MDR-10-12 MEANWELL 10W 12VDC 0.84A 115/230VAC Single Output Industrial DIN Rail Power Supply | StepperOnline CA
Brand: MEANWELL
SKU: MDR-10-12
Price: 17.64 CAD
Availability: PreOrder

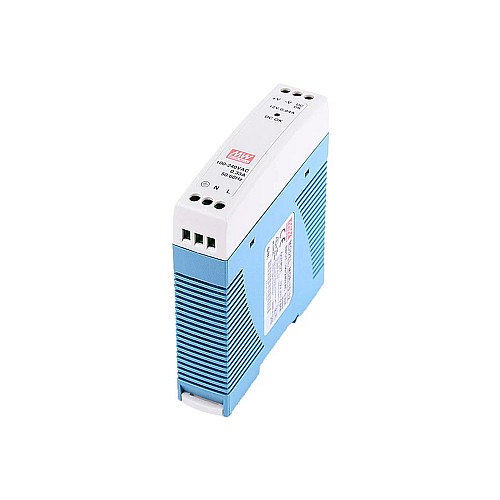

MDR-10-12 MEANWELL 10W 12VDC 0.84A 115/230VAC Single Output Industrial DIN Rail Power Supply

0 reviews - Write a review

C$17.64

5 + C$17.12

10 + C$16.64

50 + C$16.18

100 + C$15.75

In Stock: Pre-order
Brand: MEANWELL
Model: MDR-10-12
Gross Weight: 0.15kg
Certificated: ISO, CE, RoHS

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Features

Brand MEANWELL
12V DC 0.84A output
AC input voltage range: 85 ~ 264VAC
Rated power: 10W
Universal AC input/Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection

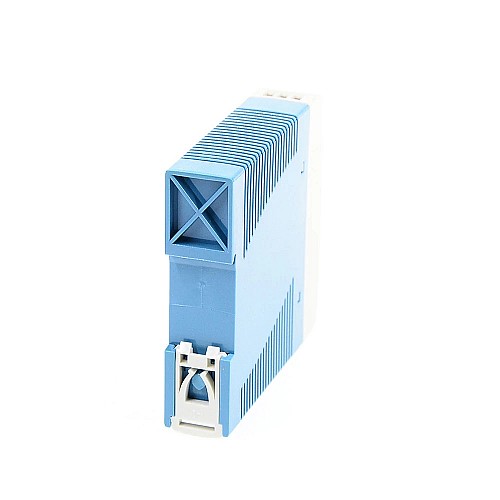

Can be installed on DIN rail TS-35/7.5 or 15
Built in DC OK active signal
LED indicator for power on
No load power consumption<0.75W
100% full load burn-in test
3 years warranty

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances

Electrical Specification
Efficiency(%)	81%
Max. Output Current(A)	0.84
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	22.5 x 90 x 100
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	85 - 264 / 120 - 370
Output Voltage(VDC)	12
PFC Function	No
Power Type	DIN Rail Power Supply
Power(W)	10
Physical Specification
Inventory Method	Shared Inventory
