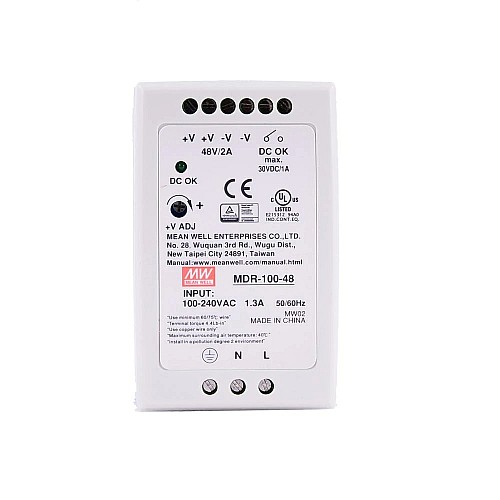

MDR-100-48 MEANWELL 96W 48VDC 2A 115/230VAC Single Output Industrial DIN Rail Power Supply
C$49.68
5 + C$48.23
10 + C$46.86
50 + C$45.57
100 + C$44.34
- In Stock: Pre-order
- Brand: MEANWELL
- Model: MDR-100-48
- Gross Weight: 0.42kg
- Certificated: ISO, CE, RoHS
Sold: 0
Click country for real-time stock
What Does Pre-order Mean?
A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.
Features
- Brand MEANWELL
- 48V DC 2A output
- AC input voltage range: 85 ~ 264VAC
- Rated power: 96W
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- ZCS/ZVS technology to reduce power dissipation
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- DC OK relay contact
- No load power consumption<1W
- LED indicator for power on
- 100% full load burn-in test
- 3 years warranty
Applications
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipments or apparatus
- Household appliances
Electrical Specification | |
Efficiency(%) | 87% |
Max. Output Current(A) | 2 |
Power Supply Specification | |
Brand | MEANWELL |
Dim.(LxWxH)(mm) | 55 x 90 x 100 |
Input Frequency(Hz) | 47 - 63 |
Input Voltage(VAC/VDC) | 85 - 264 / 120 - 370 |
Output Voltage(VDC) | 48 |
PFC Function | Yes |
Power Type | DIN Rail Power Supply |
Power(W) | 96 |
Physical Specification | |
Inventory Method | Shared Inventory |
File | Size | |
---|---|---|
MDR-100.pdf | 863.67KB | Download |
