Name: MDR-100-12 | MDR-100-12 MEANWELL 100W 12VDC 7.5A 115/230VAC DIN Rail Power Supply | StepperOnline CA
Brand: MEANWELL
SKU: MDR-100-12
Price: 37.33 CAD
Availability: InStock

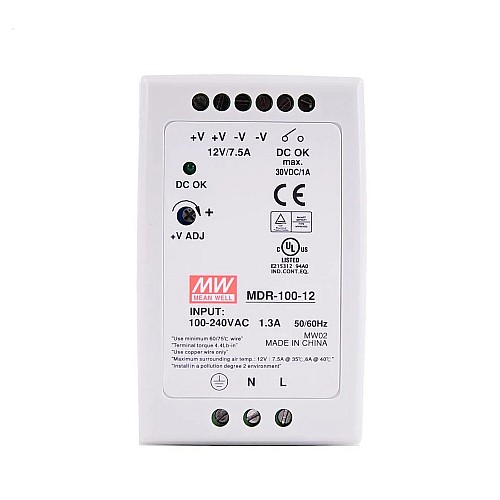

MDR-100-12 MEANWELL 100W 12VDC 7.5A 115/230VAC DIN Rail Power Supply

0 reviews - Write a review

C$37.33

5 + C$36.25

10 + C$35.21

50 + C$34.25

100 + C$33.33

In Stock: 10000
Brand: MEANWELL
Model: MDR-100-12
Gross Weight: 0.60kg
Certificated: ISO, CE

Sold: 8

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Features

Brand MEANWELL
12V DC 7.5A output
AC input voltage range: 85 ~ 264VAC
Rated power: 90W
Universal AC input/Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
ZCS/ZVS technology to reduce power dissipation
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
DC OK relay contact
No load power consumption<1W
LED indicator for power on
100% full load burn-in test
3 years warranty

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances

Product Type
Product Type	DIN Rail Power Supply
Electrical Specification
Efficiency(%)	83%
Max. Output Current(A)	7.5
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	55 x 90 x 100 / 2.17 x 3.54 x 3.94
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	85 - 264 / 120 - 370
Output Voltage(VDC)	12
PFC Function	No
Power(W)	90
Physical Specification
Inventory Method	Dedicated Inventory
