Name: MDR-60-12 | MDR-60-12 MEANWELL 60W 12VDC 5A 115/230VAC DIN Rail Power Supply | StepperOnline CA
Brand: MEANWELL
SKU: MDR-60-12
Price: 20.87 CAD
Availability: InStock

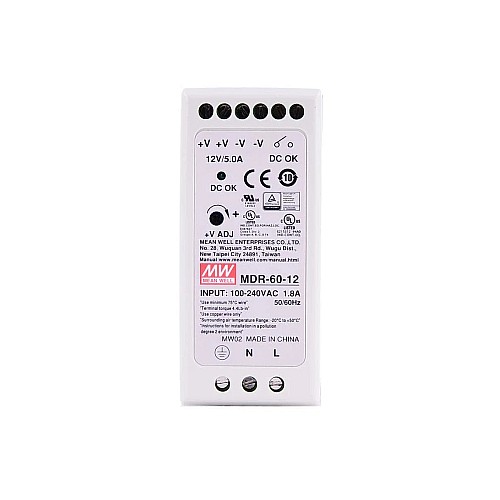

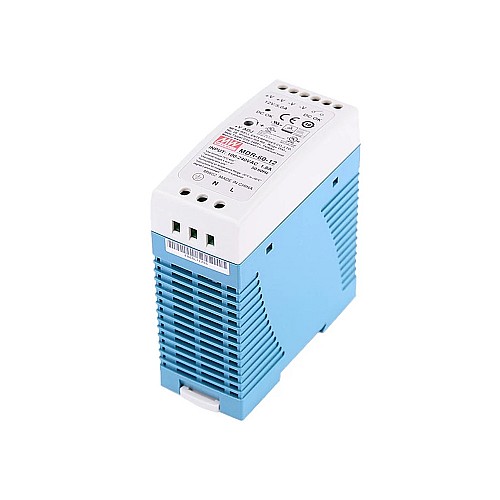

MDR-60-12 MEANWELL 60W 12VDC 5A 115/230VAC DIN Rail Power Supply

0 reviews - Write a review

C$20.87

5 + C$20.26

10 + C$19.68

50 + C$19.15

100 + C$18.63

In Stock: 10000
Brand: MEANWELL
Model: MDR-60-12
Gross Weight: 0.38kg
Certificated: ISO, CE

Sold: 62

Click country for real-time stock

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Features

Brand MEANWELL
12V DC 5A output
AC input voltage range: 85 ~ 264VAC
Rated power: 60W
Universal AC input/Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Class I, Div 2 Hazardous Locations T4
LED indicator for power on
DC OK relay contact
No load power consumption<0.75W
100% full load burn-in test
3 years warranty

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances

Electrical Specification
Efficiency(%)	86%
Max. Output Current(A)	5
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	40 x 90 x 100 / 1.57 x 3.54 x 3.94
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	85 - 264 / 120 - 370
Output Voltage(VDC)	12
Power Type	DIN Rail Power Supply
Power(W)	60
Physical Specification
Inventory Method	Dedicated Inventory
