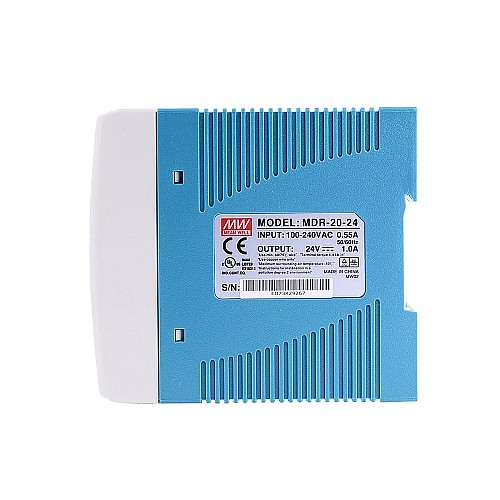

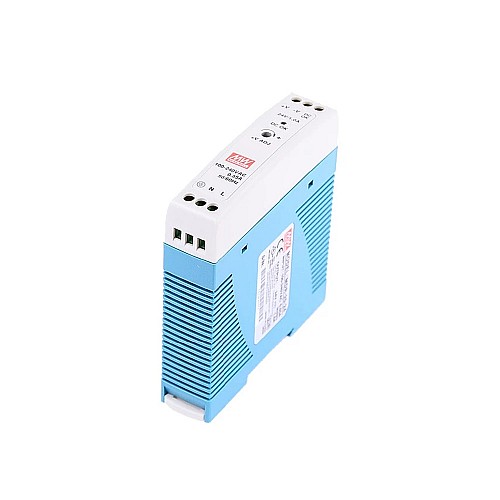

Name: MDR-20-24 | MDR-20-24 MEANWELL 20W 24VDC 1A 115/230VAC DIN Rail Power Supply | StepperOnline CA
Brand: MEANWELL
SKU: MDR-20-24
Price: 14.4 CAD
Availability: InStock

MDR-20-24 MEANWELL 20W 24VDC 1A 115/230VAC DIN Rail Power Supply

0 reviews - Write a review

C$14.40

5 + C$13.99

10 + C$13.59

50 + C$13.22

100 + C$12.86

In Stock: 10000
Brand: MEANWELL
Model: MDR-20-24
Gross Weight: 0.24kg
Certificated: ISO, CE

Available Options

Ships from

China

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Features

Brand MEANWELL
24V DC 1A output
AC input voltage range: 85 ~ 264VAC
Rated power: 24W
Universal AC input/Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Built in DC OK active signal
LED indicator for power on
No load power consumption<0.75W
100% full load burn-in test
3 years warranty

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances

Product Type
Product Type	Power Supply
Electrical Specification
Efficiency(%)	84%
Max. Output Current(A)	1
Power Supply Specification
Dim.(LxWxH)(mm)	22.5 x 90 x 100 / 0.89 x 3.54 x 3.94
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	85 - 264 / 120 - 370
Output Voltage(VDC)	24
PFC Function	No
Power(W)	24
Physical Specification
Inventory Method	Dedicated Inventory
