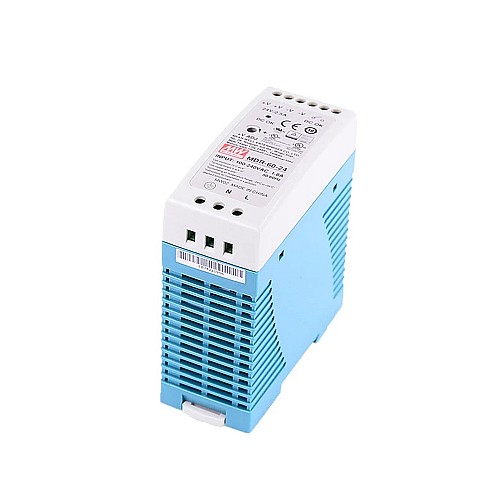

MDR-60-24 MEANWELL 60W 24VDC 2.5A 115/230VAC DIN Rail Power Supply

MDR-60-24 MEANWELL 60W 24VDC 2.5A 115/230VAC DIN Rail Power Supply - MDR-60-24 | StepperOnline CA
MDR-60-24 MEANWELL 60W 24VDC 2.5A 115/230VAC DIN Rail Power Supply - MDR-60-24 | StepperOnline CA
MDR-60-24 MEANWELL 60W 24VDC 2.5A 115/230VAC DIN Rail Power Supply - MDR-60-24 | StepperOnline CA
MDR-60-24 MEANWELL 60W 24VDC 2.5A 115/230VAC DIN Rail Power Supply - MDR-60-24 | StepperOnline CA
MDR-60-24 MEANWELL 60W 24VDC 2.5A 115/230VAC DIN Rail Power Supply
0 reviews - Write a review
$14.10
5 + $13.69
10 + $13.30
50 + $12.94
100 + $12.59
  • In Stock: 10000
  • Brand: MEANWELL
  • Model: MDR-60-24
  • Gross Weight: 0.37kg
  • Certificated: ISO, CE
Sold: 304

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Features

  • Brand MEANWELL
  • 24V DC 2.5A output
  • AC input voltage range: 85 ~ 264VAC
  • Rated power: 60W
  • Universal AC input/Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • Class I, Div 2 Hazardous Locations T4
  • LED indicator for power on
  • DC OK relay contact
  • No load power consumption<0.75W
  • 100% full load burn-in test
  • 3 years warranty

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipments or apparatus
  • Household appliances
Product Type
Product Type DIN Rail Power Supply
Electrical Specification
Efficiency(%) 88%
Max. Output Current(A) 2.5
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 40 x 90 x 100 / 1.57 x 3.54 x 3.94
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 85 - 264 / 120 - 370
Output Voltage(VDC) 24
PFC Function No
Power(W) 60
Physical Specification
Inventory Method Dedicated Inventory
File Size
MDR-60.pdf 752.04KB Download
