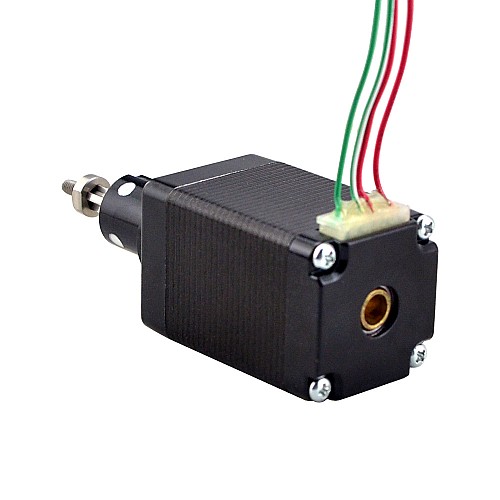

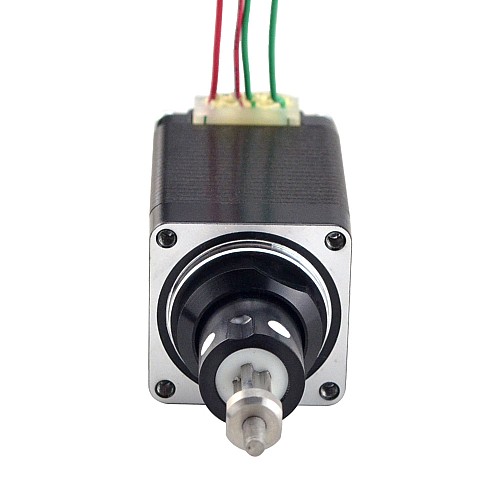

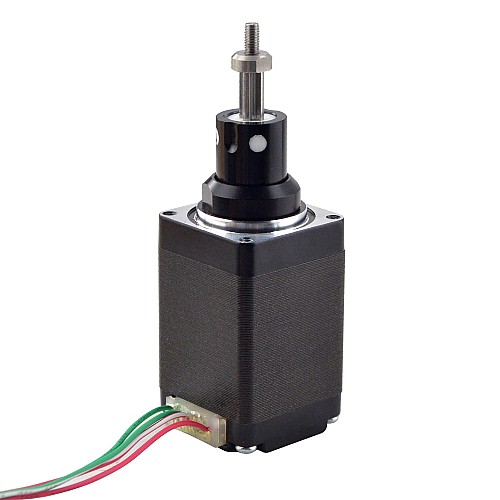

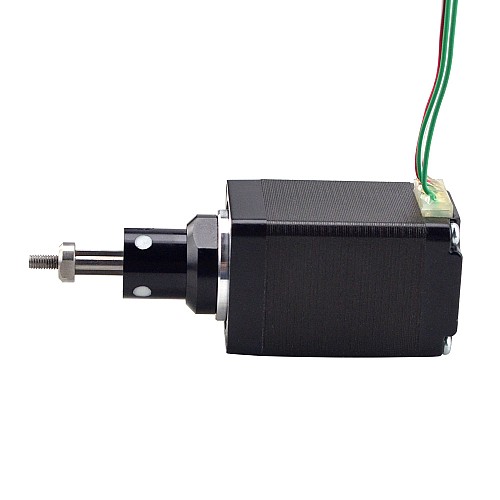

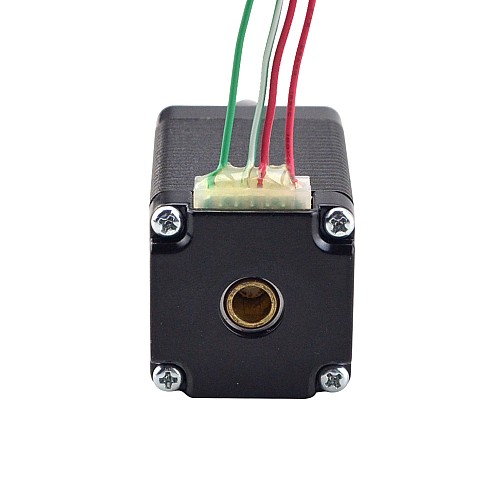

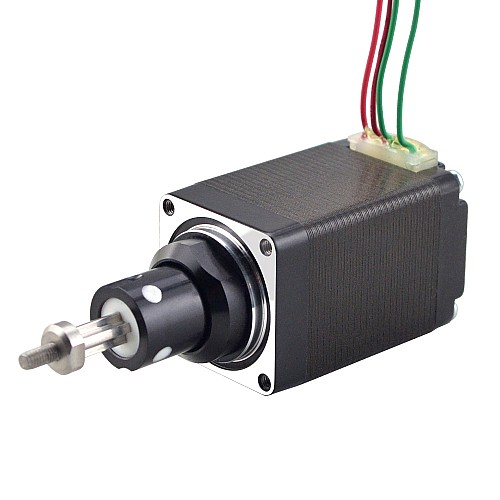

Nema 11 Captive 46mm Stack 0.35A Lead 0.635mm(0.025") Travel 12.7mm

Discontinued

Nema 11 Captive 46mm Stack 0.35A Lead 0.635mm(0.025") Travel 12.7mm

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 11C13S0754ED3-013RS
Gross Weight: 0.30kg
Certificated: ISO, CE, RoHS

Sold: 373

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 11C13S0754ED3-013RS(11C13S0754ED-013RS)
Motor Type: Captive Linear Stepper
Step Angle: 1.8deg
Minimal Thrust: 80N(300pps)
Rated Current/phase: 0.35A
Phase Resistance: 34.8ohms
Inductance: 35.6mH ± 20%(1KHz)

Physical Specification

Frame Size: 28 x 28mm
Body Length: 46mm
Stroke Length: 12.7mm(0.5")
Lead Screw Diameter: Φ4.76mm(0.187")
Lead/Revolution: 0.635mm(0.025")
Number of Leads: 4
Cable Length: 300mm
Weight : 169g

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 11C13S0754ED5-013RS.

Electrical Specification
Has Torque/Thrust Curve?	No
Inductance(mH)	35.6
Minimal Thrust(N) @300pps	80
Phase Resistance(ohms)	34.8
Rated Current(A)	0.35
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	46
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Shared Inventory
Lead Length(mm)	300
Lead Screw Diameter(mm)	4.76
Lead Travel/Revolution(mm)	0.635
Lead Travel/Step(mm)	0.003175
Linear Motor Type	Captive
No. of Lead	4
Stroke Length(mm/ft)	12.7
