Dual Shaft Nema 34 Unipolar 1.8deg 2.2Nm(312oz.in) 2A 86x86x66mm 6 Wires

1 reviews - Write a review

C$46.71

5 + C$45.11

10 + C$43.62

50 + C$42.22

100 + C$40.92

In Stock: 10000
Model: 34HS26-2006D
Gross Weight: 2.27kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

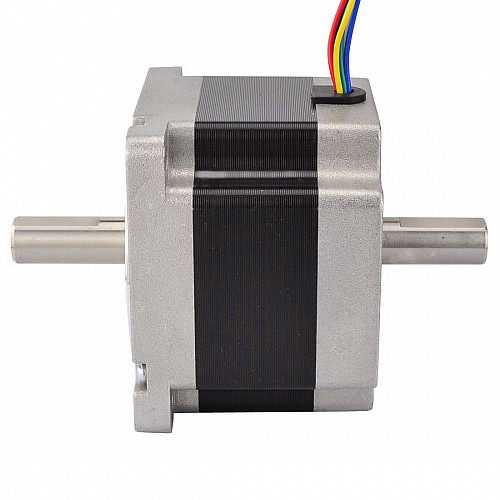

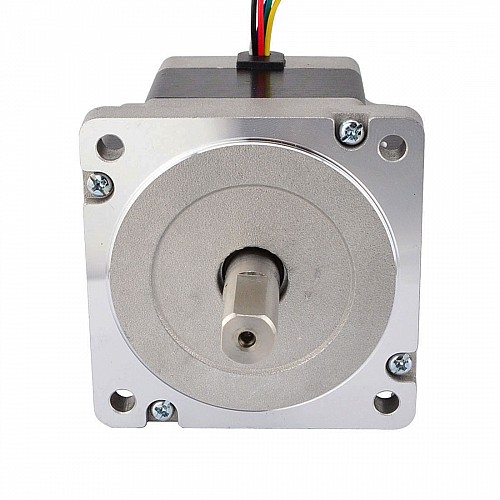

This unipolar Nema 34 stepper motor with step angle 1.8deg and size 86x86x66mm. It has 6 wires, each phase draws 2.0A, with holding torque 2.2Ncm(312oz.in). A rear shaft can mount encoder, hand wheel or equals.

Electrical Specification

Manufacturer Part Number: 34HS26-2006D
Motor Type: Unipolar Stepper
Step Angle: 1.8deg
Holding Torque: 2.2Nm(312oz.in)
Rated Current/phase: 2.0A
Phase Resistance: 2.2ohms
Inductance: 7.0mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 66mm
Shaft Diameter: Φ14mm
Front Shaft Length: 37mm
D-cut Length: 25mm
Rear Shaft Length: 34mm
Number of Leads: 6
Lead Length: 300mm
Weight: 1.7kg

Connection

Bipolar

A+	A-	B+	B-
Black	Green	Red	Blue

Unipolar

A+	O+	A-	B+	O-	B-
Black	Yellow	Green	Red	White	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Unipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	220
Holding Torque(oz.in)	312
Inductance(mH)	7
Phase Resistance(ohms)	2.2
Rated Current(A)	2
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	66
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
No. of Lead	6
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	14
Shaft Length(mm)	37
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	1700
