Nema 11 External 45mm Stack 0.75A Lead 0.635mm(0.025") Length 101mm

Discontinued

Nema 11 External 45mm Stack 0.75A Lead 0.635mm(0.025") Length 101mm

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 11E18S0754ED2-101RS
Gross Weight: 0.55kg
Certificated: ISO, CE, RoHS

Sold: 141

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

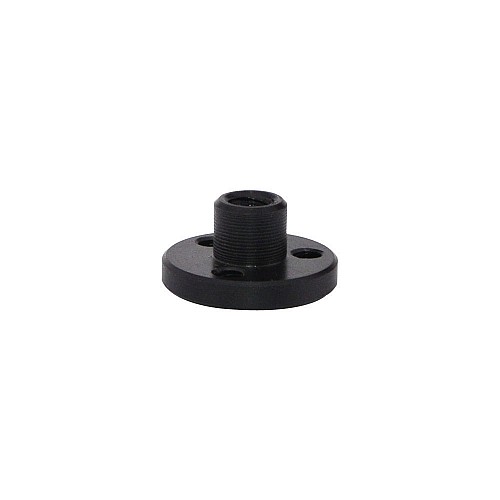

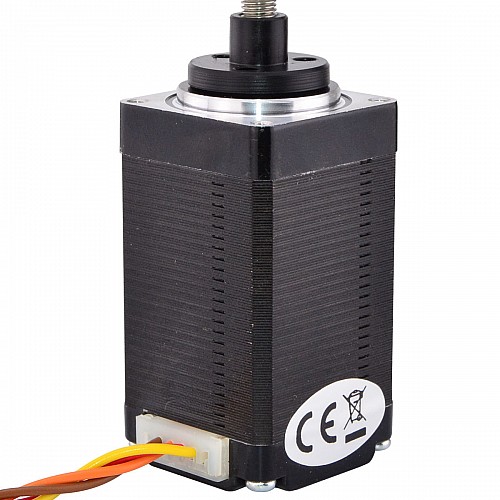

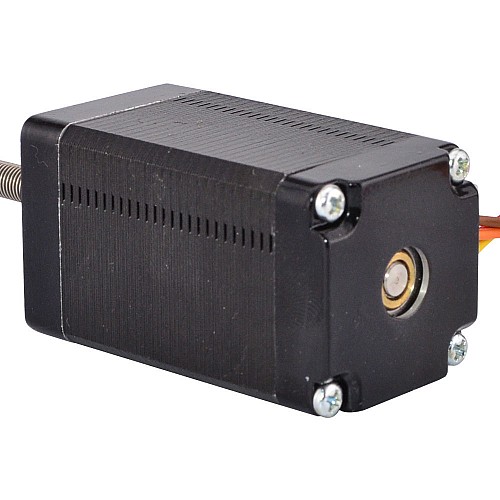

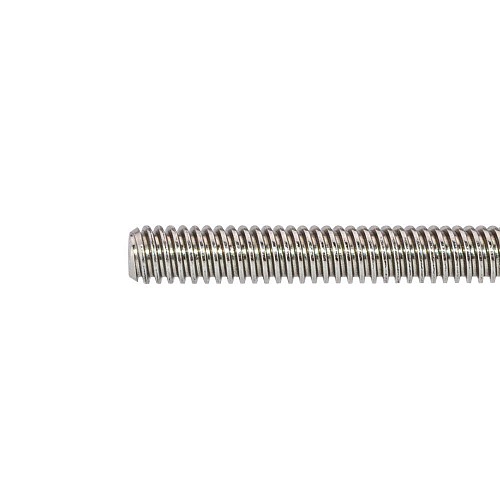

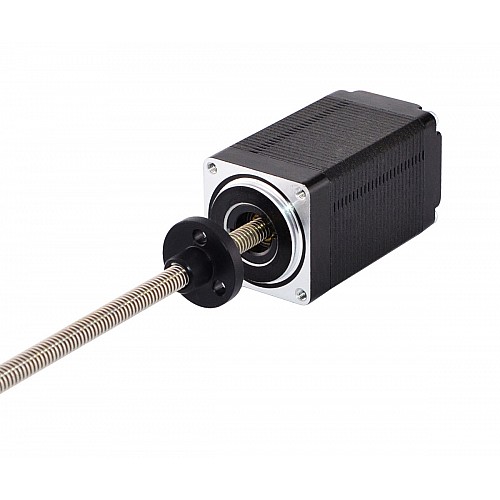

This model is economy linear stepper motor which named Nema 11 external linear actuator, the motor part is 45mm 1.8 degree 0.75A Nema 11 stepper motor. It was integrated with 101mm Tr4.76x0.635 threaded rod and a POM screw nut move along the threaded rod.

Electrical Specification

Manufacturer Part Number: 11E18S0754ED2-101RS(11E18S0754ED-101RS)
Motor Type: External Linear Stepper
Step Angle: 1.8deg
Holding Torque: 0.095Nm(13.45oz.in)
Rated Current/phase: 0.75A
Phase Resistance: 6.7ohms
Voltage: 3V
Inductance: 3.0mH ± 20%(1KHz)

Physical Specification

Frame Size: 28 x 28mm
Body Length: 45mm
Lead Screw Length: 101mm(3.976")
Lead Screw Diameter: Φ4.76mm(0.1874")
Lead/Step: 0.003175mm(0.000125")
Lead/Revolution: 0.635mm(0.025")
Number of Leads: 4
Cable Length: 300mm
Weight: 200g

Connection

A+	A-	B+	B-
Red	Yellow	Gray	Green

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 11E18S0754ED4-101RS.

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	9.5
Holding Torque(oz.in)	13.45
Inductance(mH)	3
Phase Resistance(ohms)	6.7
Rated Current(A)	0.75
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	45
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	304
Lead Screw Diameter(mm)	4.76
Lead Screw Length(mm)	101.6
Lead Travel/Revolution(mm)	0.635
Lead Travel/Step(mm)	0.003175
Linear Motor Type	External(Acme)
No. of Lead	4
