Nema 11 Non-captive 46mm Stack 0.75A Lead 0.635mm(0.025") Length 250mm

Discontinued

Nema 11 Non-captive 46mm Stack 0.75A Lead 0.635mm(0.025") Length 250mm

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 11N18S0754ED3-250RS
Gross Weight: 0.53kg
Certificated: ISO, CE, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

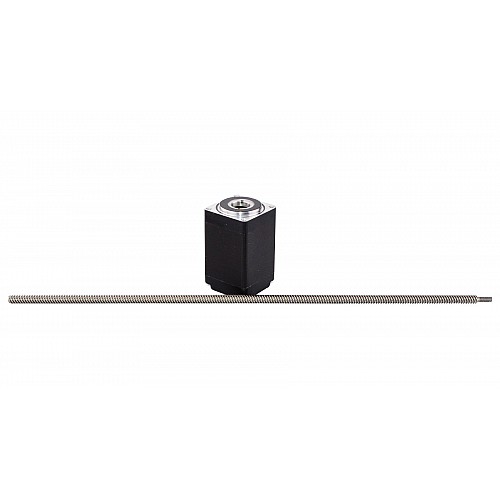

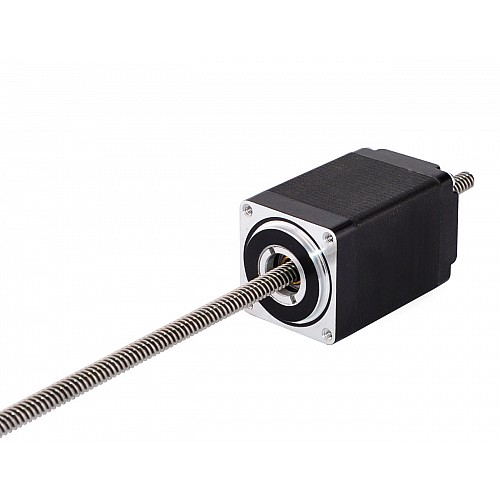

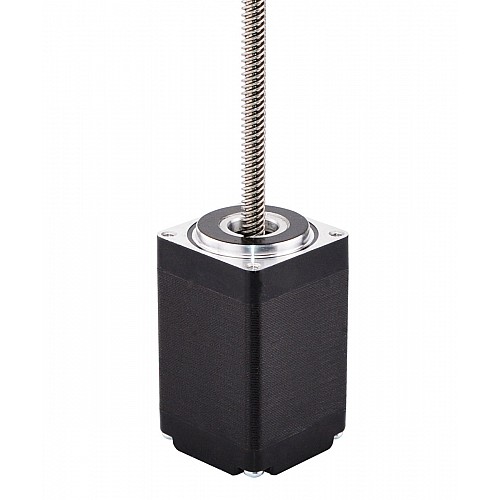

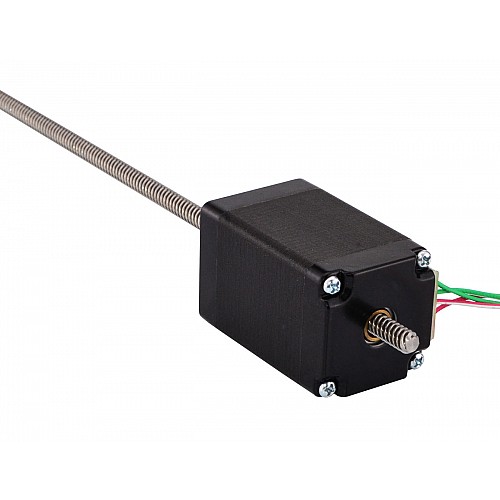

This model is almost exactly same as Haydon Kerk 28000 series size 11 double stack non-captive stepper motor linear actuator. The motor part is 46mm body 1.8 degree 0.75A Nema 11 stepper motor, and it works with a 4.76mm(0.1874") diameter 250mm(9.8425") length lead screw, the linear travel is 0.635mm(0.025") per revolution.

Electrical Specification

Manufacturer Part Number: 11N18S0754ED3-250RS(11N18S0754ED-250RS)
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 77N(300pps)
Rated Current/phase: 0.75A
Phase Resistance: 6.7ohms
Voltage: 5V
Inductance: 5.8mH±20%(1KHz)

Physical Specification

Frame Size: 28 x 28mm
Body Length: 46mm
Lead Screw Length: 250mm(9.8425")
Lead Screw Diameter: Φ4.76mm(0.1874")
Lead/Step: 0.003175mm(0.000125")
Lead Travel/Revolution: 0.635mm(0.025")
Number of Leads: 4
Cable Length: 300mm
Weight : 180g

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 11N18S1004ED5-250RS.

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Inductance(mH)	5.8
Minimal Thrust(N) @300pps	77
Phase Resistance(ohms)	6.7
Rated Current(A)	0.75
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	46
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
Lead Screw Diameter(mm)	4.76
Lead Screw Length(mm)	250
Lead Travel/Revolution(mm)	0.635
Lead Travel/Step(mm)	0.003175
Linear Motor Type	Non-Captive
No. of Lead	4
