Nema 11 Bipolar 1.8deg 12Ncm(16.99oz.in) 0.67A 28x28x51mm 4 Wires
18 reviews - Write a review
$10.76
5 + $10.26
10 + $9.79
50 + $9.37
100 + $8.99
  • In Stock: 10000
  • Model: 11HS20-0674S
  • Gross Weight: 0.30kg
  • Certificated: ISO, CE, UKCA, RoHS
Sold: 9074

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

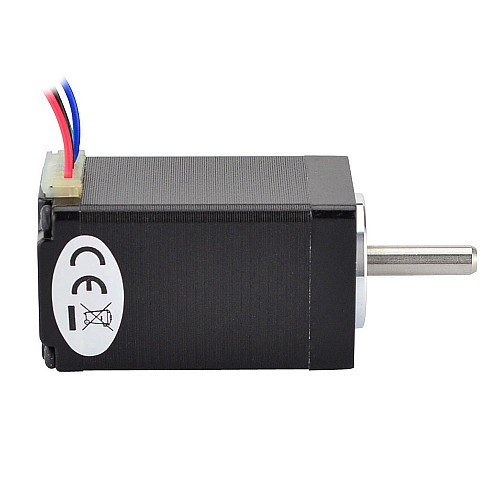

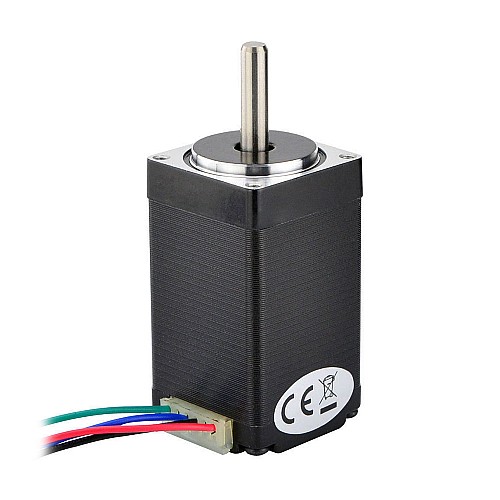

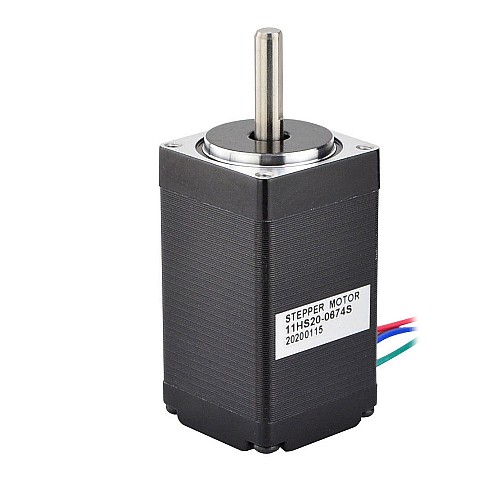

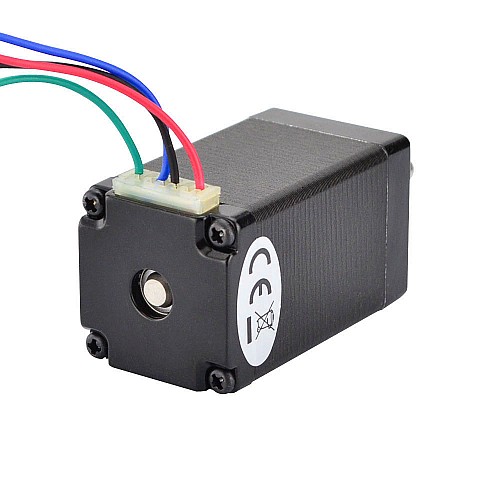

This bipolar nema 11 stepper motor with step angle 1.8deg and size 28x28x51mm. It has 4 wires, each phase draws 0.67A at 6.2V, with holding torque 12Ncm(16.99oz.in). Planetary Gearbox is available for this model.


Electrical Specification

  • Manufacturer Part Number: 11HS20-0674S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 12Ncm(16.99oz.in)
  • Rated Current/phase: 0.67A
  • Phase Resistance: 9.2ohms
  • Inductance: 5.7mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 28 x 28mm
  • Body Length: 51mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Cable Length: 500mm
  • Weight: 190g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Product Type
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 12
Holding Torque(oz.in) 16.99
Inductance(mH) 5.7
Phase Resistance(ohms) 9.2
Rated Current(A) 0.67
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 51
Cable Length(mm) 500
Frame Size(mm) Nema 11 (28 x 28)
Inventory Method Dedicated Inventory
IP Rating 40
No. of Lead 4
Output Shaft Type D
Product Series S
Shaft Diameter(mm) 5
Shaft Length(mm) 20
Single Shaft/Dual Shaft Single Shaft
Weight(g) 190



  • Motor Shaft
  • Cable
  • Connector
  • Encoder
  • Brake
  • Gearbox


File Size
11HS20-0674S.STEP 1.16MB Download
11HS20-0674S_Torque_curve.pdf 213.04KB Download
11HS20-0674S_Full_Datasheet.pdf 118.76KB Download
