Nema 11 External 46mm Stack 0.75A Lead 5.08mm(0.2") Length 250mm

Nema 11 External 46mm Stack 0.75A Lead 5.08mm(0.2) Length 250mm - 11E18S0754HD5-250RS | StepperOnline CA
Nema 11 External 46mm Stack 0.75A Lead 5.08mm(0.2) Length 250mm - 11E18S0754HD5-250RS | StepperOnline CA
Nema 11 External 46mm Stack 0.75A Lead 5.08mm(0.2) Length 250mm - 11E18S0754HD5-250RS | StepperOnline CA
Nema 11 External 46mm Stack 0.75A Lead 5.08mm(0.2) Length 250mm - 11E18S0754HD5-250RS | StepperOnline CA
Nema 11 External 46mm Stack 0.75A Lead 5.08mm(0.2) Length 250mm - 11E18S0754HD5-250RS | StepperOnline CA
Nema 11 External 46mm Stack 0.75A Lead 5.08mm(0.2) Length 250mm - 11E18S0754HD5-250RS | StepperOnline CA
Nema 11 External 46mm Stack 0.75A Lead 5.08mm(0.2) Length 250mm - 11E18S0754HD5-250RS | StepperOnline CA
Nema 11 External 46mm Stack 0.75A Lead 5.08mm(0.2) Length 250mm - 11E18S0754HD5-250RS | StepperOnline CA
Nema 11 External 46mm Stack 0.75A Lead 5.08mm(0.2) Length 250mm - 11E18S0754HD5-250RS | StepperOnline CA
Nema 11 External 46mm Stack 0.75A Lead 5.08mm(0.2) Length 250mm - 11E18S0754HD5-250RS | StepperOnline CA
Nema 11 External 46mm Stack 0.75A Lead 5.08mm(0.2) Length 250mm - 11E18S0754HD5-250RS | StepperOnline CA
Nema 11 External 46mm Stack 0.75A Lead 5.08mm(0.2) Length 250mm - 11E18S0754HD5-250RS | StepperOnline CA
11E18S0754HD5-250RS
Rated Current(A)0.75
Phase Resistance(ohms)6.7
Inductance(mH)5.8
Linear Motor TypeExternal(Acme)
Question

Downloads

11E18S0754HD5-250RS_Full_Datasheet.pdfPDF · 142.76KB
Same series
ModelRated Current(A)Phase Resistance(ohms)Inductance(mH)Linear Motor TypePriceStock
11E13S0424ED5-150RS0.4211.46External(Acme)C$54.29In stock
11E13S0424FD3-150RS0.4211.46External(Acme)C$93.99In stock
11E13S0424FD4-150RS0.4211.46External(Acme)C$47.37In stock
11E13S0424GD3-150RS0.4211.46External(Acme)C$93.99Backorder
11E13S0754ED4-100RS0.753.22External(Acme)C$40.79In stock
11E13S1004FD4-150RS-OE1K1.02.11.5External(Acme)C$113.26In stock
11E13S1004FD5-150RS1.02.11.5External(Acme)C$51.27In stock
11E13S1004GD4-150RS-OE1K1.02.11.5External(Acme)C$113.26In stock
11E13S1004GD5-150RS1.02.11.5External(Acme)C$51.27In stock
11E13S1004HD5-150RS1.02.11.5External(Acme)C$53.81Backorder
11E13S1004HD5-180RS-E22-3001.02.11.5External(Acme)C$105.85In stock
11E18S0754ED3-250RS0.756.75.8External(Acme)C$122.37In stock
11E18S0754ED4-101RS0.756.73External(Acme)C$41.18In stock
11E18S0754FD4-250RS0.756.75.8External(Acme)C$59.73In stock
11E18S0754HD5-250RS0.756.75.8External(Acme)C$73.89In stock
11E18S1004FD5-150RS1.03.73.7External(Acme)C$54.29Backorder
11E18S1004GD5-150RS1.03.73.7External(Acme)C$54.29Backorder
11E18S1004GD5-250RS1.03.73.7External(Acme)C$62.21In stock
11E18S1004HD5-150RS1.03.73.7External(Acme)C$54.29Backorder
11E18S1004ND5-150RS-SALE1.03.73.7External(Acme)C$47.98In stock
11E20S0674ED4-100RS0.679.25.7External(Acme)C$46.11In stock
14E13S0574FF3-150RS0.578.813External(Acme)C$107.05Backorder
14E13S0574JE4-150RS0.578.813External(Acme)C$65.58In stock
14E13S0574LF3-150RS0.578.813External(Acme)C$90.44Backorder
14E13S1504GF5-150RS1.50.951External(Acme)C$48.26In stock
14E17S0914FF3-250RS0.915.57.63External(Acme)C$122.37Backorder
14E17S0914LF3-250RS-SALE0.915.57.63External(Acme)C$86.07In stock
14E19S1504FF5-150RS1.51.52.0External(Acme)C$51.27In stock
14E19S1504GF5-150RS1.51.52.0External(Acme)C$51.27In stock
14E19S1504RF5-150RS1.51.62.3External(Acme)C$53.81Backorder
View all in category
Nema 11 External 46mm Stack 0.75A Lead 5.08mm(0.2") Length 250mm
The motor part is 46mm body 1.8 degree 0.75A Nema 11 stepper motor, and it has integrated with a 4.7... Read More
0 reviews • Write a review
from
C$73.89
5 + C$71.64
10 + C$69.51
50 + C$67.51
100 + C$65.63

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

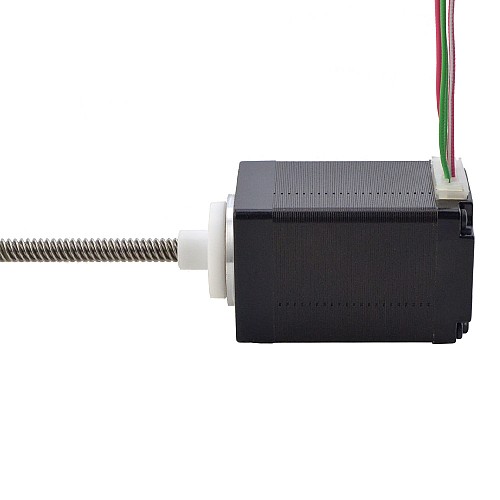

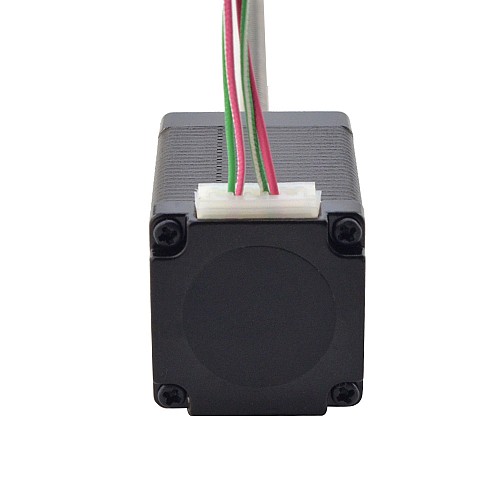

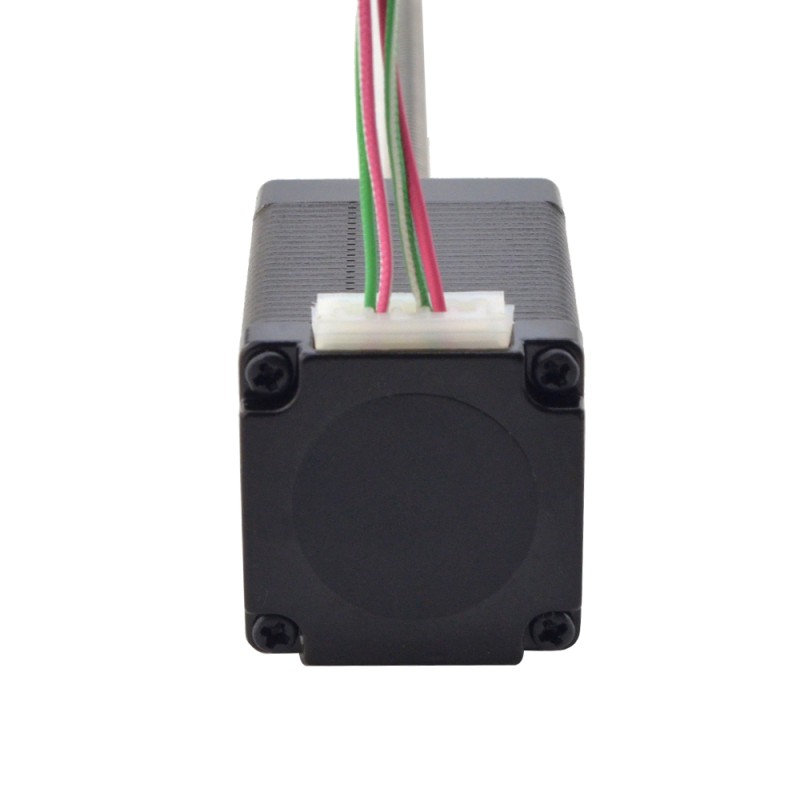

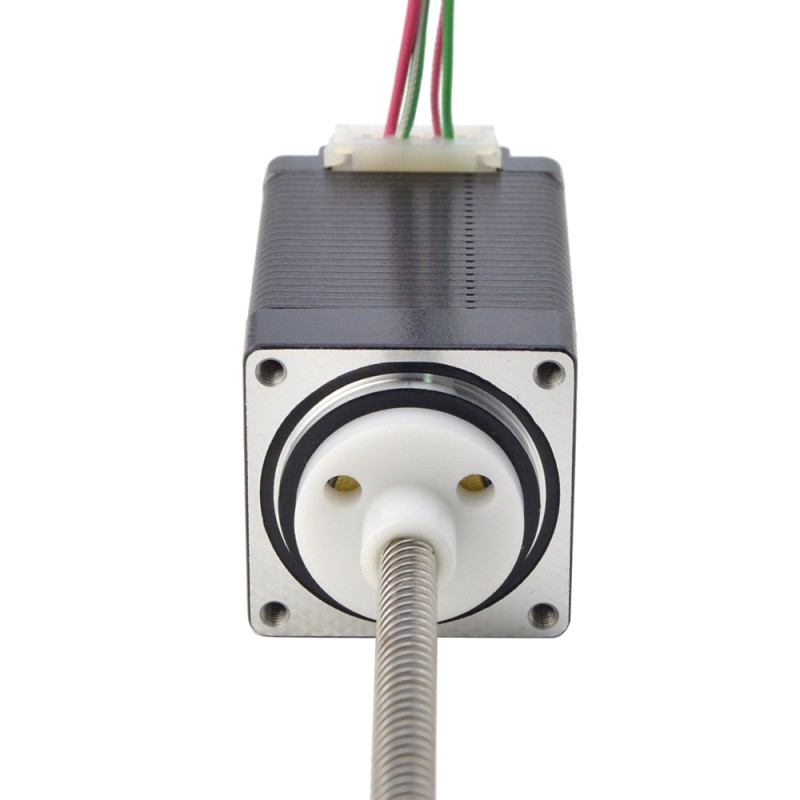

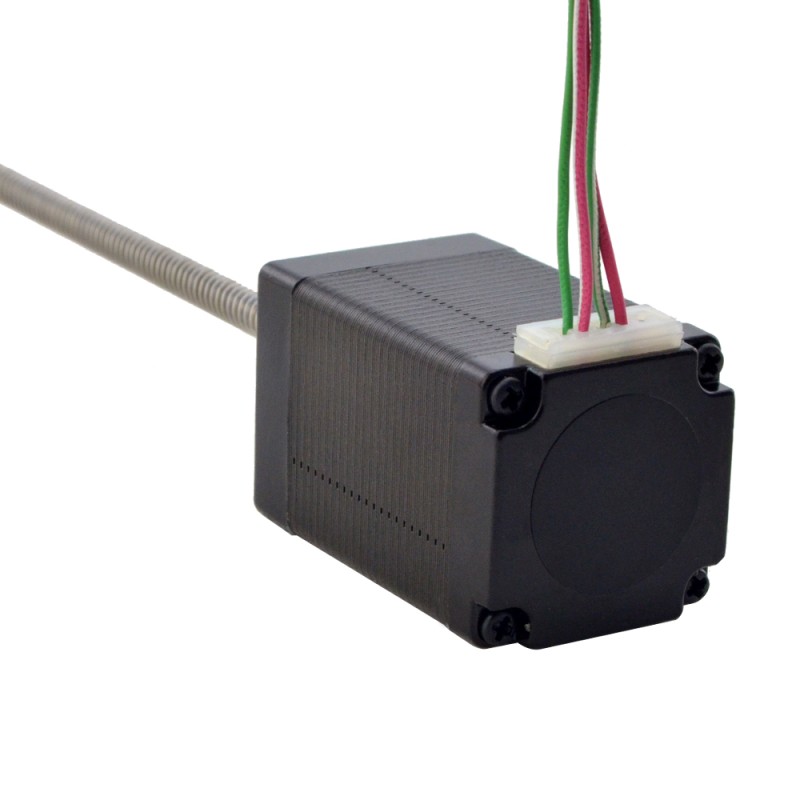

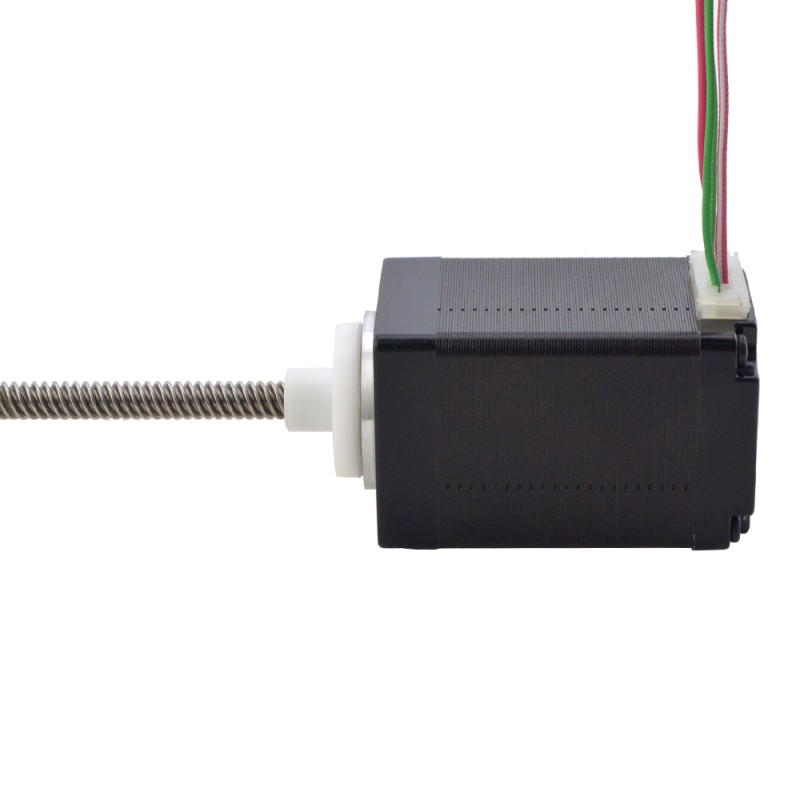

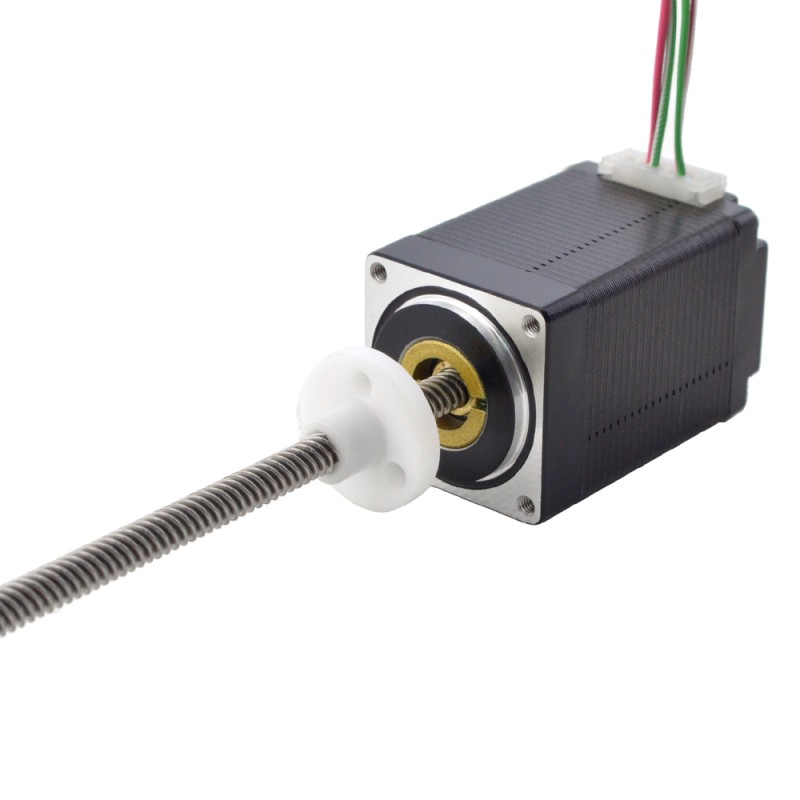

The motor part is 46mm body 1.8 degree 0.75A Nema 11 stepper motor, and it has integrated with a 4.76mm(0.1874") diameter 250mm(9.8425") length lead screw and a POM screw nut, the linear travel is 5.08mm(0.2") per revolution. This model is almost exactly same as Haydon Kerk 28000 series size 11 double stack external stepper motor linear actuator.

Electrical Specification

  • Manufacturer Part Number: 11E18S0754HD5-250RS(11E18S0754HD-250RS)(11LS18-07541-250E)
  • Motor Type: External(Acme)
  • Step Angle: 1.8°
  • Holding Torque: 0.12Nm(16.99oz.in)
  • Rated Current/phase: 0.75A
  • Phase Resistance: 6.7ohms
  • Inductance: 5.8mH±20%(1KHz)

Physical Specification

  • Frame Size: 28 x 28mm
  • Body Length: 46mm

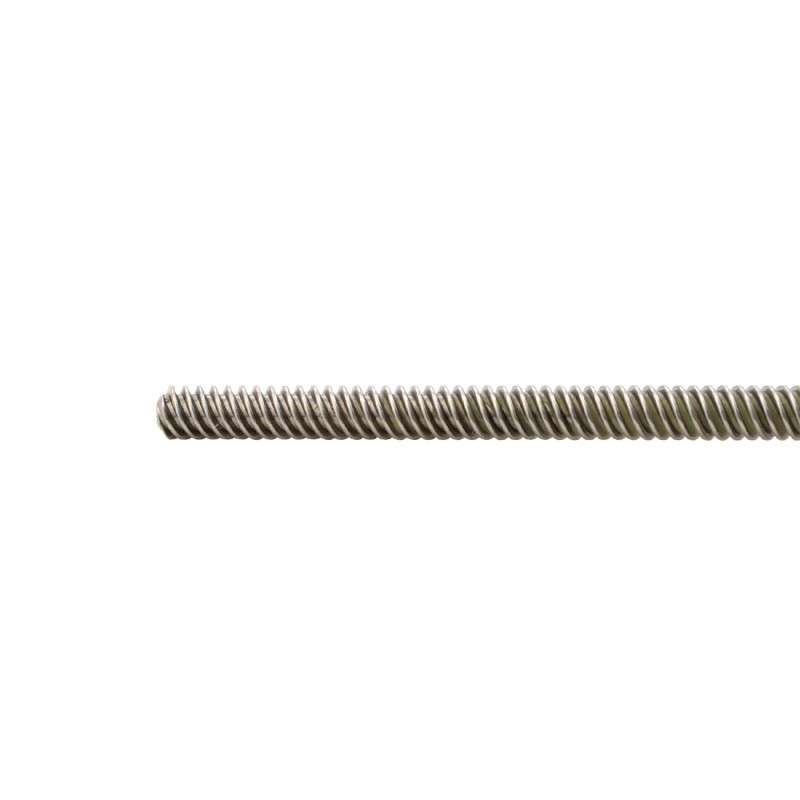

  • Lead Screw Length: 250mm(9.8425")
  • Lead Screw Diameter: Φ4.76mm(0.1874")
  • Lead/Step: 0.0254mm(0.001")
  • Lead Travel/Revolution: 5.08mm(0.2")
  • Number of Leads: 4
  • Cable Length: 300mm

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green
Product Type
Product Type Linear Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 12
Holding Torque(oz.in) 16.99
Inductance(mH) 5.8
Phase Resistance(ohms) 6.7
Rated Current(A) 0.75
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 46
Frame Size(mm) Nema 11 (28 x 28)
IP Rating 40
Lead Length(mm) 300
Lead Screw Diameter(mm) 4.76
Lead Screw Length(mm) 250
Lead Travel/Revolution(mm) 5.08
Lead Travel/Step(mm) 0.0254
Linear Motor Type External(Acme)
No. of Lead 4
With Encoder No
