Nema 11 Stepper L=31mm w/ Rear Shaft & Screw Hole Gear Ratio 100:1 Gearbox

0 reviews - Write a review

C$52.55

5 + C$49.95

10 + C$47.61

50 + C$45.47

100 + C$43.51

In Stock: 10000
Model: 11HS12-0674D2-PG100
Gross Weight: 0.31kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

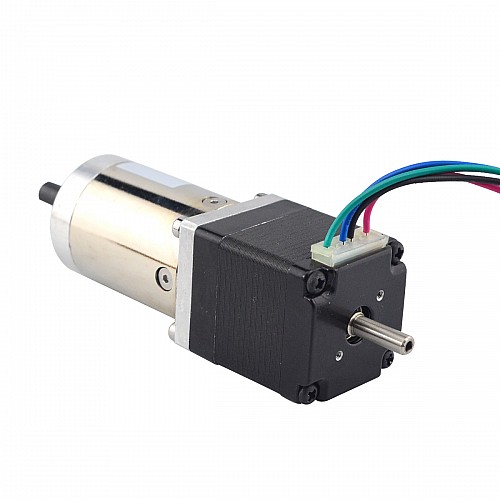

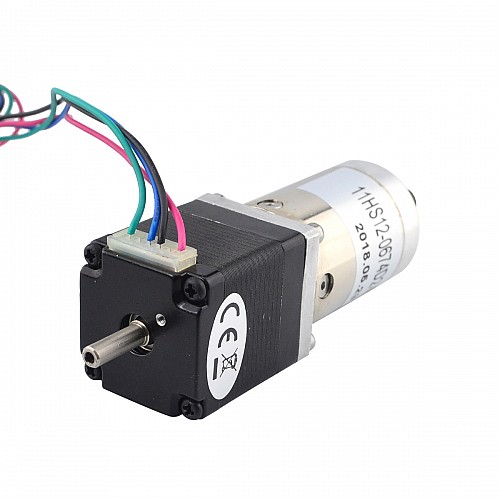

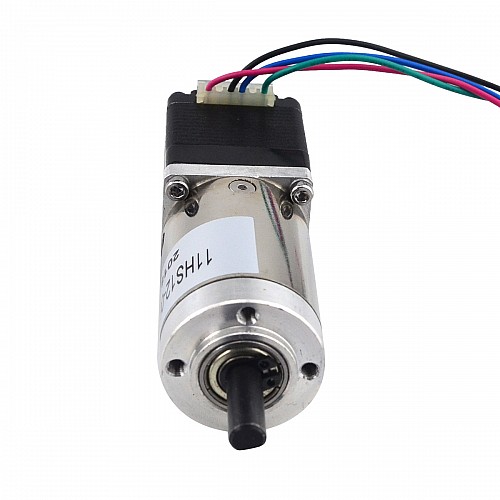

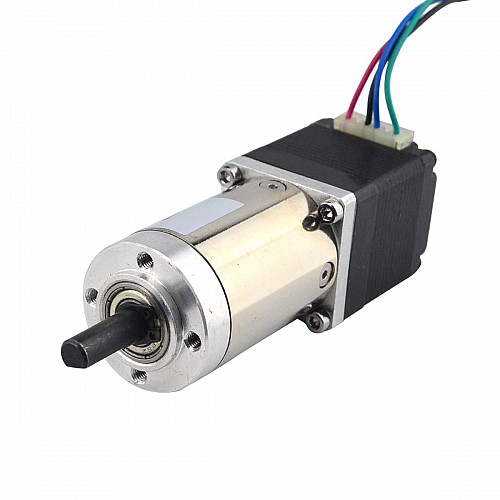

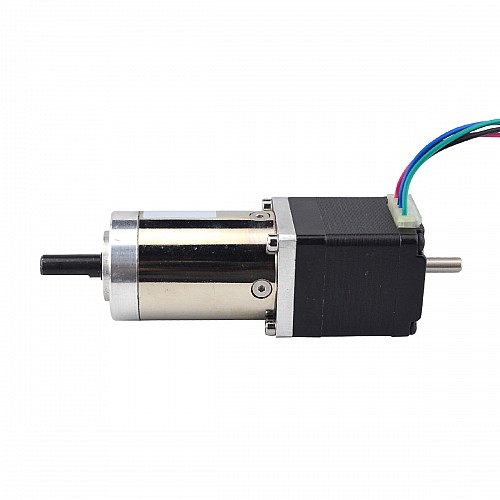

This Nema 11 stepper motor with 31mm body and 0.67A rated current, integrated a planetary gearbox of 99.548:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 11HS12-0674D2-PG100
Motor Type: Bipolar Stepper
Holding Torque: 7Ncm(9.91oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 5.6ohms
Inductance: 4.0mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 99.548:1
Efficiency: 70%
Backlash at No-load: <=3deg
Max.Permissible Torque: 3Nm(425oz.in)
Moment Permissible Torque: 5Nm(708oz.in)
Shaft Maximum Axial Load: 5N
Shaft Maximum Radial Load: 25N

Physical Specification

Frame Size: 28 x 28mm
Gearbox Length: 44.6mm
Front Shaft Diameter: Φ6mm
Front Shaft Length: 18mm
Front D-cut Length: 12mm
Rear Shaft Diameter: Φ4mm
Rear Shaft Length: 12mm
Number of Leads: 4
Lead Length: 500mm
Weight: 200g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	0.67
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.07
Inductance(mH)	4
Phase Resistance(ohms)	5.6
Physical Specification
Backlash at No-load	<=3deg
Body Length(mm)	74.7
Frame Size(mm)	Nema 11 (28 x 28)
Gear Ratio(xx:1)	99.548
Gearbox Type	Economy Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	200
