Nema 14 Bipolar 1.8deg 14Ncm(20oz.in) 0.4A 35x35x26mm 4 Wires

Hot

Nema 14 Bipolar 1.8deg 14Ncm(20oz.in) 0.4A 35x35x26mm 4 Wires

3 reviews - Write a review

C$13.51

5 + C$12.88

10 + C$12.30

50 + C$11.77

100 + C$11.29

In Stock: 10000
Model: 14HS10-0404S
Gross Weight: 0.18kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 4978

Click country for real-time stock

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

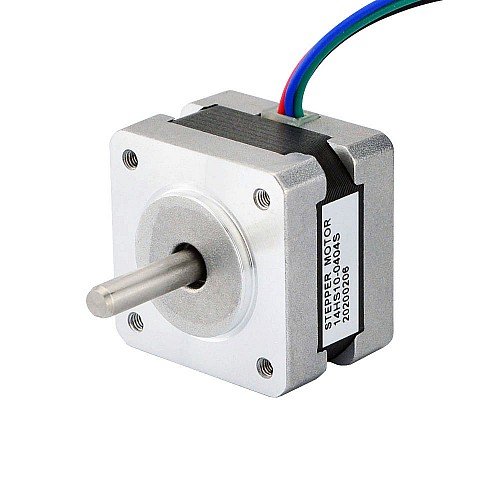

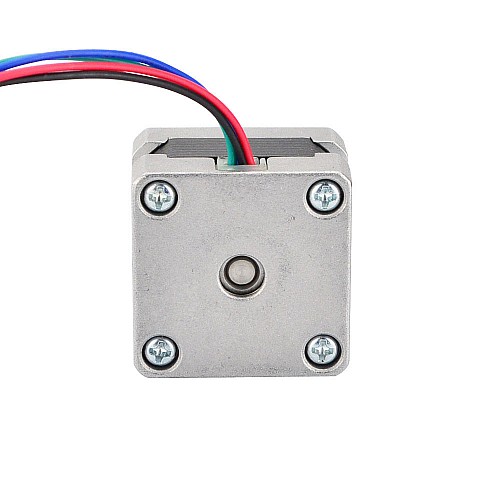

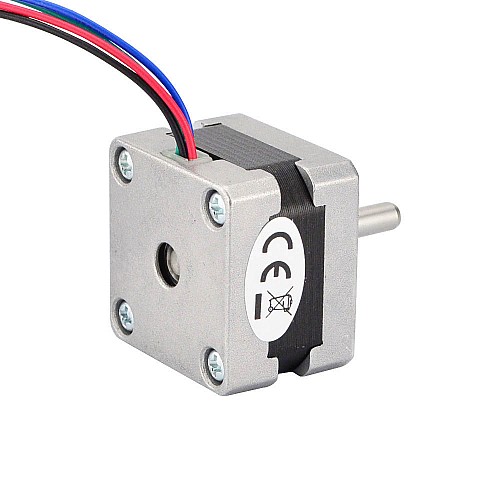

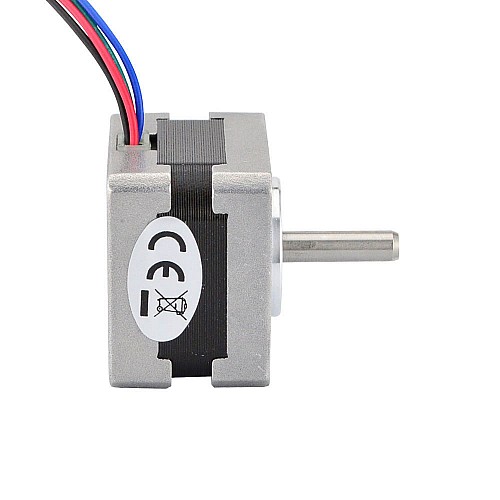

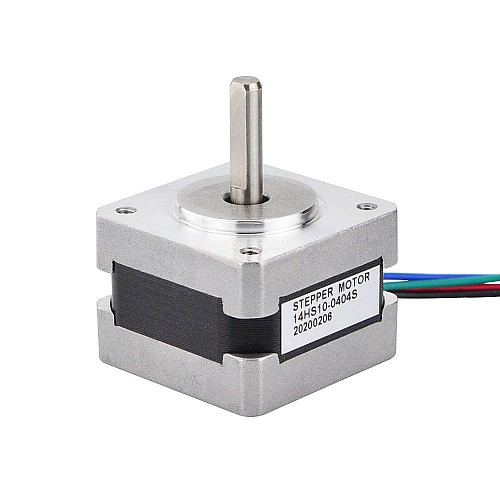

This bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x26mm. It has 4 wires, each phase draws 0.4A at 12V, with holding torque 14Ncm(20oz.in).

Electrical Specification

Manufacturer Part Number: 14HS10-0404S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 14Ncm(20oz.in)
Rated Current/phase: 0.4A
Phase Resistance: 30ohms
Inductance: 30mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 35 x 35mm
Body Length: 26mm
Shaft Diameter: Φ5mm
Shaft Length: 20.5mm
D-cut Length: 16.5mm
Number of Leads: 4
Cable Length: 400mm
Weight: 140g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	14
Holding Torque(oz.in)	20
Inductance(mH)	30
Phase Resistance(ohms)	30
Rated Current(A)	0.4
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	26
Cable Length(mm)	400
Frame Size(mm)	Nema 14 (35 x 35)
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	20.5
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	140
