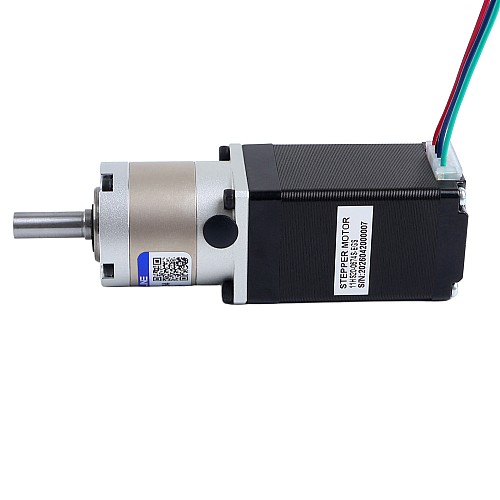

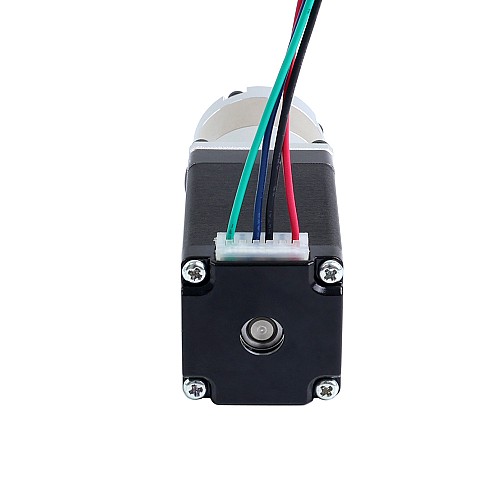

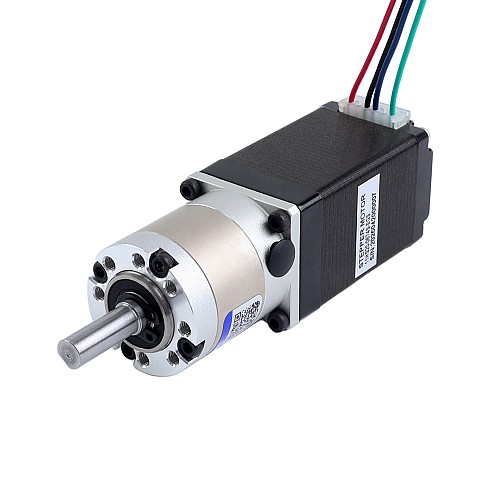

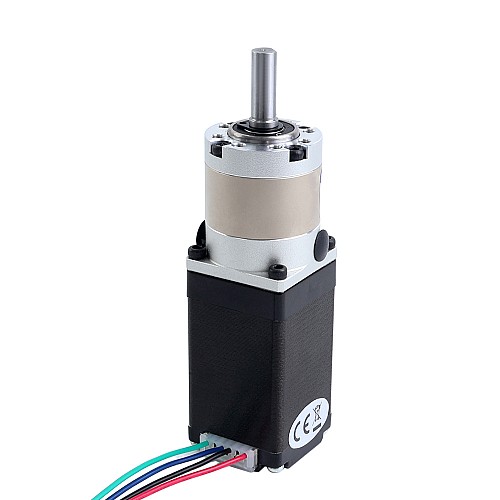

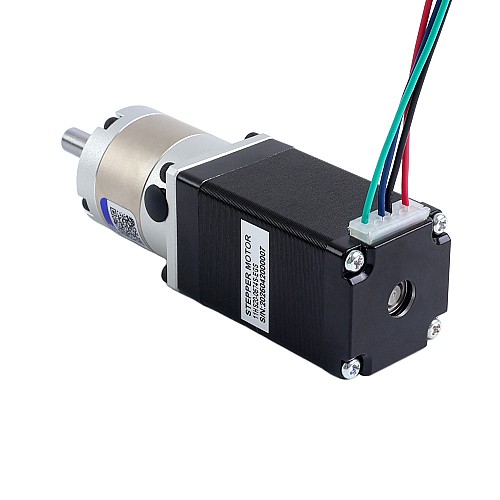

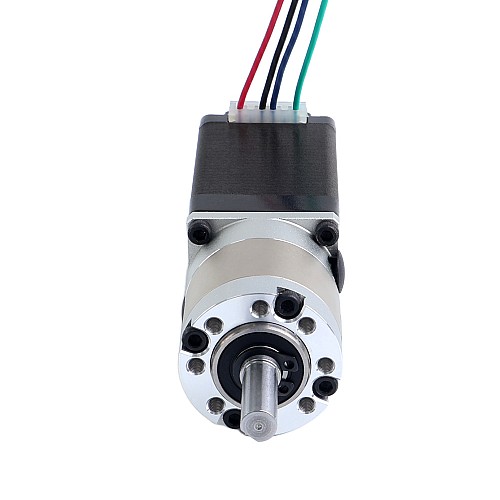

Nema 11 Stepper Motor 0.67A Bipolar L=51mm w/ Gear Ratio 10:1 EG Series Planetary Gearbox

New

Nema 11 Stepper Motor 0.67A Bipolar L=51mm w/ Gear Ratio 10:1 EG Series Planetary Gearbox

0 reviews - Write a review

C$69.59

5 + C$64.31

10 + C$59.77

50 + C$55.83

100 + C$52.37

In Stock: 200
Model: 11HS20-0674S-EGS10
Gross Weight: 0.35kg
Certificated: ISO, CE, UKCA, RoHS

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This Nema 11 stepper motor with a holding torque of 12Ncm(16.99oz.in) is equipped with a high-precision planetary gearbox. It has a gear ratio of 10:1 and a maximum backlash of 15arc-min. It is a good solution for applications that require good accuracy and reliability at an exceptional value.

Electrical Specification

Part Number: 11HS20-0674S-EGS10
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque Without Gearbox: 0.12Nm(16.99oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 9.2ohms ± 10%
Inductance: 5.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 10 : 1
Efficiency: 96%
Backlash at No-load: <=15arcmin
Max.Permissible Torque: 1Nm(8.85lb-in)
Moment Permissible Torque: 2Nm(17.7lb-in)
Noise: <=55dB
Lifetime: 20000hours

Physical Specifications

Frame Size: 28 x 28mm
Motor Length: 51mm
Gearbox Length: 33mm
Shaft Diameter: Φ7mm
Shaft Length: 20mm
D-cut length: 15mm
Number of Wires: 4
Cable Length: 500mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	0.67
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.12
Inductance(mH)	5.8
Phase Resistance(ohms)	9.2
Physical Specification
Backlash at No-load	<=15 arcmin
Frame Size(mm)	Nema 11 (28 x 28)
Gear Material	Alloy Steel
Gear Ratio(xx:1)	10
Gearbox Type	Precision Planetary
IP Rating	40
Output Shaft Type	D
Shaft Diameter(mm)	7
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Single Shaft

File	Size
11HS20-0674S-EGS10_Full_Datasheet.pdf	200.53KB	Download

Tags: Output Shaft Type: D, Shaft Diameter(mm): 7, Shaft Length(mm): 20, Single Shaft/Dual Shaft: Single Shaft, Bipolar/Unipolar: Bipolar, Phase Resistance(ohms): 9.2, Inductance(mH): 5.8, Frame Size(mm): Nema 11 (28 x 28), Current(A): 0.67, Product Type: Geared Stepper Motor, Holding Torque w/o Gearbox(N.m): 0.12, Gear Ratio(xx:1): 10, Backlash at No-load: <=15 arcmin, Gearbox Type: Precision Planetary, IP Rating: 40, Has Torque/Thrust Curve?: No, Gear Material: Alloy Steel
