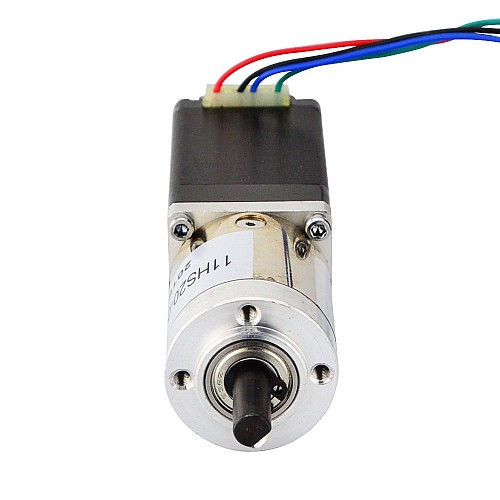

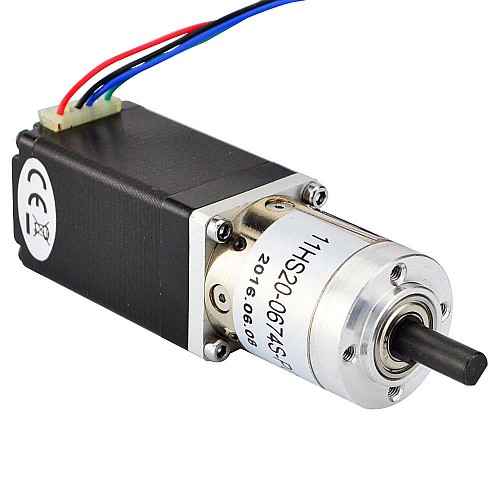

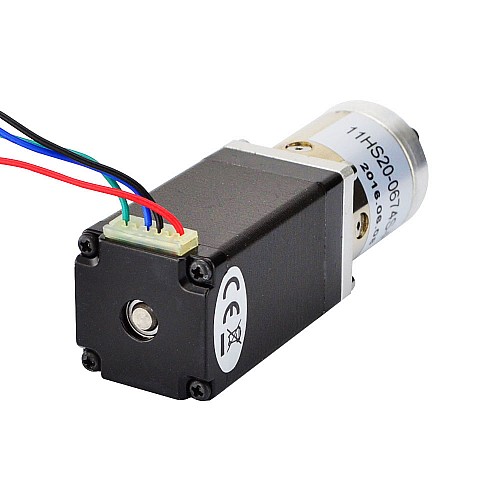

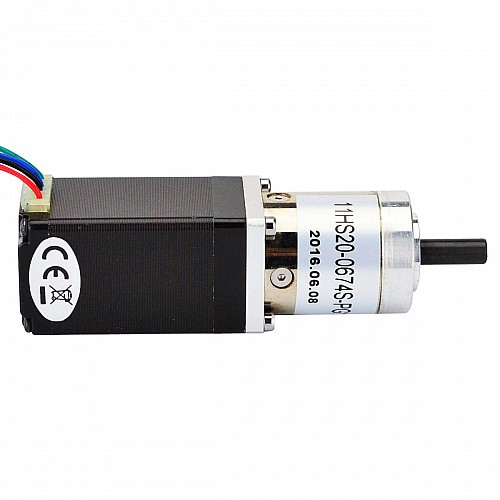

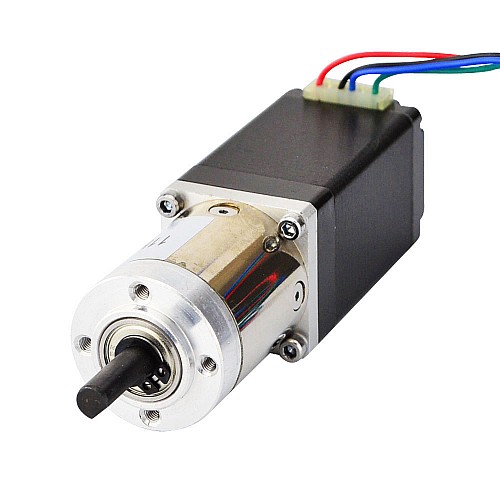

Nema 11 Stepper Motor Bipolar L=51mm w/ Gear Ratio 19:1 Planetary Gearbox

Hot

Nema 11 Stepper Motor Bipolar L=51mm w/ Gear Ratio 19:1 Planetary Gearbox

1 reviews - Write a review

C$52.55

5 + C$49.95

10 + C$47.61

50 + C$45.47

100 + C$43.51

In Stock: 10000
Model: 11HS20-0674S-PG19
Gross Weight: 0.35kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This Nema 11 stepper motor with 51mm body and 0.67A rated current, integrated a planetary gearbox of 19.19:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 11HS20-0674S-PG19
Motor Type: Bipolar Stepper
Holding Torque without Gearbox: 14Ncm(19.83oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 12ohms
Inductance: 6.5mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 19.19:1
Gear Efficiency: 80%
Backlash at No-load: <=3deg
Max.Permissible Torque: 3Nm(425oz.in)
Moment Permissible Torque: 5Nm(708oz.in)
Shaft Maximum Axial Load: 5N
Shaft Maximum Radial Load: 25N

Physical Specifications

Frame Size: 28 x 28mm
Motor Length: 51mm
Gearbox Length: 36.8mm
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-cut Length: 12mm
Number of Leads: 4
Lead Length: 500mm
Weight: 288g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	0.67
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	0.14
Inductance(mH)	6.5
Phase Resistance(ohms)	12
Physical Specification
Backlash at No-load	<=3deg
Body Length(mm)	85.5
Frame Size(mm)	Nema 11 (28 x 28)
Gear Ratio(xx:1)	19.19
Gearbox Type	Economy Planetary
Inventory Method	Dedicated Inventory
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	400

File	Size
11HS20-0674S-PG19_Full_Datasheet.pdf	139.63KB	Download
11HS20-0674S-PG19.STEP	1.66MB	Download
11HS20-0674S-PG19_Torque_Curve.pdf	165.64KB	Download
11HS20-0674S_Torque_curve.pdf	213.04KB	Download
