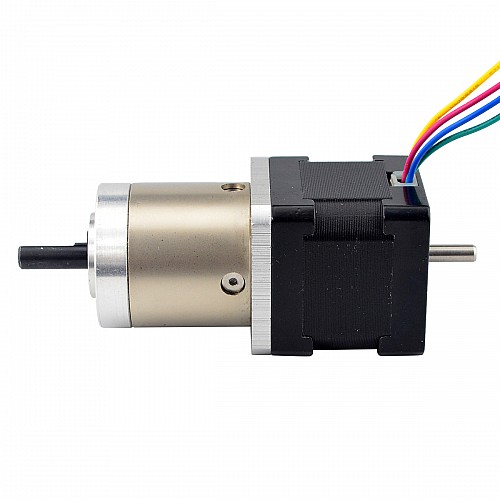

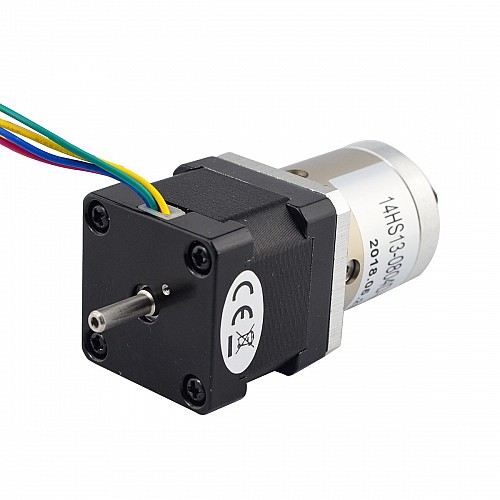

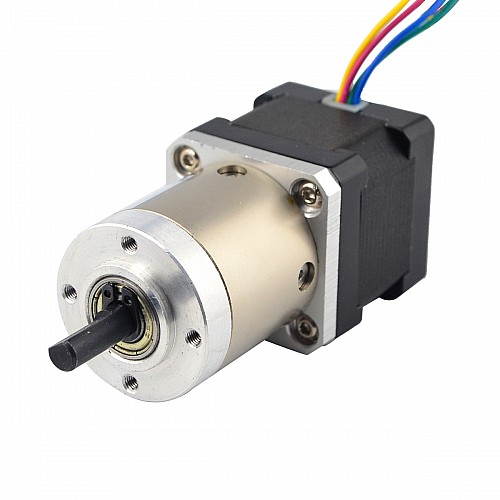

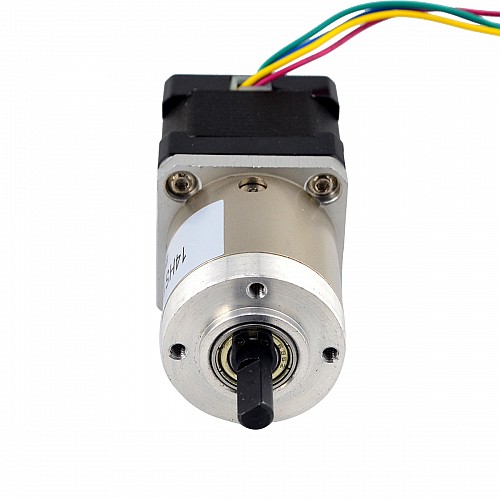

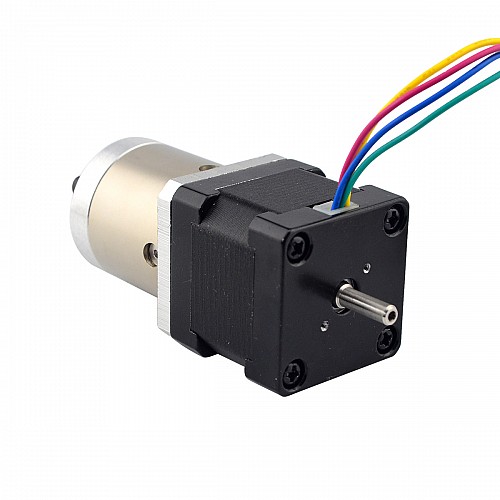

Nema 14 Stepper L=34mm w/ Rear Shaft & Screw Hole & Gear Ratio 19:1 Gearbox

0 reviews - Write a review

C$51.68

5 + C$49.00

10 + C$46.58

50 + C$44.39

100 + C$42.39

In Stock: Pre-order
Model: 14HS13-0804D-PG19
Gross Weight: 0.45kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This Nema 14 stepper motor with 34mm body and 0.80A rated current, integrated a planetary gearbox of 19.19:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 14HS13-0804D-PG19
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 14Ncm(19.88oz.in)
Rated Current/phase: 1A
Phase Resistance: 3.2ohms
Inductance: 4.5mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type:Planetary
Gear Ratio:19.19:1
Efficiency:80%
Backlash at No-load:<=3deg
Max.Permissible Torque: 3Nm(424.84oz.in)
Moment Permissible Torque: 5Nm(708.06oz.in)
Shaft Maximum Axial Load:50N
Shaft Maximum Radial Load:100N

Physical Specification

Frame Size:35x35mm
Motor Length: 34mm
Gearbox Length: 35.8mm
Front Shaft Diameter: Φ6mm
Front Shaft Length: 18mm
Front D-cut Length: 12mm
Rear Shaft Diameter: Φ4mm
Rear Shaft Length:12mm
Number of Leads: 4
Lead Length: 500mm
Weight: 400g

Connection

A+	A-	B+	B-
Red	Green	Yellow	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.14
Inductance(mH)	4.5
Phase Resistance(ohms)	3.2
Physical Specification
Backlash at No-load	<=3deg
Body Length(mm)	69
Frame Size(mm)	Nema 14 (35 x 35)
Gear Ratio(xx:1)	19.19
Gearbox Type	Economy Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	400
