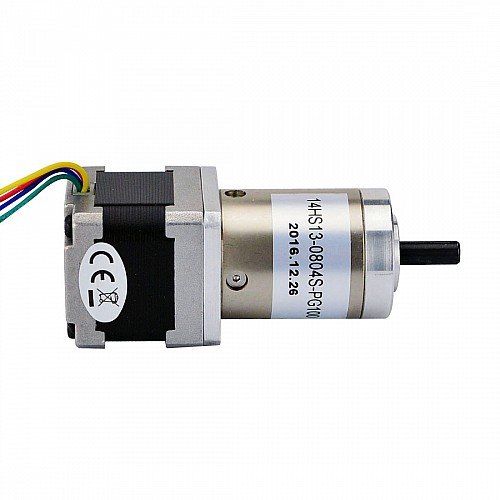

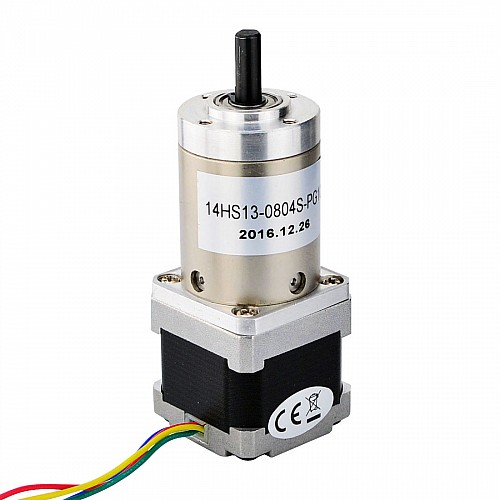

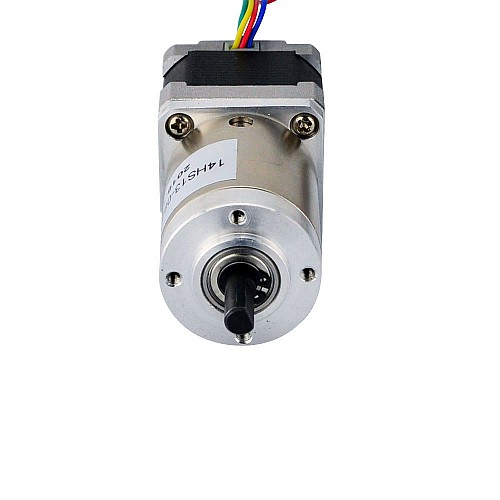

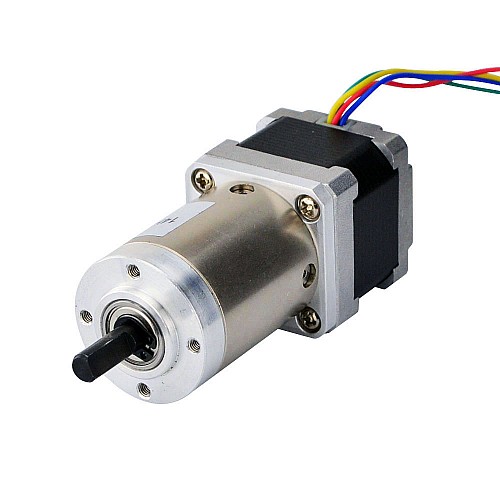

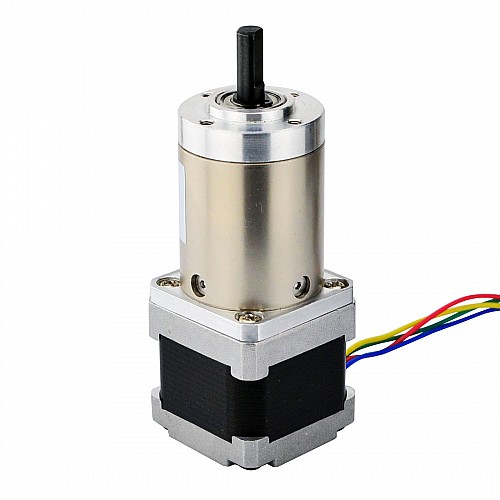

Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 100:1 Planetary Gearbox

Hot

Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 100:1 Planetary Gearbox

1 reviews - Write a review

C$53.29

5 + C$50.53

10 + C$48.03

50 + C$45.76

100 + C$43.70

In Stock: 10000
Model: 14HS13-0804S-PG100
Gross Weight: 0.42kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This Nema 14 stepper motor with 34mm body and 1.0A rated current, integrated a planetary gearbox of 99.548:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 14HS13-0804S-PG100
Motor Type: Bipolar Stepper
Step Angle: 0.018deg
Holding Torque without Gearbox: 14Ncm(19.8oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 3.2ohms
Inductance: 4.5mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 99.548:1
Gear Efficiency: 70%
Backlash at No-load: <=3deg
Max.Permissible Torque: 3Nm(424.83oz.in)
Moment Permissible Torque: 5Nm(708.06oz.in)
Shaft Maximum Axial Load: 50N
Shaft Maximum Radial Load: 100N

Physical Specifications

Frame Size: 35 x 35mm
Motor Length: 34mm
Gearbox Length: 44.6mm
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-cut Length: 12mm
Number of Leads: 4
Lead Length: 500mm
Weight: 360g

Connection

A+	A-	B+	B-
Red	Green	Yellow	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.0
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	0.14
Inductance(mH)	4.5
Phase Resistance(ohms)	3.2
Physical Specification
Backlash at No-load	<=3deg
Body Length(mm)	77.6
Frame Size(mm)	Nema 14 (35 x 35)
Gear Ratio(xx:1)	99.548
Gearbox Type	Economy Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	360

File	Size
14HS13-0804S-PG100_Full_Datasheet.pdf	174.16KB	Download
14HS13-0804S-PG100.STEP	1.92MB	Download
14HS13-0804S-PG100_Torque_Curve.pdf	184.71KB	Download
14HS13-0804S_Torque_curve.pdf	214.15KB	Download
