Nema 23 Unipolar 1.8deg 1.35Nm(191.2oz.in) 1A 57x57x76mm 6 Wires

Hot

Nema 23 Unipolar 1.8deg 1.35Nm(191.2oz.in) 1A 57x57x76mm 6 Wires

3 reviews - Write a review

C$32.83

5 + C$31.27

10 + C$29.87

50 + C$28.59

100 + C$27.41

In Stock: 10000
Model: 23HS30-1006S
Gross Weight: 1.15kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 780

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

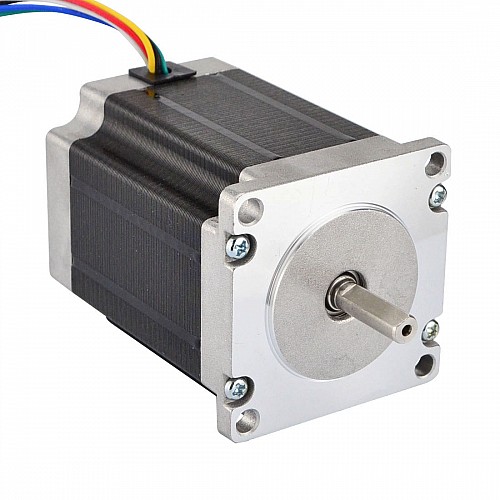

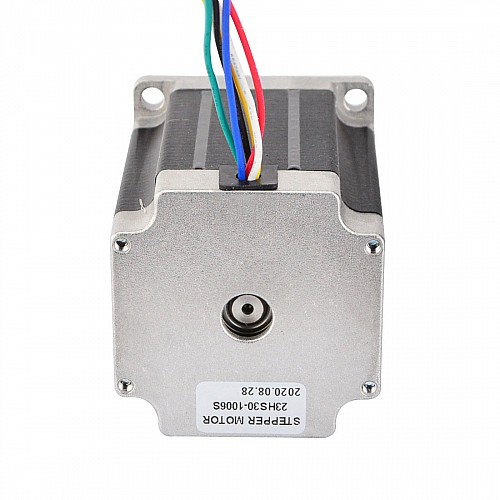

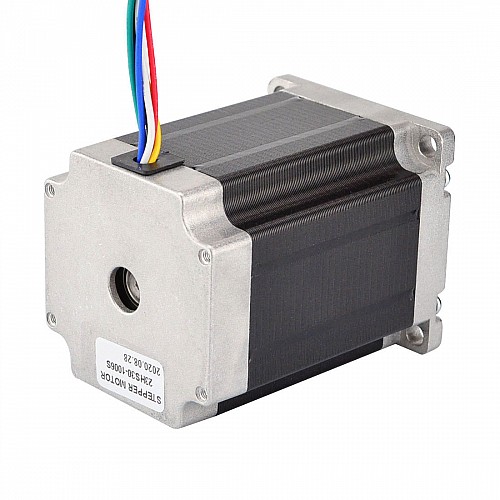

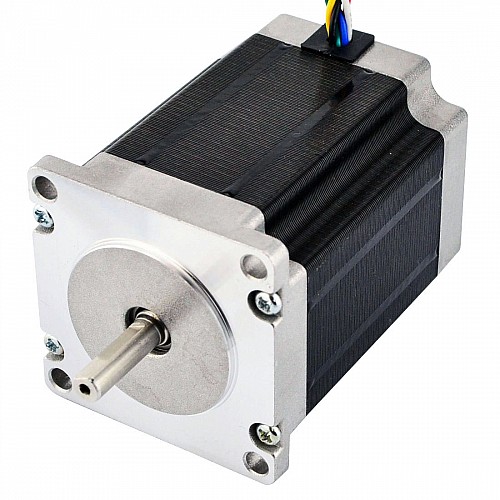

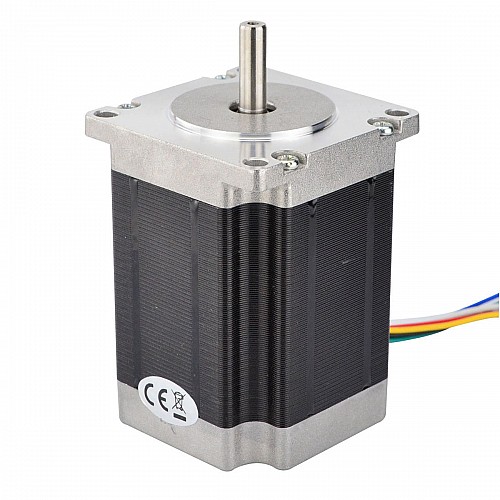

This unipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x76mm. It has 6 wires, each phase draws 1.0A, with holding torque 1.35Nm(191.2oz.in).

Electrical Specification

Manufacturer Part Number: 23HS30-1006S
Motor Type: Unipolar Stepper
Step Angle: 1.8deg
Holding Torque: 1.35Nm(191.2oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 8.6ohms
Inductance: 18mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 76mm
Shaft Diameter: Φ6.35mm(1/4 inch)
Shaft Length: 20.6mm
D-cut Length: 18mm
Number of Leads: 6
Lead Length: 500mm
Weight: 1.0Kg

Connection

Bipolar

A+	A-	B+	B-
Black	Green	Red	Blue

Unipolar

A+	O+	A-	B+	O-	B-
Black	Yellow	Green	Red	White	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Unipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	135
Holding Torque(oz.in)	191.2
Inductance(mH)	18
Phase Resistance(ohms)	8.6
Rated Current(A)	1
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	76
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	6
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	6.35
Shaft Length(mm)	20.6
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	1000
