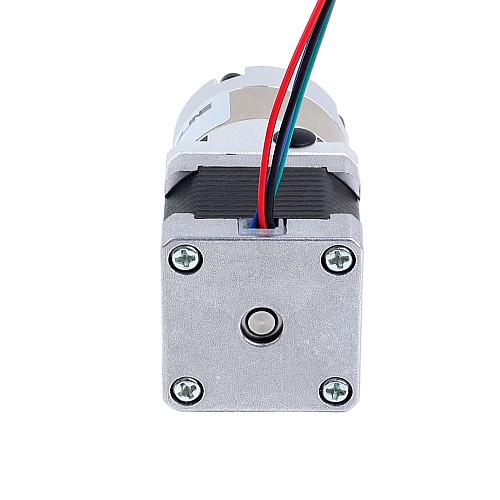

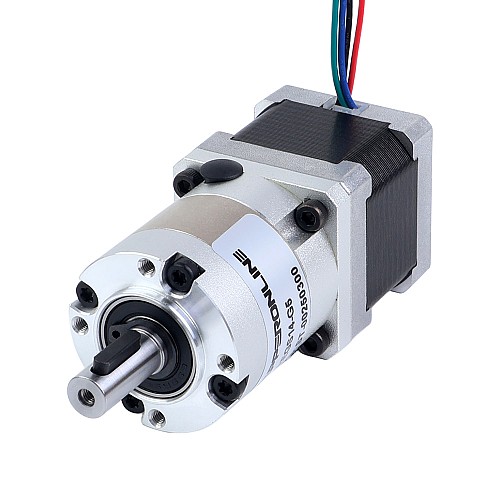

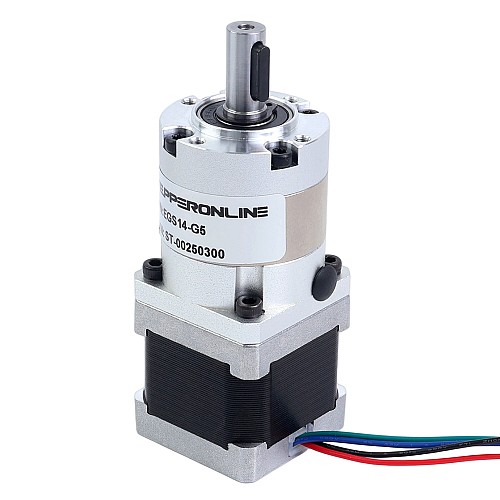

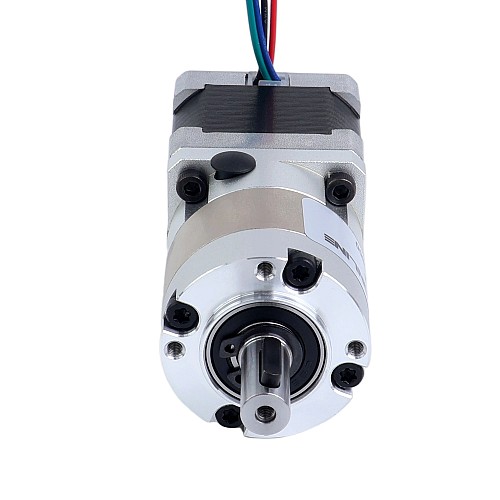

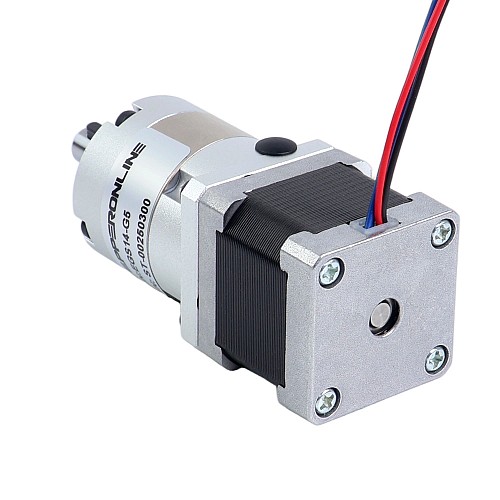

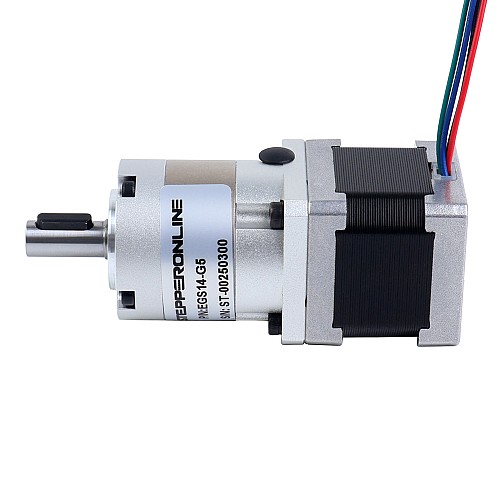

Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox

Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox - 14HS13-1004S-EGS5 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox - 14HS13-1004S-EGS5 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox - 14HS13-1004S-EGS5 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox - 14HS13-1004S-EGS5 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox - 14HS13-1004S-EGS5 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox - 14HS13-1004S-EGS5 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox - 14HS13-1004S-EGS5 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox - 14HS13-1004S-EGS5 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox - 14HS13-1004S-EGS5 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox - 14HS13-1004S-EGS5 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox - 14HS13-1004S-EGS5 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox - 14HS13-1004S-EGS5 | StepperOnline CA
14HS13-1004S-EGS5
Output Shaft TypeKeyway
Single Shaft/Dual ShaftSingle Shaft
Frame Size(mm)Nema 14 (35 x 35)
Product TypeGeared Stepper Motor
Question

Downloads

14HS13-1004S-EGS5_Full_Datasheet.pdfPDF · 60.16KB
Same series
ModelOutput Shaft TypeSingle Shaft/Dual ShaftFrame Size(mm)Product TypePriceStock
14HS13-1004S-EGS100KeywaySingle ShaftNema 14 (35 x 35)Geared Stepper MotorC$83.96In stock
14HS13-1004S-EGS15KeywaySingle ShaftNema 14 (35 x 35)Geared Stepper MotorC$83.96In stock
14HS13-1004S-EGS20KeywaySingle ShaftNema 14 (35 x 35)Geared Stepper MotorC$83.96In stock
14HS13-1004S-EGS45KeywaySingle ShaftNema 14 (35 x 35)Geared Stepper MotorC$83.96In stock
14HS13-1004S-EGS5KeywaySingle ShaftNema 14 (35 x 35)Geared Stepper MotorC$40.79In stock
14HS20-1504S-EGS100KeywaySingle ShaftNema 14 (35 x 35)Geared Stepper MotorC$87.10In stock
14HS20-1504S-EGS20KeywaySingle ShaftNema 14 (35 x 35)Geared Stepper MotorC$87.10In stock
14HS20-1504S-EGS45KeywaySingle ShaftNema 14 (35 x 35)Geared Stepper MotorC$87.10In stock
14HS20-1504S-EGS5KeywaySingle ShaftNema 14 (35 x 35)Geared Stepper MotorC$68.74In stock
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox
This Nema 14 stepper motor comes with a holding torque of 0.18Nm(25.49oz.in) and is equipped with a ... Read More
0 reviews • Write a review
from
C$40.79
5 or more: C$39.32
10 or more: C$37.98
50 or more: C$36.71
100 or more: C$35.53

Select a country to see live inventory

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This Nema 14 stepper motor comes with a holding torque of 0.18Nm(25.49oz.in) and is equipped with a high-precision EG series gearbox with a gear ratio of 5:1. Compared to the motors with PG series gearboxes, precision and accuracy of this motor with EG series gearbox has been significantly improved, with a maximum backlash of up to 15arcmin.
With its superior precision and reliability, motors with EG series delivers outstanding performance, making it the ideal choice for applications where accuracy, durability and value are critical.

Electrical Specification

  • Part Number: 14HS13-1004S-EGS5
  • Motor Type: Bipolar Stepper
  • Holding Torque without Gearbox: 0.18Nm(25.49oz.in)
  • Rated Current/phase: 1.00A
  • Phase Resistance: 4.20ohms±10%
  • Inductance: 6.00mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Gearbox Specification

  • Gearbox Type: Spur Planetary
  • Gear Material: Alloy Steel
  • Gear Ratio: 5:1
  • Efficiency: 96%
  • Backlash at No-load:<=15arcmin
  • Maximum Permissible Torque: 6.50Nm(920.48oz.in)
  • Moment Permissible Torque: 13.00Nm(1840.95oz.in)

Physical Specification

  • Frame Size: 35 x 35mm
  • Motor Length: 34mm
  • Gearbox Length: 40mm
  • Output Shaft Type: Keyway
  • Output Shaft Diameter: Φ8mm
  • Output Shaft Length: 20mm

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Product Type
Product Type Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Current(A) 1.0
Has Torque/Thrust Curve? No
Holding Torque w/o Gearbox(N.m) 0.18
Inductance(mH) 6.0
Phase Resistance(ohms) 4.2
Physical Specification
Backlash at No-load <=15 arcmin
Frame Size(mm) Nema 14 (35 x 35)
Gear Material Alloy Steel
Gear Ratio(xx:1) 5
Gearbox Type Precision Planetary
IP Rating 40
No. of Lead 4
Output Shaft Type Keyway
Shaft Diameter(mm) 8
Shaft Length(mm) 20
Single Shaft/Dual Shaft Single Shaft
