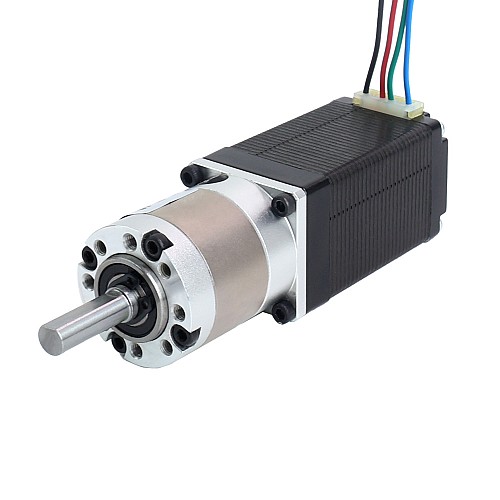

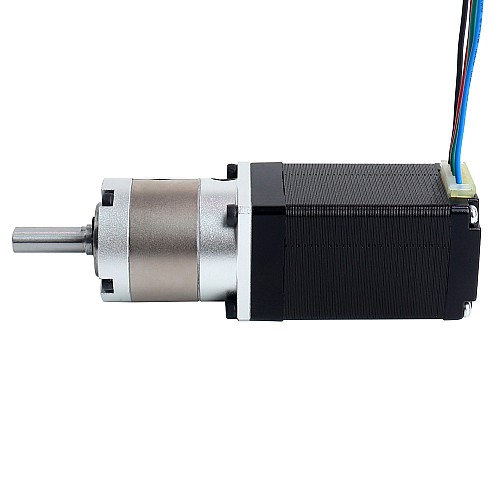

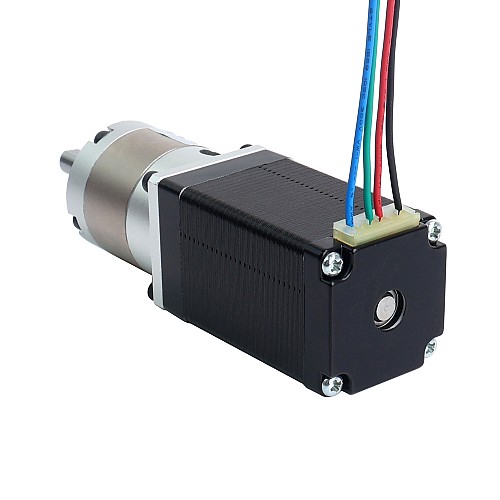

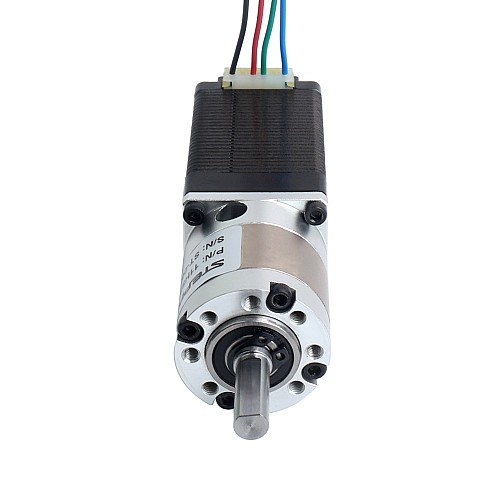

Nema 11 Stepper Motor Bipolar L=51mm w/ Gear Ratio 10:1 EG Series Planetary Gearbox

0 reviews - Write a review

€46.74

5 + €43.19

10 + €40.14

50 + €37.49

100 + €35.17

In Stock: 10000
Model: 11HS20-0704S-EGS10
Gross Weight: 0.36kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 34

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This Nema 11 stepper motor with a holding torque of 12Ncm(16.99oz.in) is equipped with a high-precision planetary gearbox. It has a gear ratio of 10:1 and a maximum backlash of 15arc-min. It is a good solution for applications that require good accuracy and reliability at an exceptional value.

Electrical Specification

Part Number: 11HS20-0704S-EGS10
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque Without Gearbox: 12Ncm(16.99oz.in)
Rated Current/phase: 0.70A
Phase Resistance: 8.0ohms
Inductance: 5.2mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 10 : 1
Efficiency: 96%
Backlash at No-load: <=15arcmin
Max.Permissible Torque: 1Nm(8.85lb-in)
Moment Permissible Torque: 2Nm(17.7lb-in)
Noise: <=55dB
Lifetime: 20000hours

Physical Specifications

Frame Size: 28 x 28mm
Motor Length: 51mm
Gearbox Length: 33mm
Shaft Diameter: Φ6mm
Shaft Length: 20mm
D-cut length: 15mm
Number of Wires: 4
Wire Length: 500mm
Weight: 0.3kg

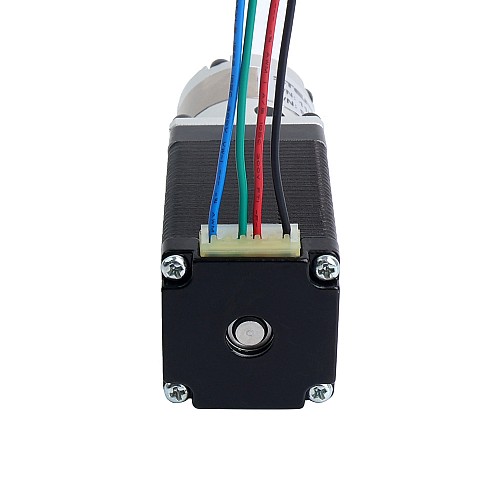

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	0.70
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.12
Inductance(mH)	5.2
Phase Resistance(ohms)	8.0
Physical Specification
Backlash at No-load	<=15arcmin
Frame Size(mm)	Nema 11 (28 x 28)
Gear Material	Alloy Steel
Gear Ratio(xx:1)	10
Gearbox Type	Precision Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Single Shaft
