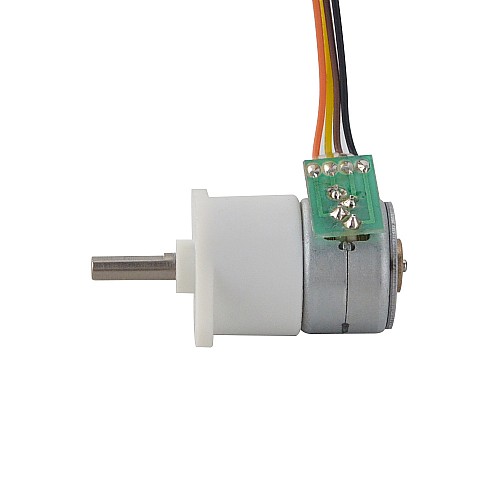

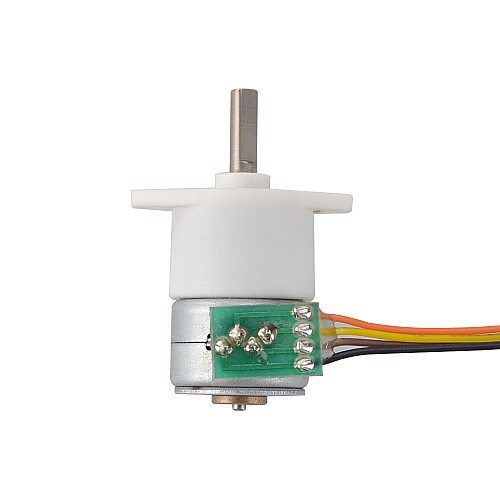

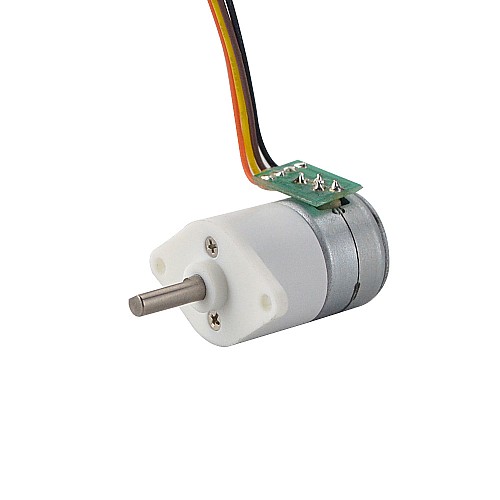

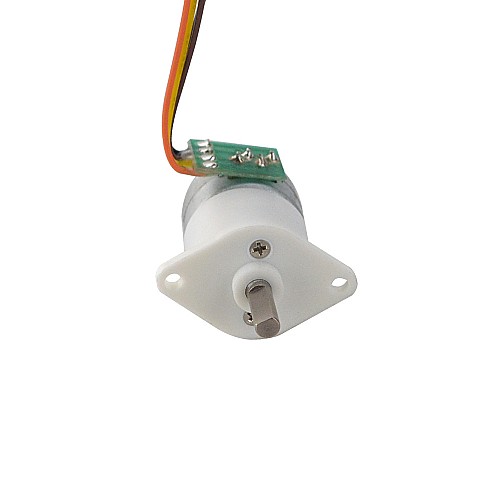

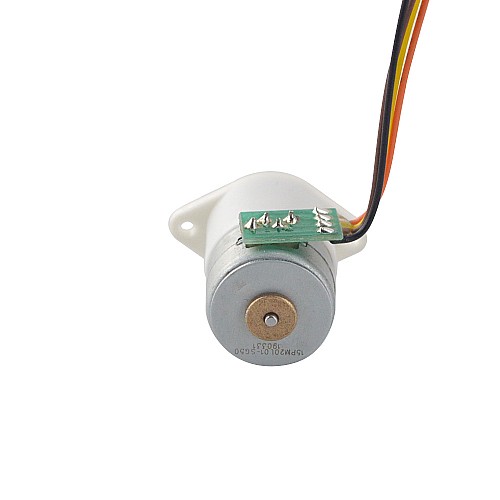

Φ15x22.3mm PM Stepper motor W/Gear Ratio 50:1 Spur gearbox

3 reviews - Write a review

C$18.50

5 + C$17.38

10 + C$16.38

50 + C$15.50

100 + C$14.70

In Stock: 10000
Model: 15PM20L01-SG50
Gross Weight: 0.07kg
Certificated: ISO, CE

Sold: 365

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 15PM20L01-SG50
Motor Type: PM Stepper
Phase: 2
Step Angle: 0.36deg
Rated Current/phase: 0.5A
Holding Torque: 53.9mN.m(7.634oz.in)
Phase Resistance: 6±7%ohms(25℃)
Insulation Class: B 130°C[266°F]
Inductance: 1.4mH±20%

Physical Specification

Frame Size: Φ15mm
Body Length: 22.3mm
Gearbox Length: 11.3mm
Shaft Diameter: Φ3mm
Shaft Length: 11.5mm
D-cut Length: 8mm
Gearbox Type: Spur
Gear Ratio: 50

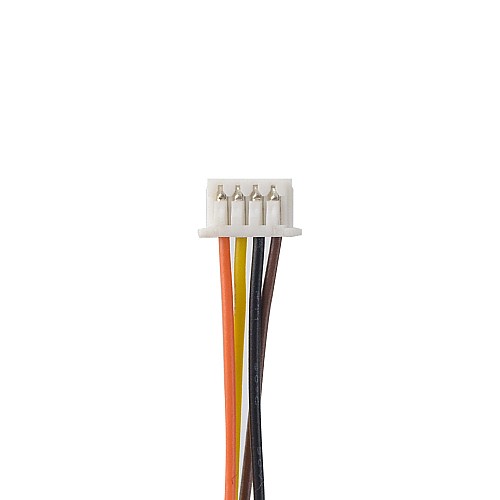

Number of Leads: 4 with connector Molex 4Y
Lead Length: 50mm
Weight: 14.2g

Connection

A+	A-	B+	B-
Orange	Yellow	Black	Brown

Product Type
Product Type	PM Geared Stepper Motor
Electrical Specification
Holding Torque(mN.m)	53.9
Inductance(mH)	1.4
Phase Resistance(ohms)	6
Rated Current(A)	0.5
Step Angle(deg.)	0.36
Physical Specification
Body Length(mm)	22.3
Frame Size(mm)	Φ15
Gear Ratio(xx:1)	50
Gearbox Type	spur
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	50
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	3
Shaft Length(mm)	11.5
Weight(g)	14.2
