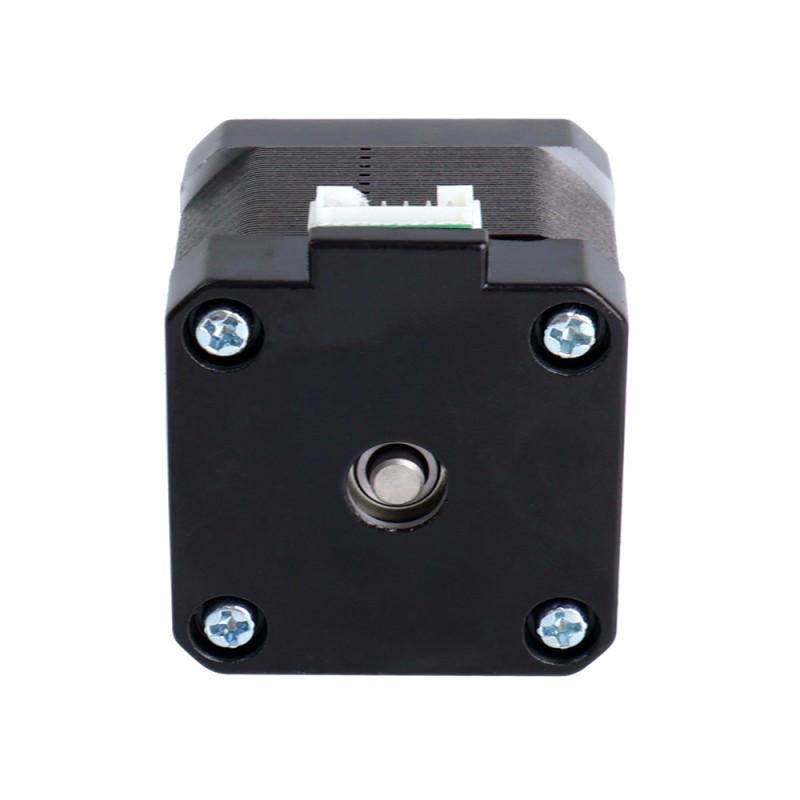

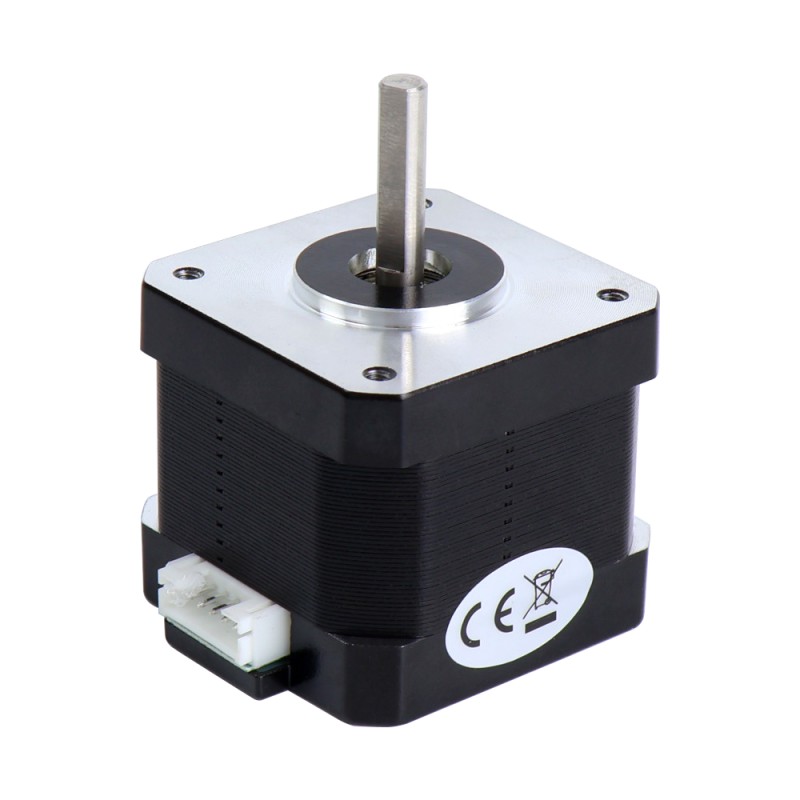

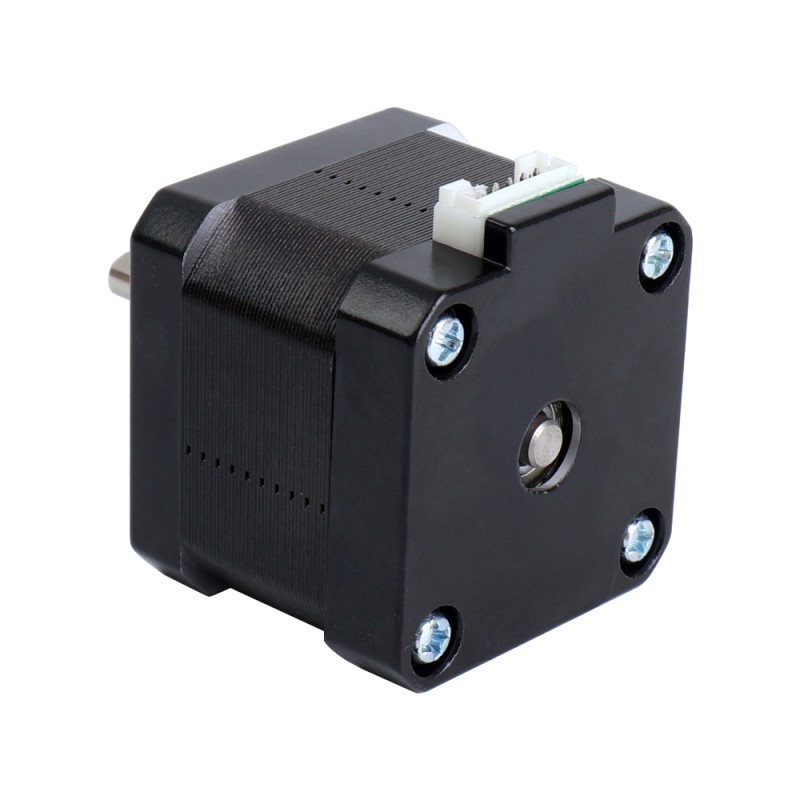

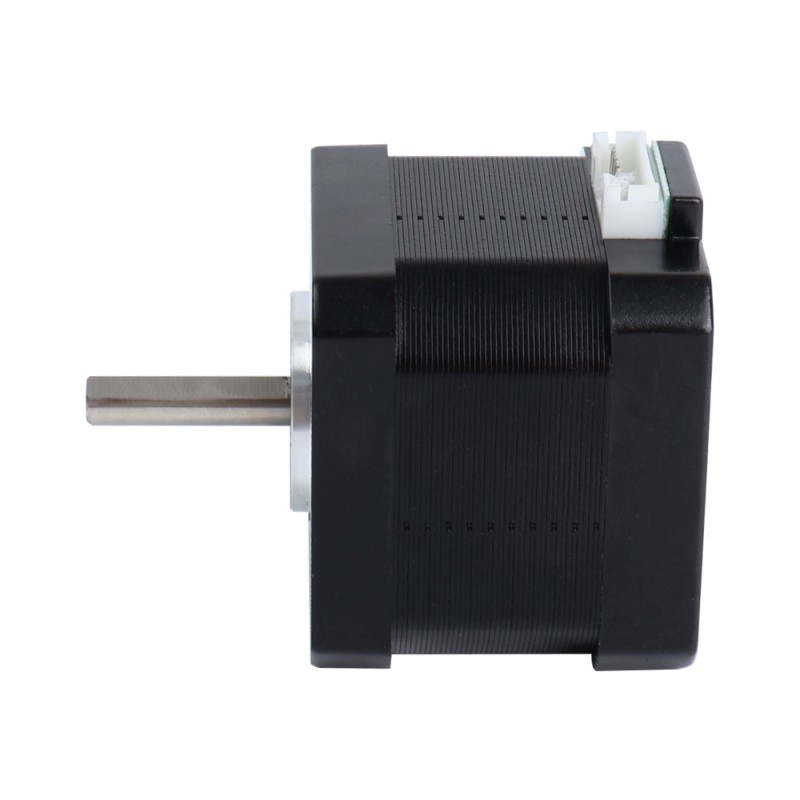

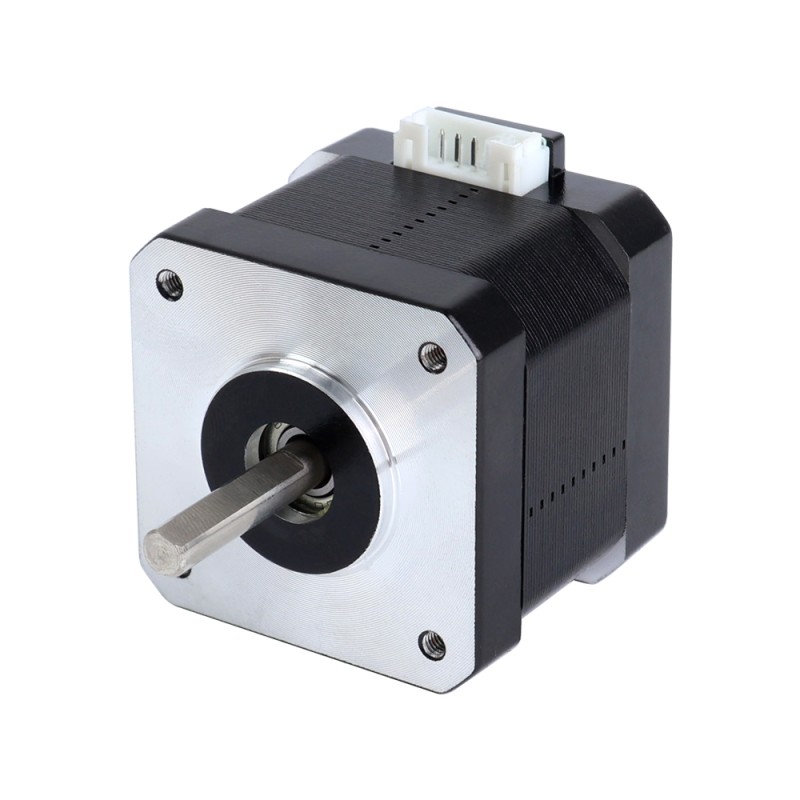

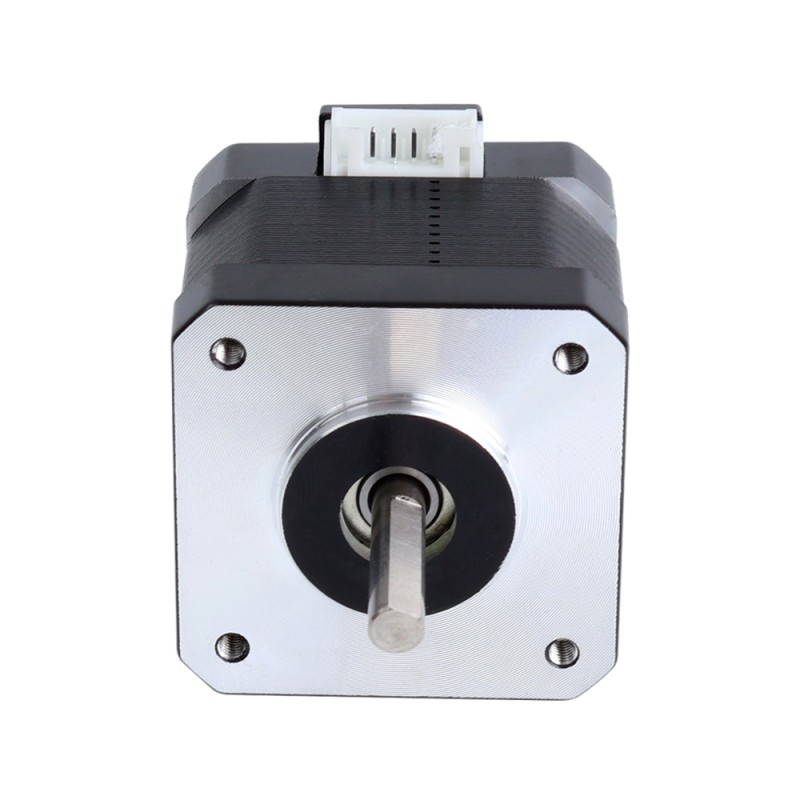

Nema 17 Bipolar 42Ncm(59.48oz.in) 1.7A 42x42x37.5mm 4 Wires w/ 1m Cable & Connector

Nema 17 Bipolar 42Ncm(59.48oz.in) 1.7A 42x42x37.5mm 4 Wires w/ 1m Cable & Connector - 17HS15-1704S | StepperOnline CA
Nema 17 Bipolar 42Ncm(59.48oz.in) 1.7A 42x42x37.5mm 4 Wires w/ 1m Cable & Connector - 17HS15-1704S | StepperOnline CA
Nema 17 Bipolar 42Ncm(59.48oz.in) 1.7A 42x42x37.5mm 4 Wires w/ 1m Cable & Connector - 17HS15-1704S | StepperOnline CA
Nema 17 Bipolar 42Ncm(59.48oz.in) 1.7A 42x42x37.5mm 4 Wires w/ 1m Cable & Connector - 17HS15-1704S | StepperOnline CA
Nema 17 Bipolar 42Ncm(59.48oz.in) 1.7A 42x42x37.5mm 4 Wires w/ 1m Cable & Connector - 17HS15-1704S | StepperOnline CA
Nema 17 Bipolar 42Ncm(59.48oz.in) 1.7A 42x42x37.5mm 4 Wires w/ 1m Cable & Connector - 17HS15-1704S | StepperOnline CA
Nema 17 Bipolar 42Ncm(59.48oz.in) 1.7A 42x42x37.5mm 4 Wires w/ 1m Cable & Connector - 17HS15-1704S | StepperOnline CA
Nema 17 Bipolar 42Ncm(59.48oz.in) 1.7A 42x42x37.5mm 4 Wires w/ 1m Cable & Connector - 17HS15-1704S | StepperOnline CA
Nema 17 Bipolar 42Ncm(59.48oz.in) 1.7A 42x42x37.5mm 4 Wires w/ 1m Cable & Connector - 17HS15-1704S | StepperOnline CA
Nema 17 Bipolar 42Ncm(59.48oz.in) 1.7A 42x42x37.5mm 4 Wires w/ 1m Cable & Connector - 17HS15-1704S | StepperOnline CA
Nema 17 Bipolar 42Ncm(59.48oz.in) 1.7A 42x42x37.5mm 4 Wires w/ 1m Cable & Connector - 17HS15-1704S | StepperOnline CA
Nema 17 Bipolar 42Ncm(59.48oz.in) 1.7A 42x42x37.5mm 4 Wires w/ 1m Cable & Connector - 17HS15-1704S | StepperOnline CA
Nema 17 Bipolar 42Ncm(59.48oz.in) 1.7A 42x42x37.5mm 4 Wires w/ 1m Cable & Connector - 17HS15-1704S | StepperOnline CA
Nema 17 Bipolar 42Ncm(59.48oz.in) 1.7A 42x42x37.5mm 4 Wires w/ 1m Cable & Connector - 17HS15-1704S | StepperOnline CA
17HS15-1704S-SALE
Output Shaft TypeD
No. of Lead4
Single Shaft/Dual ShaftSingle Shaft
Holding Torque(Ncm)42
Question

Downloads

17HS15-1704S_Full_Datasheet.pdfPDF · 135.23KB
Same series
ModelOutput Shaft TypeNo. of LeadSingle Shaft/Dual ShaftHolding Torque(Ncm)PriceStock
17HS15-0404SD4Single Shaft40C$14.21In stock
17HS15-0406SD6Single Shaft26C$13.24In stock
17HS15-0854SD4Single Shaft36C$13.24In stock
17HS15-0854S-C1D4Single Shaft36C$15.59Backorder
17HS15-0854S-C2D4Single Shaft36C$10.61In stock
17HS15-1206SD4Single Shaft26C$13.24Backorder
17HS15-1504S-X1D4Single Shaft45C$13.24In stock
17HS15-1504S-X1-USEDD4Single Shaft45C$6.63In stock
17HS15-1504S1D4Single Shaft45C$13.24In stock
17HS15-1584SO4Single Shaft36C$12.30In stock
17HS15-1684SD4Single Shaft36C$13.54In stock
17HS15-1704S-SALED4Single Shaft42C$5.45In stock
17HS16-2004DD4Dual Shaft45C$13.24In stock
17HS16-2004S-C4D4Single Shaft45C$11.38In stock
17HS16-2004S1D4Single Shaft45C$13.24In stock
17HS19-0406SD6Single Shaft32C$15.14In stock
17HS19-0854SD4Single Shaft44C$15.14In stock
17HS19-1504HHollow4Dual Shaft36C$25.53In stock
17HS19-1684DO4Dual Shaft44C$15.14In stock
17HS19-1684S1D4Single Shaft45C$15.14In stock
17HS19-2004DD4Dual Shaft59C$15.14In stock
17HS19-2004S1D4Single Shaft59C$13.95In stock
17HS19-2004S2D4Single Shaft59C$15.52In stock
17HS19-2504SO4Single Shaft60C$14.43In stock
17HS24-0644SD4Single Shaft65C$19.20In stock
17HS24-1206DD6Dual Shaft65C$22.04In stock
17HS24-1206SD6Single Shaft65C$21.55In stock
17HS24-2104DD4Dual Shaft76C$18.92In stock
17HS24-2104SD4Single Shaft76C$19.20In stock
17HS26-2304SD4Single Shaft79C$33.52In stock
View all in category
Nema 17 Bipolar 42Ncm(59.48oz.in) 1.7A 42x42x37.5mm 4 Wires w/ 1m Cable & Connector
This Nema 17 bipolar stepper motor offers a holding torque of 42Ncm(59.48oz.in) and a 1.8° step angl... Read More
0 reviews • Write a review
from Save -20%
C$5.45
C$6.82

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

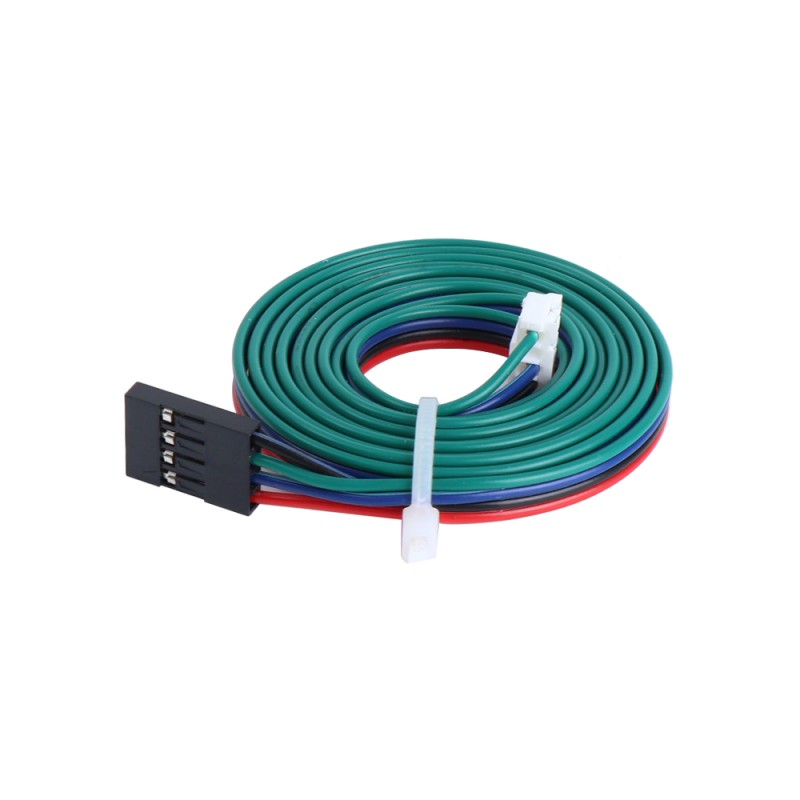

This Nema 17 bipolar stepper motor offers a holding torque of 42Ncm(59.48oz.in) and a 1.8° step angle. Designed for stable and reliable performance, it has a rated current of 1.7A per phase. The motor comes with a 1-meter cable and a 4-pin 2.54mm pitch Harwin female connector for easy plug-and-play installation. It is an ideal power solution for high-precision motion control in applications such as 3D printers, CNC equipment, and robotics projects.

Electrical Specification

  • Manufacturer Part Number: 17HS15-1704S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 42Ncm(59.48oz.in)
  • Rated Current/phase: 1.70A
  • Phase Resistance: 2.3ohms
  • Inductance: 4.0mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 37.5mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 22mm
  • Number of Leads: 4
  • Cable Length: 1000mm
  • Weight: 280g

Connection

A+
A-
B+
B-
Red
Blue
Black
Green
Product Type
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? No
Holding Torque(Ncm) 42
Holding Torque(oz.in) 59.48
Inductance(mH) 4.0
Phase Resistance(ohms) 2.3
Rated Current(A) 1.7
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 37.5
Cable Length(mm) 1000
Frame Size(mm) Nema 17 (42 x 42)
IP Rating 40
No. of Lead 4
Output Shaft Type D
Product Series S
Shaft Diameter(mm) 5
Shaft Length(mm) 22
Single Shaft/Dual Shaft Single Shaft
