Menu
Your Cart

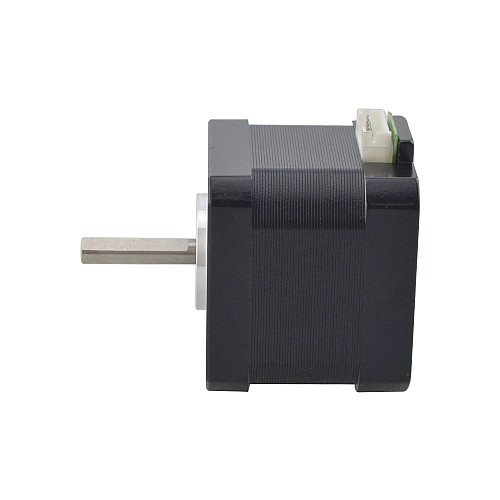

E Series Nema 17 Bipolar 42Ncm(59.49oz.in) 1.5A 42x42x38mm 4 Wires w/ 1m Cable & Connector

E Series Nema 17 Bipolar 42Ncm(59.49oz.in) 1.5A 42x42x38mm 4 Wires w/ 1m Cable & Connector - 17HE15-1504S | StepperOnline CA
E Series Nema 17 Bipolar 42Ncm(59.49oz.in) 1.5A 42x42x38mm 4 Wires w/ 1m Cable & Connector - 17HE15-1504S | StepperOnline CA
E Series Nema 17 Bipolar 42Ncm(59.49oz.in) 1.5A 42x42x38mm 4 Wires w/ 1m Cable & Connector - 17HE15-1504S | StepperOnline CA
E Series Nema 17 Bipolar 42Ncm(59.49oz.in) 1.5A 42x42x38mm 4 Wires w/ 1m Cable & Connector - 17HE15-1504S | StepperOnline CA
E Series Nema 17 Bipolar 42Ncm(59.49oz.in) 1.5A 42x42x38mm 4 Wires w/ 1m Cable & Connector - 17HE15-1504S | StepperOnline CA
E Series Nema 17 Bipolar 42Ncm(59.49oz.in) 1.5A 42x42x38mm 4 Wires w/ 1m Cable & Connector - 17HE15-1504S | StepperOnline CA
E Series Nema 17 Bipolar 42Ncm(59.49oz.in) 1.5A 42x42x38mm 4 Wires w/ 1m Cable & Connector - 17HE15-1504S | StepperOnline CA
Hot
E Series Nema 17 Bipolar 42Ncm(59.49oz.in) 1.5A 42x42x38mm 4 Wires w/ 1m Cable & Connector - 17HE15-1504S | StepperOnline CA
E Series Nema 17 Bipolar 42Ncm(59.49oz.in) 1.5A 42x42x38mm 4 Wires w/ 1m Cable & Connector - 17HE15-1504S | StepperOnline CA
E Series Nema 17 Bipolar 42Ncm(59.49oz.in) 1.5A 42x42x38mm 4 Wires w/ 1m Cable & Connector - 17HE15-1504S | StepperOnline CA
E Series Nema 17 Bipolar 42Ncm(59.49oz.in) 1.5A 42x42x38mm 4 Wires w/ 1m Cable & Connector - 17HE15-1504S | StepperOnline CA
E Series Nema 17 Bipolar 42Ncm(59.49oz.in) 1.5A 42x42x38mm 4 Wires w/ 1m Cable & Connector - 17HE15-1504S | StepperOnline CA
E Series Nema 17 Bipolar 42Ncm(59.49oz.in) 1.5A 42x42x38mm 4 Wires w/ 1m Cable & Connector - 17HE15-1504S | StepperOnline CA
E Series Nema 17 Bipolar 42Ncm(59.49oz.in) 1.5A 42x42x38mm 4 Wires w/ 1m Cable & Connector - 17HE15-1504S | StepperOnline CA
E Series Nema 17 Bipolar 42Ncm(59.49oz.in) 1.5A 42x42x38mm 4 Wires w/ 1m Cable & Connector
34 reviews - Write a review
C$6.99
5 + C$6.69
10 + C$6.42
50 + C$6.19
100 + C$5.95
  • In Stock: 10000
  • Model: 17HE15-1504S
  • Gross Weight: 0.32kg
  • Certificated: ISO, CE, UKCA, RoHS
Sold: 4612

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

  • Manufacturer Part Number: 17HE15-1504S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 42Ncm(59.49oz.in)
  • Rated Current/phase: 1.50A
  • Phase Resistance: 2.3ohms
  • Inductance: 4.0mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 38mm
  • Shaft Diameter: Φ5mm
  • D-cut Length: 20mm
  • Shaft Length: 23.5mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 280g

Connection

A+
A-
B+
B-
Black
Blue
Green
Red
This motor is now available in packs of 3 and 5. It has a better price. For more details, please see 3-17HE15-1504S and 5-17HE15-1504S.
Product Type
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 42
Holding Torque(oz.in) 59.49
Inductance(mH) 4.0
Phase Resistance(ohms) 2.3
Rated Current(A) 1.5
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 38
Frame Size(mm) Nema 17 (42 x 42)
Inventory Method Dedicated Inventory
IP Rating 40
Lead Length(mm) 1000
No. of Lead 4
Output Shaft Type D
Product Series E
Shaft Diameter(mm) 5
Shaft Length(mm) 23.5
Single Shaft/Dual Shaft Single Shaft
Weight(g) 280



  • Motor Shaft
  • Cable
  • Connector
  • Encoder
  • Brake
  • Gearbox


File Size
17HE15-1504S.STEP 1.02MB Download
17HE15-1504S_Torque_Curve.pdf 118.56KB Download
17HE15-1504S_Full_Datasheet.pdf 214.43KB Download

Write a review

Note: HTML is not translated!
Bad Good
The product is currently Out-of-Stock. Enter your email address below and we will notify you as soon as the product is available.
Name
Email
Comments
