Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 300mm Pin Connector
0 reviews - Write a review
C$0.00
  • In Stock: 1
  • Model: 17HS15-1504S-X
  • Gross Weight: 0.38kg
  • Certificated: ISO, CE, UKCA, RoHS
Sold: 456
Add to Cart
Question
Add to Wish List Compare this Product
This product has a minimum quantity of 999
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

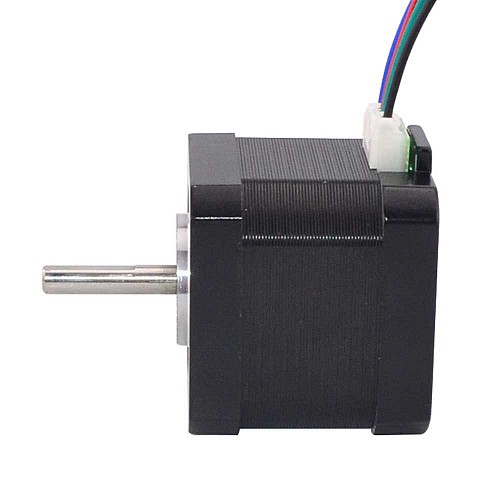

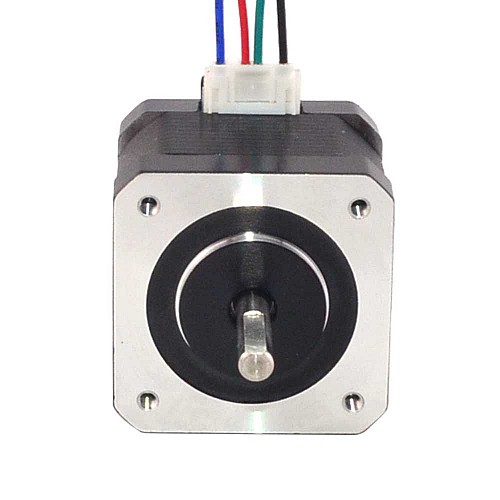

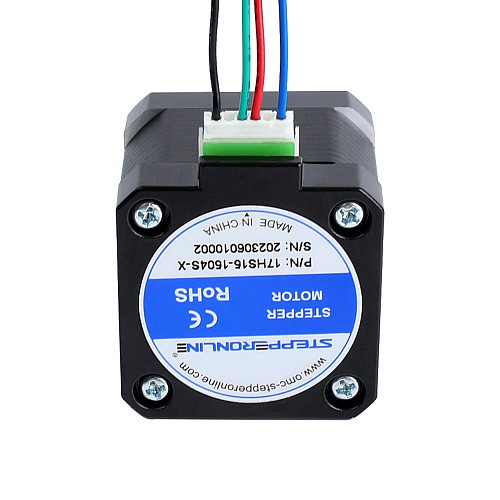

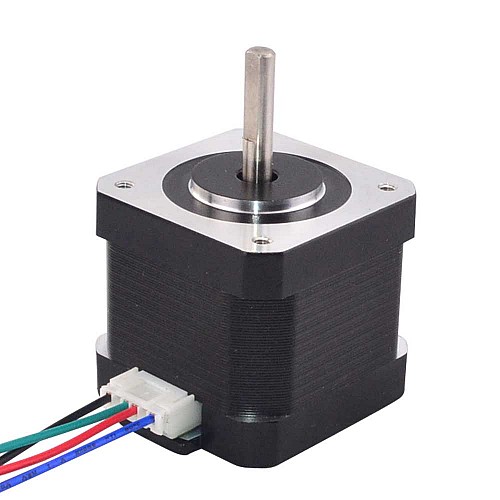

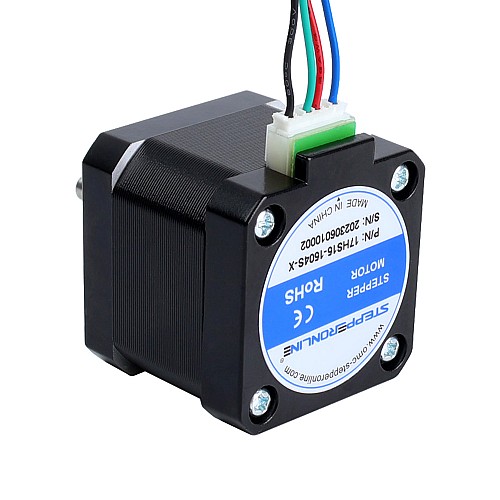

This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x39mm. It has 4 wires, each phase draws current 1.5A, with holding torque 45Ncm(63.74oz.in).

Electrical Specification

  • Manufacturer Part Number: 17HS15-1504S-X
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 45Ncm(63.74oz.in)
  • Rated Current/phase: 1.50A
  • Phase Resistance: 2.3ohms
  • Inductance: 4.4mH±20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 39mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 280g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 17HS15-1504S-X1.
Product Type
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 45
Holding Torque(oz.in) 63.74
Inductance(mH) 4.4
Phase Resistance(ohms) 2.3
Rated Current(A) 1.5
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 39
Frame Size(mm) Nema 17 (42 x 42)
Inventory Method Dedicated Inventory
IP Rating 40
Lead Length(mm) 300
No. of Lead 4
Output Shaft Type D
Product Series S
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Single Shaft/Dual Shaft Single Shaft
Weight(g) 280



File Size
17HS15-1504S-X_Full_Datasheet.pdf 143.81KB Download
17HS15-1504S-X_Torque_Curve.pdf 89.22KB Download
