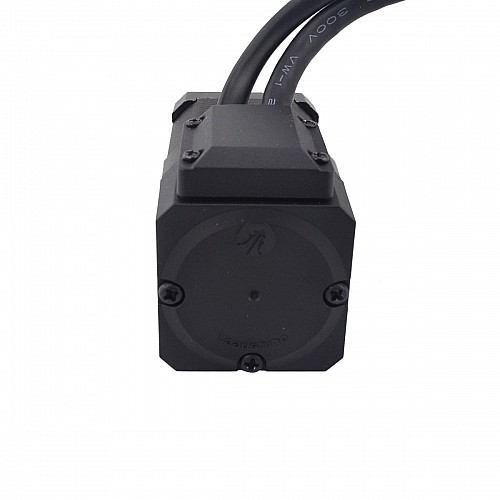

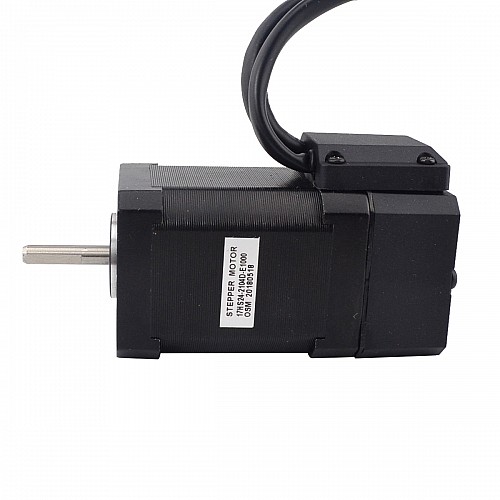

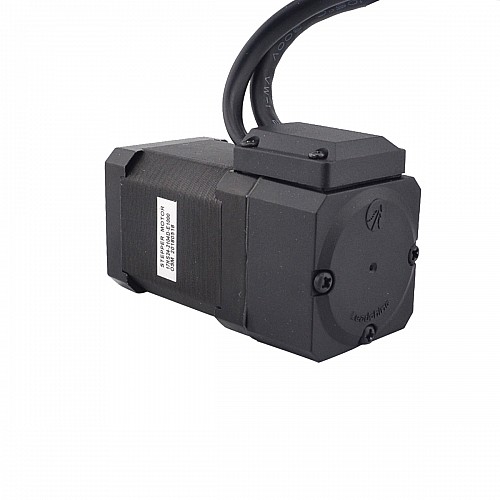

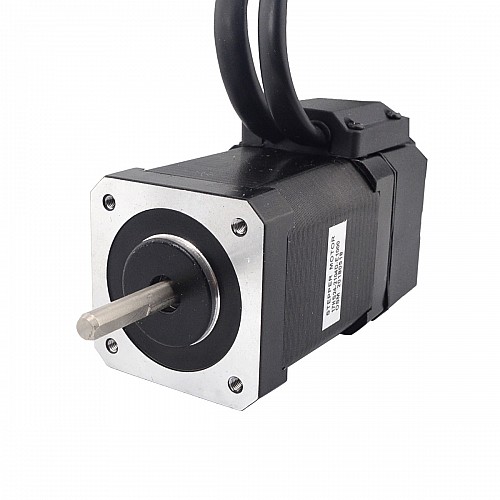

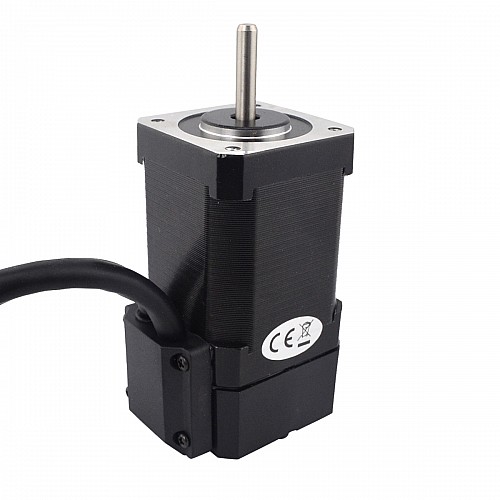

Nema 17 Closed Loop Stepper Motor 65Ncm(92.05oz.in) Encoder 1000PPR(4000CPR)

Hot

Nema 17 Closed Loop Stepper Motor 65Ncm(92.05oz.in) Encoder 1000PPR(4000CPR)

2 reviews - Write a review

C$0.00

In Stock: 1
Model: 17HS24-2104D-E1000
Gross Weight: 0.70kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Motor Specification

Manufacturer Part Number: 17HS24-2104D-E1000
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 0.65Nm(92.05oz.in)
Rated Current/phase: 2.10A
Voltage: 3.36V
Phase Resistance: 1.6ohms
Inductance: 3.00mH ± 20%(1KHz)
Frame Size: 42 x 42mm
Motor Length: 84mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-Cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm

Encoder Specification

Encoder Type: Optical Incremental
Driving Voltage : 4.5V to 5.5V
Output current : 20mA
Resolution: 1000PPR(4000CPR)
Output Signal: 2 Channels
Bore Diameter: Φ5mm
Output Frequency: ≤60MHz
Running Speed : ≤3600rpm
IP Protection: IP20

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	1	2	3	11	12	13
Encoder	EA+	VCC	GND	EB+	EB-	EA-

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 17HS24-2004D-E1K.

Product Type
Product Type	Closed Loop Stepper Motor
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	65
Holding Torque(oz.in)	92.05
Inductance(mH)	3
Output Circuit Type	Differential
Output Signal Channels	2
Phase Resistance(ohms)	1.6
Rated Current(A)	2.1
Physical Specification
Body Length(mm)	84
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	5
Shaft Length(mm)	24
