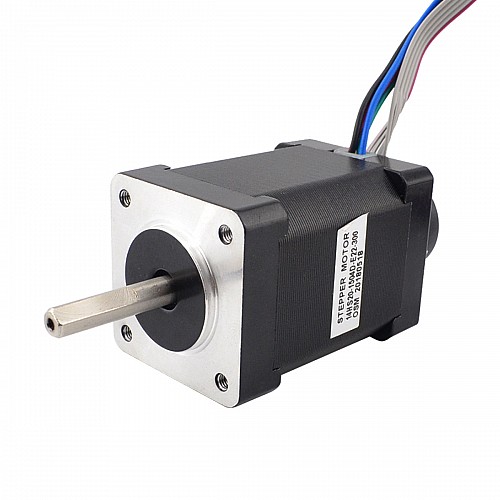

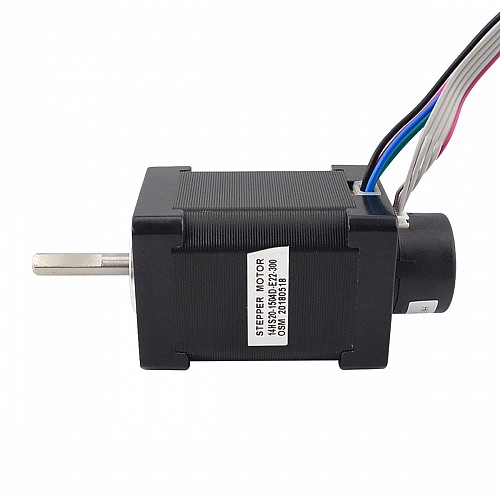

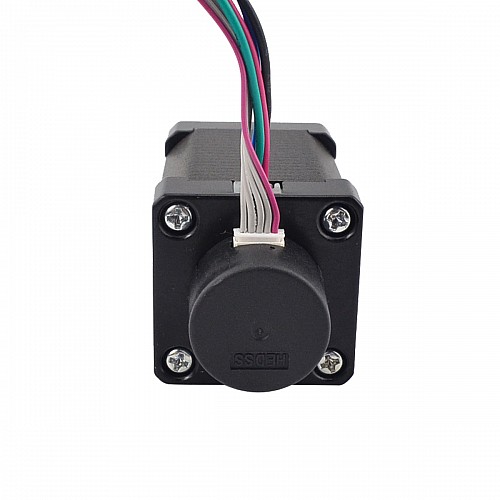

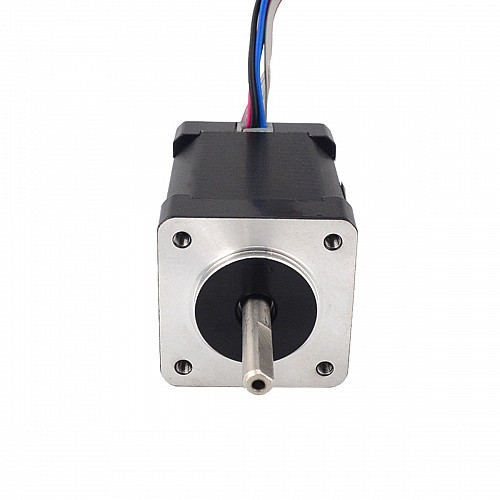

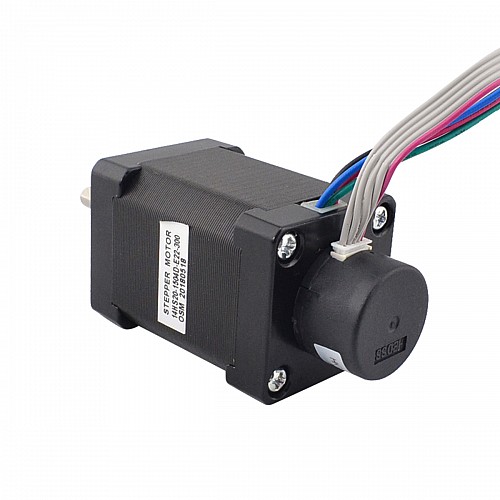

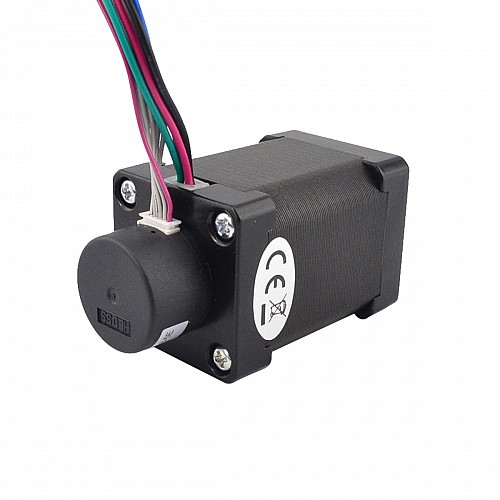

Nema 14 Closed Loop Stepper Motor 40Ncm(56.64oz.in) Encoder 300PPR

1 reviews - Write a review

C$65.16

5 + C$62.10

10 + C$59.30

50 + C$56.76

100 + C$54.42

In Stock: 10000
Model: 14HS20-1504D-E22-300
Gross Weight: 0.41kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Motor Specification

Manufacturer Part Number: 14HS20-1504D-E22-300
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 0.40Nm(56.64oz.in)
Rated Current/phase: 1.50A
Voltage: 4.20V
Phase Resistance: 2.80ohms
Inductance: 3.80mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 35 x 35mm
Motor Length: 66mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-Cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm

Encoder Specification

Encoder Type: Optical Incremental
Driving Voltage : 5VDC
Output current : ≤20mA
Resolution: 300PPR
Output Signal: 2 Channels
Shaft Diameter: Φ5mm
Output Frequency: ≤30KHz
Output Low Voltage: ≤0.3VDC
Output High Voltage: ≥3.4VDC

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	1	2	3	4	5
Encoder	0V	N.C	Ch B	+5V	Ch A

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Encoder Resolution	300PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	40
Holding Torque(oz.in)	56.64
Inductance(mH)	3.8
Output Circuit Type	Push-Pull (Single-Ended)
Output Signal Channels	2
Phase Resistance(ohms)	2.8
Rated Current(A)	1.5
Stepper Motor with	Encoder/Gearbox
Physical Specification
Body Length(mm)	66
Frame Size(mm)	Nema 14 (35 x 35)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	5
Shaft Length(mm)	24
