Nema 17 Bipolar 45Ncm(63.74oz.in) 2A 42x42x40mm 4 Wires w/ 1m Cable & Connector

Hot

Nema 17 Bipolar 45Ncm(63.74oz.in) 2A 42x42x40mm 4 Wires w/ 1m Cable & Connector

81 reviews - Write a review

C$13.51

5 + C$12.88

10 + C$12.30

50 + C$11.77

100 + C$11.29

In Stock: 10000
Model: 17HS16-2004S1
Gross Weight: 0.40kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

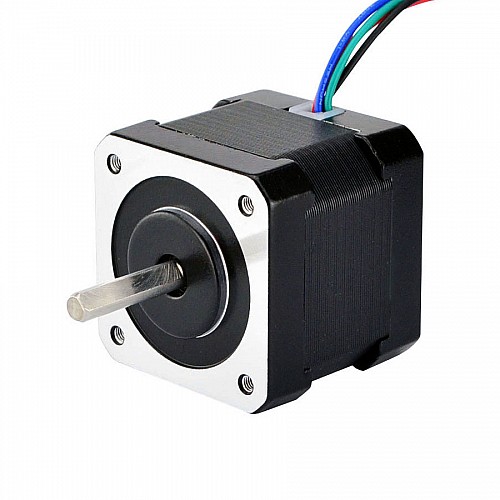

This is one of the most popular stepper motor in Nema 17 size, it with 1.8deg step and size 42x42x40mm, It has 4 wires with 1m cable and 2.54mm pitch connector, each phase draws 2.0A, with holding torque 45Ncm(63.74oz.in). This stepper motor is ideal for the RepRap Prusa, Mendel 90, Rostock and similar 3D printers, as well as CNC and robotics applications. Nema 17 datasheet is as the below.

Electrical Specification

Manufacturer Part Number: 17HS16-2004S1
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 45Ncm(63.74oz.in)
Rated Current/phase: 2A
Phase Resistance: 1.1ohms
Inductance: 2.6mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 40mm
Shaft Diameter: Φ5mm
Shaft Length: 23mm
D-cut Length: 21mm
Number of Leads: 4
Lead Length: 1000mm
Weight: 310g

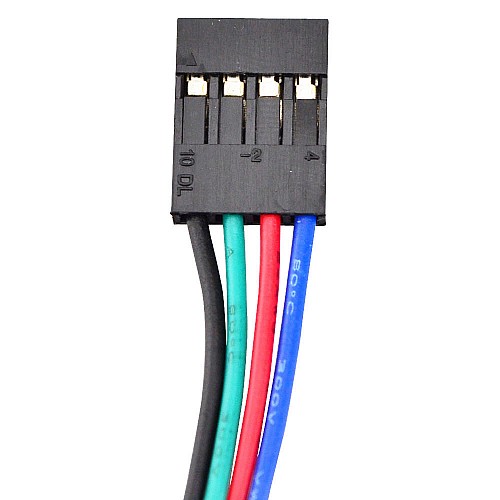

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Here is the updated version with a pluggable lead wire and smaller body. It's more suitable for your 3D printers: 17HS15-1504S-X1

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	45
Holding Torque(oz.in)	63.74
Inductance(mH)	2.6
Phase Resistance(ohms)	1.1
Rated Current(A)	2
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	40
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	1000
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	23
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	310
