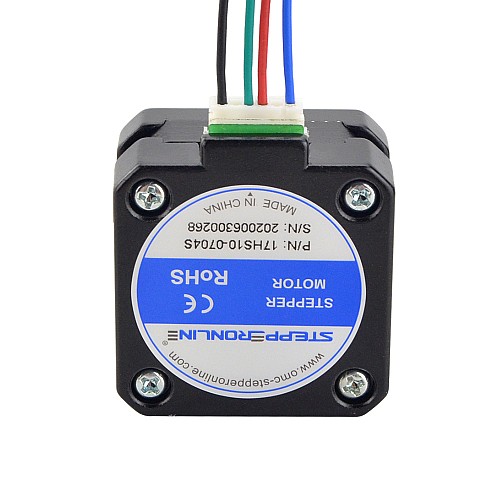

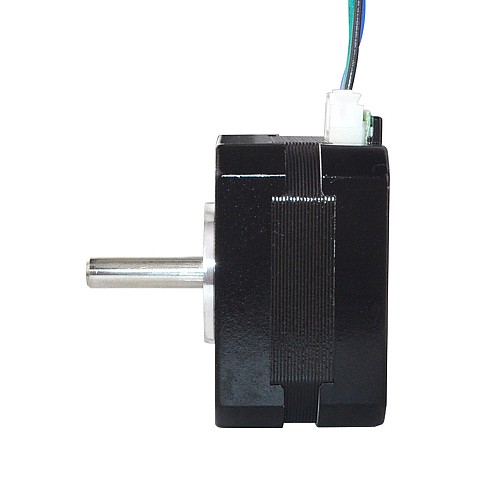

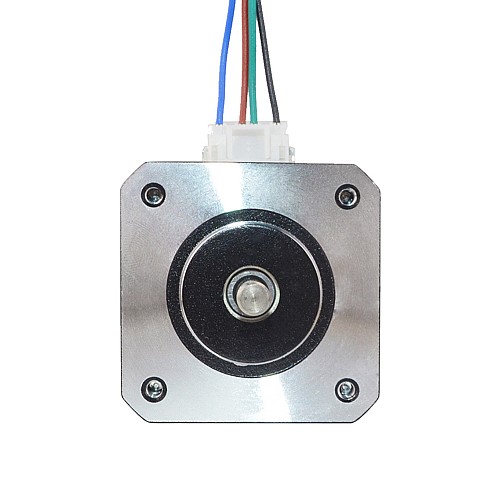

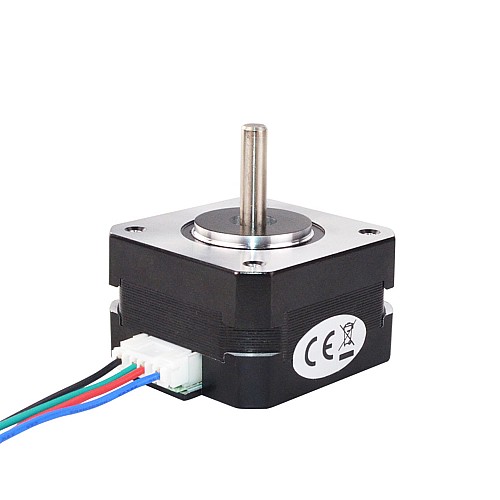

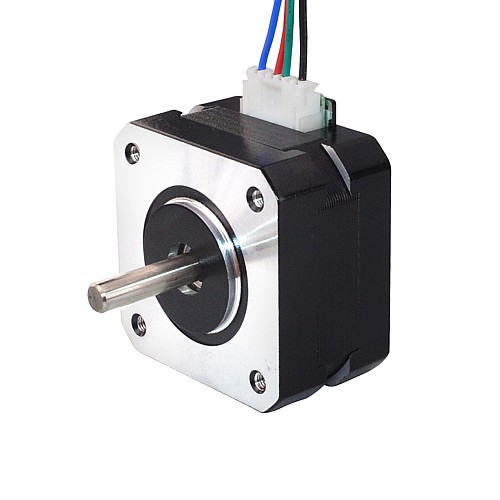

Nema 17 Bipolar 1.8deg 13Ncm(18.41oz.in) 0.7A 42x42x25mm 4 Wires

23 reviews - Write a review

€7.99

5 + €7.61

10 + €7.27

50 + €6.96

100 + €6.67

In Stock: 10000
Model: 17HS10-0704S
Gross Weight: 0.20kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 7649

Click country for real-time stock

Ships from

China

United States

Germany

Australia

Japan

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x25mm. It has 4 wires, each phase draws current 0.7A, with holding torque 13Ncm(18.41oz.in).

Electrical Specification

Manufacturer Part Number: 17HS10-0704S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 13Ncm(18.41oz.in)
Rated Current/phase: 0.7A
Phase Resistance: 4.2ohms
Inductance: 5.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 25mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
Number of Leads: 4
Lead Length: 300mm
Weight: 180g

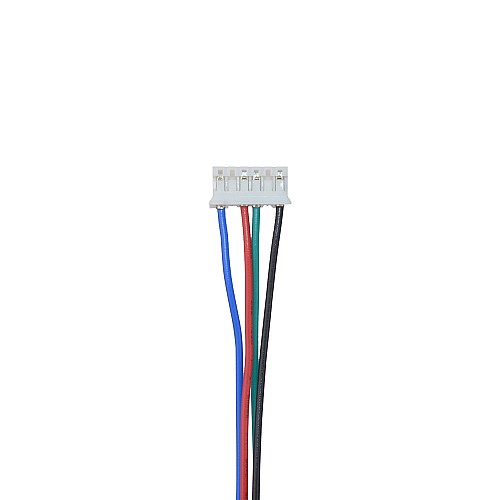

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	13
Holding Torque(oz.in)	18.41
Inductance(mH)	5.5
Phase Resistance(ohms)	4.2
Rated Current(A)	0.7
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	25
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	O
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	180
