Round Nema 14 Bipolar 0.9deg 5Ncm(7.08oz.in) 0.5A Φ36x12.5mm 4 Wires

2 reviews - Write a review

€14.12

5 + €13.47

10 + €12.86

50 + €12.30

100 + €11.80

In Stock: 10000
Model: 14HR05-0504S
Gross Weight: 0.10kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 4218

Click country for real-time stock

Ships from

China

United States

Germany

United Kingdom

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

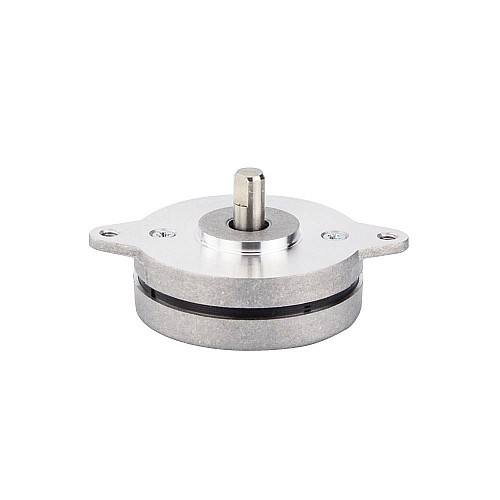

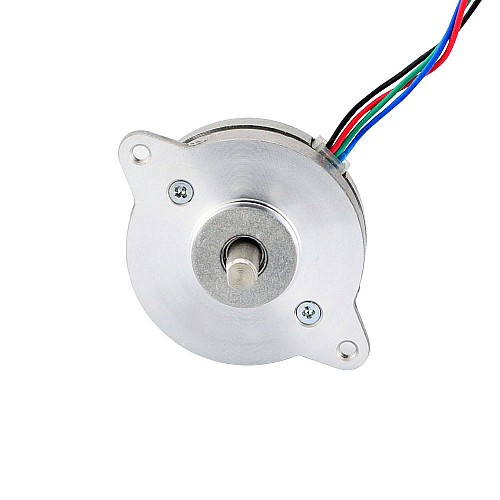

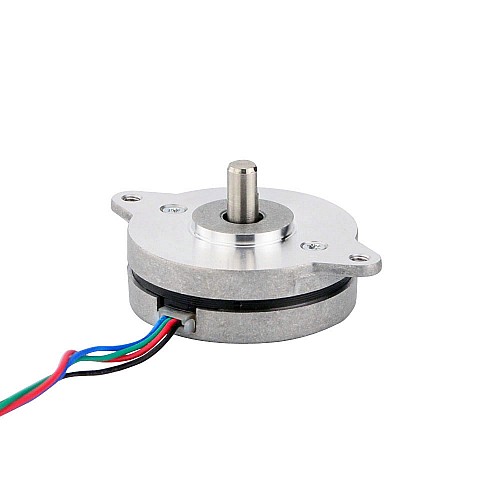

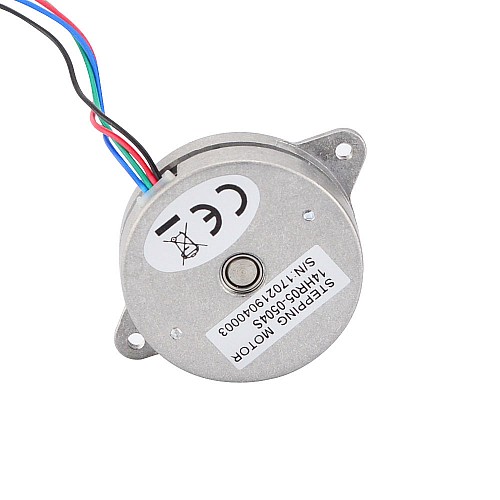

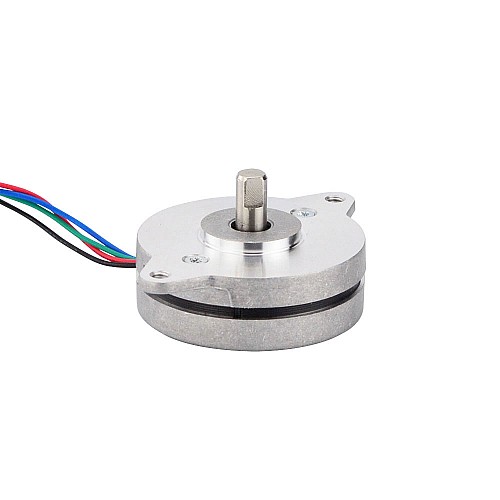

This round hybrid bipolar Nema 14 stepper motor with step angle 0.9deg and size Φ36x12.5mm. It has 4 wires, each phase draws 0.5A at 8.5V, with holding torque 5Ncm(7.08oz.in).

Electrical Specification

Manufacturer Part Number: 14HR05-0504S
Motor Type: Bipolar Stepper
Step Angle: 0.9deg
Holding Torque: 5Ncm(7.08oz.in)
Rated Current/phase: 0.5A
Phase Resistance: 17ohms
Inductance: 6.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: Φ36.5mm
Body Length: 12.5mm
Shaft Diameter: Φ5mm
Shaft Length: 10.5mm
D-cut Length: 5mm
Number of Leads: 4
Lead Length: 300mm
Weight: 60g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	5
Holding Torque(oz.in)	7.08
Inductance(mH)	6.5
Phase Resistance(ohms)	17
Rated Current(A)	0.5
Step Angle(deg.)	0.9
Physical Specification
Body Length(mm)	12.5
Frame Size(mm)	Nema 14 (Φ36)
Inventory Method	Dedicated Inventory
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	10.5
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	60
