Nema 17 External 34mm Stack 0.4A Lead 2mm(0.07874") Length 100mm

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 17E13S0404AF2-100RS
Gross Weight: 0.65kg
Certificated: ISO, CE, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

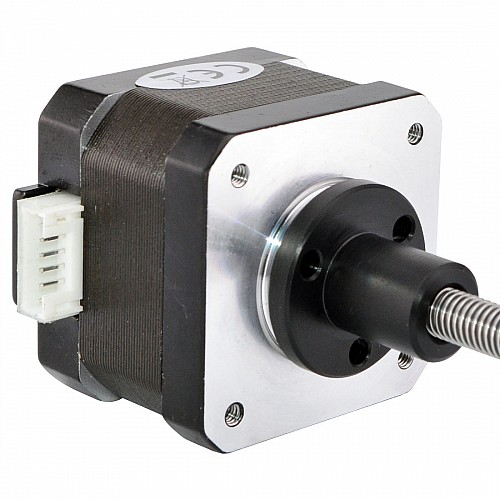

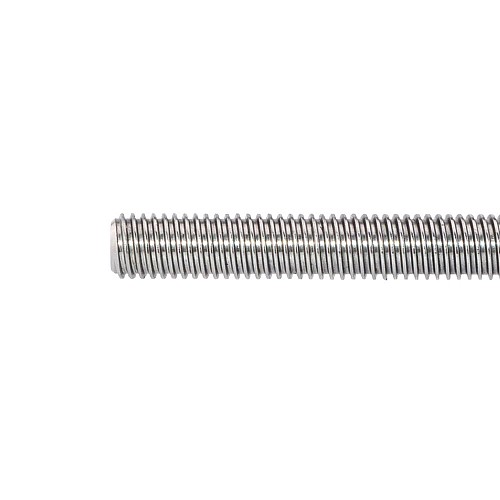

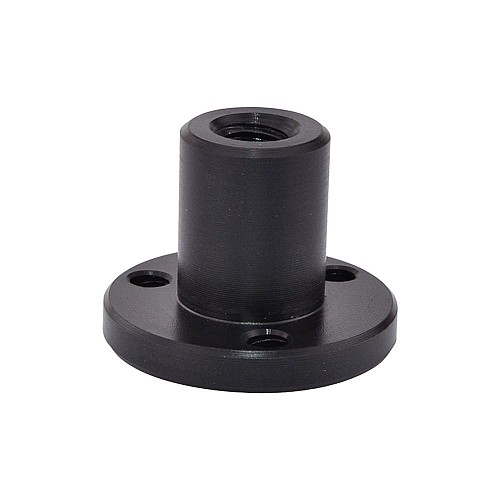

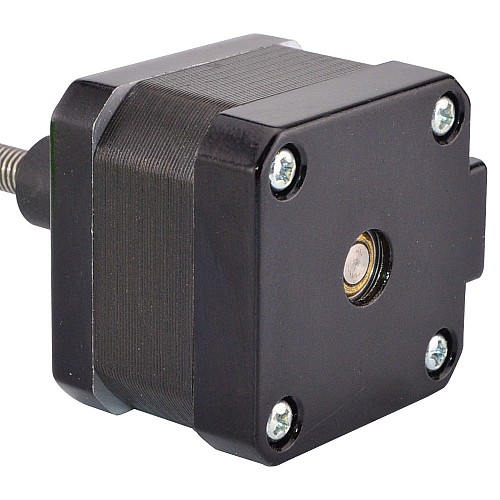

This model is economy linear stepper motor which named Nema 17 external linear actuator, the motor part is 34mm 1.8 degree 0.4A Nema 17 stepper motor. It was integrated with 100mm Tr6.35x2 threaded rod and a POM screw nut move along the threaded rod.

Electrical Specification

Manufacturer Part Number: 17E13S0404AF2-100RS(17E13S0404AF-100RS)
Motor Type: External Linear Stepper
Step Angle: 1.8deg
Holding Torque: 0.26Nm(36.82oz.in)
Rated Current/phase: 0.4A
Phase Resistance: 30ohms
Voltage: 12V
Inductance: 37mH ± 20%(1KHz)

Physical Specification

Frame Size: 42 x 42mm
Body Length: 34mm
Lead Screw Length: 100mm(3.937")
Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.01mm(0.0003937")
Lead/Revolution: 2mm(0.0787")
Number of Leads: 4
Cable Length: 400mm
Weight: 400g

Connection

A+	A-	B+	B-
Red	Gray	Yellow	Green

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 17E13S0404AF4-100RS.

Product Type
Product Type	Linear Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Holding Torque(Ncm)	26
Holding Torque(oz.in)	36.82
Inductance(mH)	37
Phase Resistance(ohms)	30
Rated Current(A)	0.4
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	34
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	400
Lead Screw Diameter(mm)	6.35
Lead Screw Length(mm)	100
Lead Travel/Revolution(mm)	2
Lead Travel/Step(mm)	0.01
Linear Motor Type	External(Acme)
No. of Lead	4
