Nema 17 Stepper Bipolar L=34mm w/ Gear Ratio 5:1 Small Planetary Gearbox

1 reviews - Write a review

€30.84

5 + €29.39

10 + €28.07

50 + €26.86

100 + €25.75

In Stock: Pre-order
Model: 17HS13-0404S-CG5
Gross Weight: 0.41kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 71

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 50

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

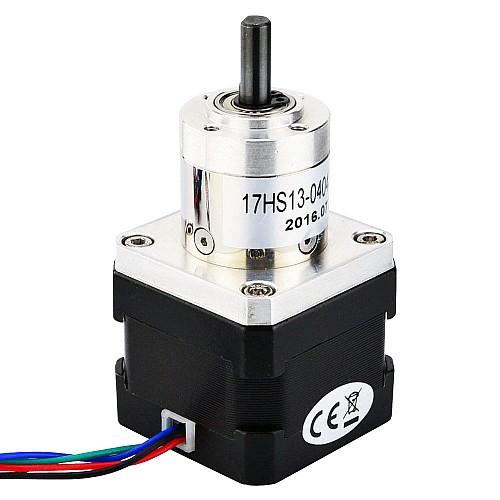

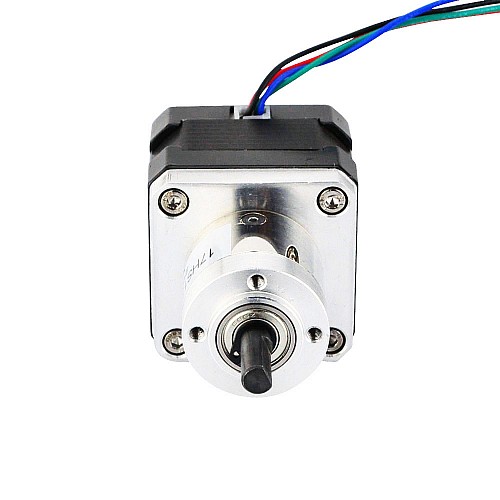

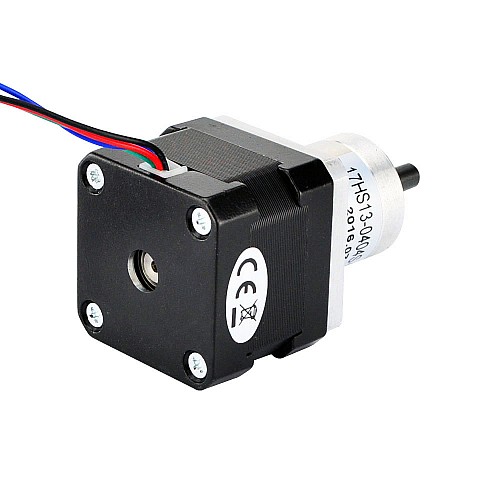

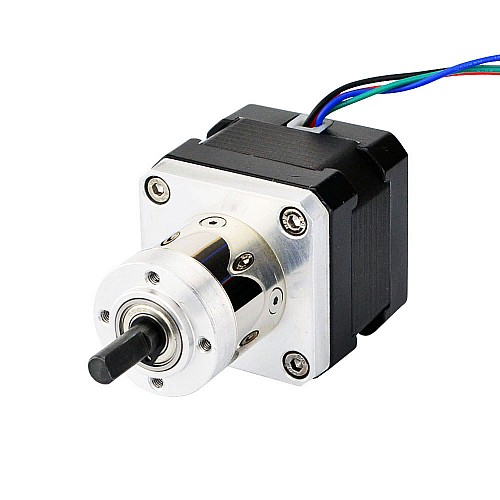

This custom Nema 17 stepper motor with 34mm body and 0.4A rated current, integrated a 28mm diameter Planetary gearbox of 5.18:1 gear ratio. It's a good solution to applications that with special space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 17HS13-0404S-CG5
Motor Type: Bipolar Stepper
Step Angle: 0.35deg
Holding Torque without Gearbox: 22Ncm(31.2oz.in)
Rated Current/phase: 0.4A
Phase Resistance: 30ohms
Inductance: 27mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 5.18:1
Efficiency: 90%
Backlash at No-load: <=1deg
Max.Permissible Torque: 2Nm(283oz.in)
Moment Permissible Torque: 4Nm(566oz.in)
Shaft Maximum Axial Load: 50N
Shaft Maximum Radial Load: 100N

Physical Specifications

Frame Size: 42 x 42mm
Motor Length: 34mm
Gearbox Length: 29.3mm
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-cut Length: 12mm
Number of Leads: 4
Lead Length: 500mm
Weight: 358g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	0.4
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	0.22
Inductance(mH)	27
Phase Resistance(ohms)	30
Physical Specification
Backlash at No-load	<=1deg
Body Length(mm)	63.3
Frame Size(mm)	Nema 17 (42 x 42)
Gear Ratio(xx:1)	5.18
Gearbox Type	Economy Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	400
