Nema 17 External 34mm Stack 0.7A Lead 4.877mm(0.192") Length 150mm

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 17E13S0704QE3-150RS
Gross Weight: 0.46kg
Certificated: ISO, CE, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

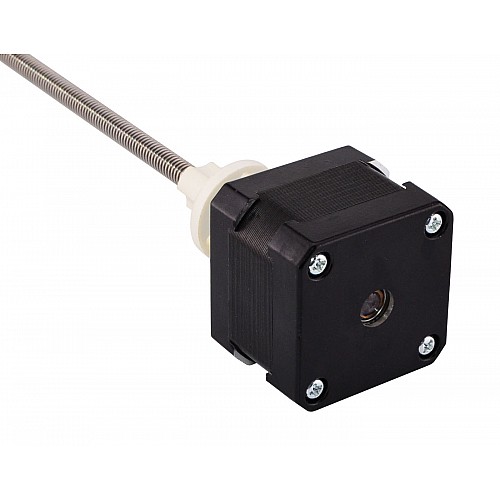

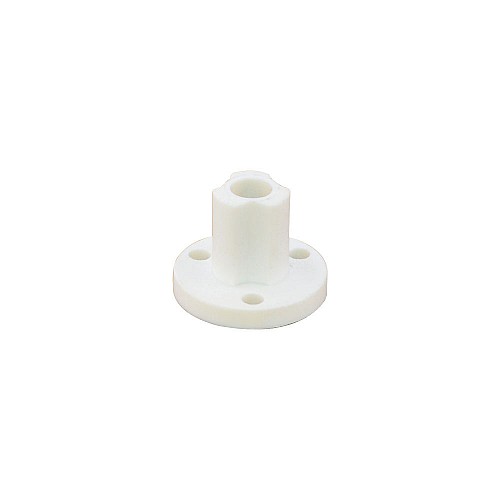

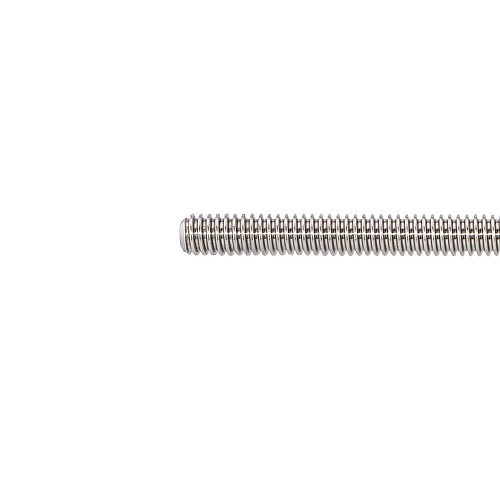

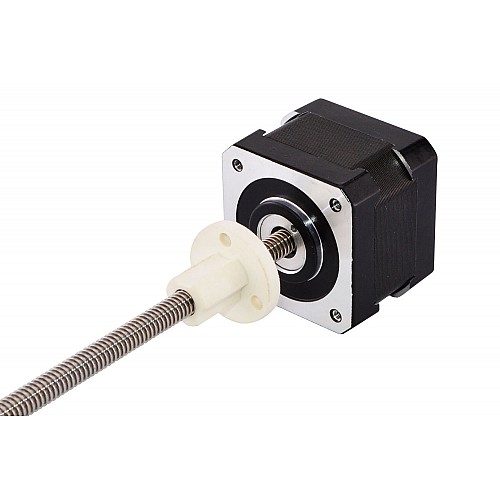

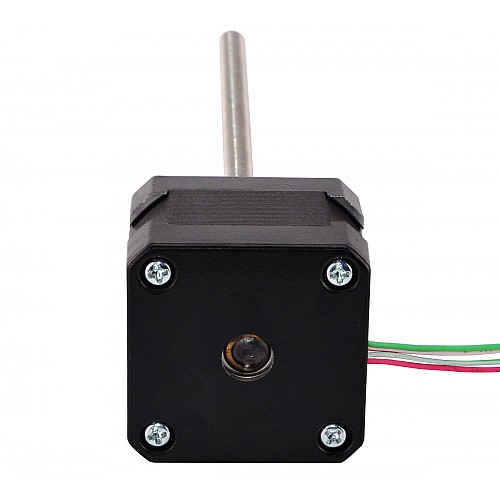

The motor part is 34mm body 1.8 degree 0.7A Nema 17 stepper motor, and it has integrated with a 5.54mm(0.2181") diameter 150mm(5.9055") length lead screw and a POM screw nut, the linear travel is 4.877mm(0.192") per revolution. This model is almost exactly same as Haydon Kerk 43000 series size 17 external stepper motor linear actuator.

Electrical Specification

Manufacturer Part Number: 17E13S0704QE3-150RS(17E13S0704QE-150RS)
Motor Type: External Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 105N(300pps)
Rated Current/phase: 0.7A
Phase Resistance: 7.2ohms
Voltage: 5V
Inductance: 10.6mH±20%(1KHz)

Physical Specification

Frame Size: 42 x 42mm
Body Length: 34mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ5.54mm(0.2181")
Lead/Step: 0.024384mm(0.00096")
Lead Travel/Revolution: 4.877mm(0.192")
Number of Leads: 4
Cable Length: 300mm
Weight : 241g

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

● How to order a custom linear motor? Custom Linear Stepper Motor

● If you only have the old part number, get the new one here Show Details

● How we named linear motor? Part Number Construction

Product Type
Product Type	Linear Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Inductance(mH)	10.6
Minimal Thrust(N) @300pps	105
Phase Resistance(ohms)	7.2
Rated Current(A)	0.7
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	34
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
Lead Screw Diameter(mm)	5.54
Lead Screw Length(mm)	150
Lead Travel/Revolution(mm)	4.877
Lead Travel/Step(mm)	0.024384
Linear Motor Type	External(Acme)
No. of Lead	4
