Nema 17 Non-captive 34mm Stack 0.7A Lead 4.877mm(0.192") Length 150mm

Discontinued

Nema 17 Non-captive 34mm Stack 0.7A Lead 4.877mm(0.192") Length 150mm

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 17N13S0704QE3-150RS
Gross Weight: 0.35kg
Certificated: ISO, CE, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

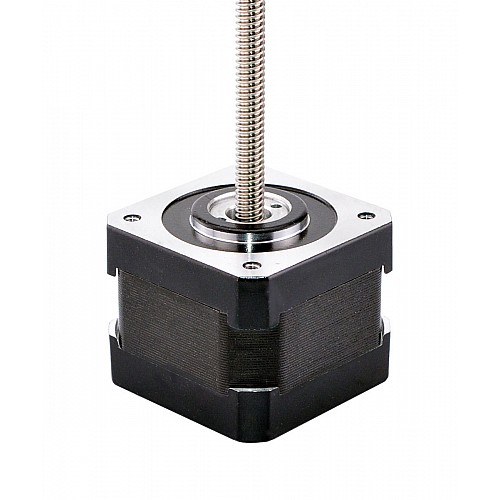

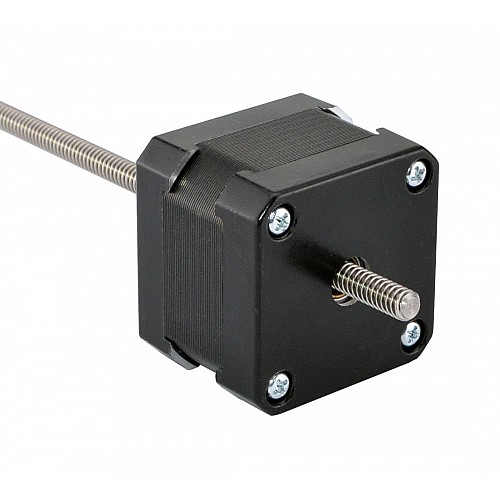

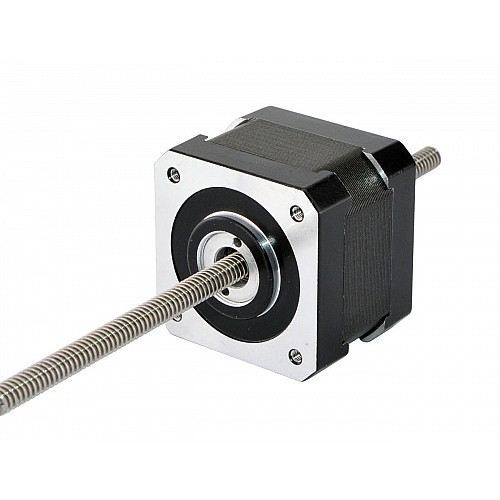

This model is almost exactly same as Haydon Kerk 43000 series size 17 non-captive stepper motor linear actuator. The motor part is 34mm body 1.8 degree 0.7A Nema 17 stepper motor, and it works with a 5.54mm(0.2181") diameter 150mm(5.9055") length lead screw, the linear travel is 4.877mm(0.192") per revolution.

Electrical Specification

Manufacturer Part Number: 17N13S0704QE3-150RS(17N13S0704QE-150RS)
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 105N(300pps)
Rated Current/phase: 0.7A
Phase Resistance: 7.2ohms
Voltage: 5V
Inductance: 10.6mH±20%(1KHz)

Physical Specification

Frame Size: 42 x 42mm
Body Length: 34mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ5.54mm(0.2181")
Lead/Step: 0.024384mm(0.00096")
Lead Travel/Revolution: 4.877mm(0.192")
Number of Leads: 4
Cable Length: 300mm
Weight : 241g

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 17N19S1304QE3-250RS.

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Inductance(mH)	10.6
Minimal Thrust(N) @300pps	105
Phase Resistance(ohms)	7.2
Rated Current(A)	0.7
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	34
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
Lead Screw Diameter(mm)	5.54
Lead Screw Length(mm)	150
Lead Travel/Revolution(mm)	4.877
Lead Travel/Step(mm)	0.024384
Linear Motor Type	Non-Captive
No. of Lead	4
