Nema 17 External 48mm Stack 1.68A Lead 2mm(0.07874") Length 200mm

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 17E19S1684AF2-200RS
Gross Weight: 0.90kg
Certificated: ISO, CE, RoHS

Sold: 170

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

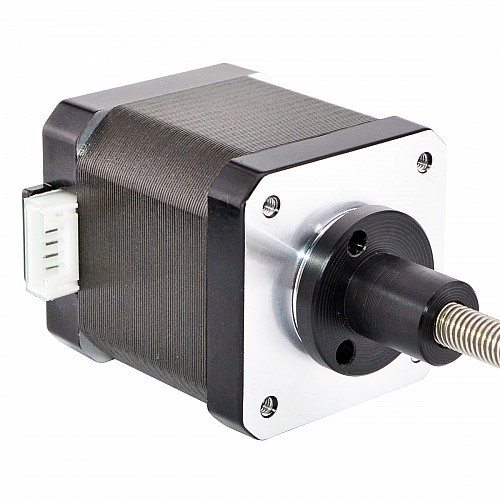

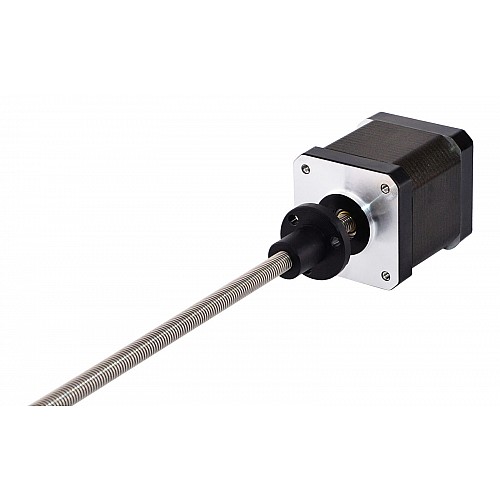

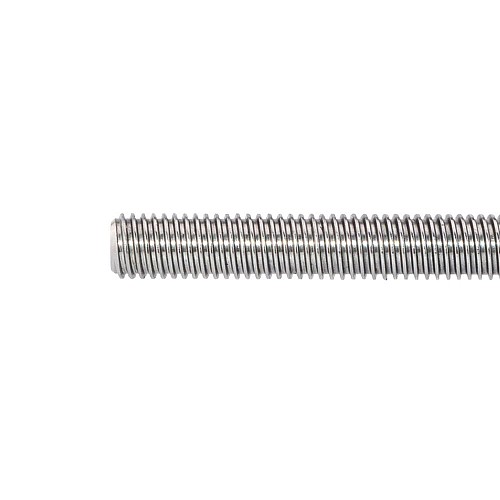

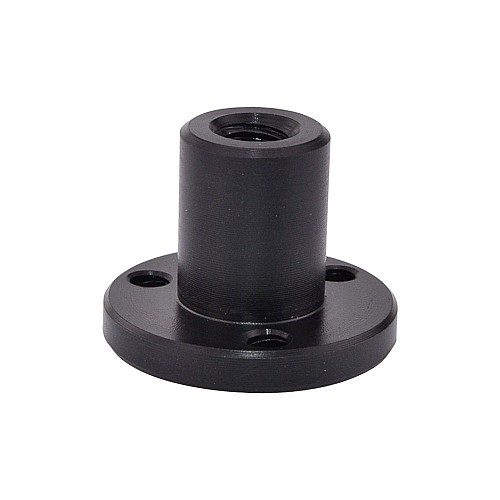

This model is economy linear stepper motor which named Nema 17 external linear actuator with a holding torque of 44Ncm(62.31oz.in), the motor part is 48mm 1.8 degree 1.68A Nema 17 stepper motor. It was integrated with 200mm Tr6.35x2 threaded rod and a POM screw nut move along the threaded rod.

Electrical Specification

Manufacturer Part Number: 17E19S1684AF2-200RS(17E19S1684AF-200RS)
Motor Type: External Linear Stepper
Step Angle: 1.8deg
Holding Torque: 44Ncm(62.31oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.65ohms
Voltage: 2.8V
Inductance: 3mH ± 20%(1KHz)

Physical Specification

Frame Size: 42 x 42mm
Body Length: 48mm
Lead Screw Length: 200mm(7.874")
Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.01mm(0.0003937")
Lead/Revolution: 2mm(0.0787")
Number of Leads: 4
Cable Length: 500mm
Weight: 400g

Connection

A+	A-	B+	B-
Red	Gray	Yellow	Green

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 17E19S1684AF4-200RS.

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	44
Holding Torque(oz.in)	62.31
Inductance(mH)	3.0
Phase Resistance(ohms)	1.65
Rated Current(A)	1.68
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	48
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
Lead Length(mm)	500
Lead Screw Diameter(mm)	6.35
Lead Screw Length(mm)	200
Lead Travel/Revolution(mm)	2
Lead Travel/Step(mm)	0.01
Linear Motor Type	External(Acme)
No. of Lead	4
