Nema 11 Stepper Motor Bipolar L=51mm w/ Gear Ratio 5:1 Planetary Gearbox

Hot

Nema 11 Stepper Motor Bipolar L=51mm w/ Gear Ratio 5:1 Planetary Gearbox

0 reviews - Write a review

C$52.55

5 + C$49.95

10 + C$47.61

50 + C$45.47

100 + C$43.51

In Stock: 10000
Model: 11HS20-0674S-PG5
Gross Weight: 0.35kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 2351

Click country for real-time stock

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

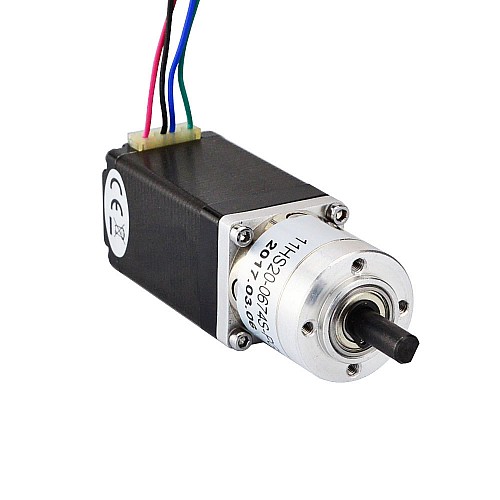

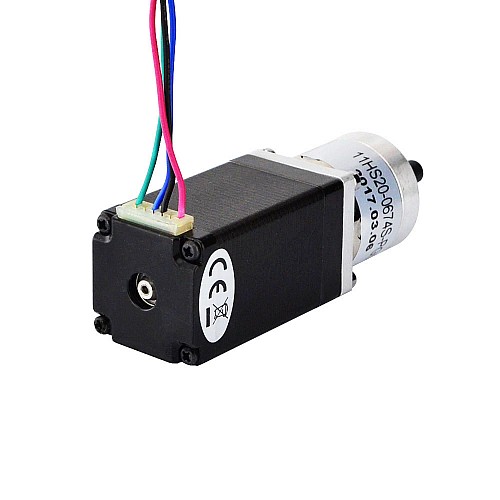

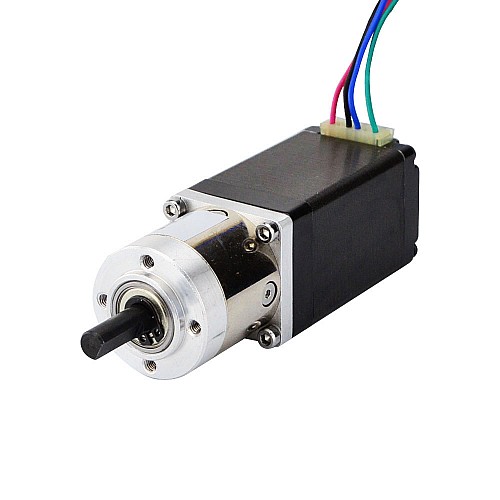

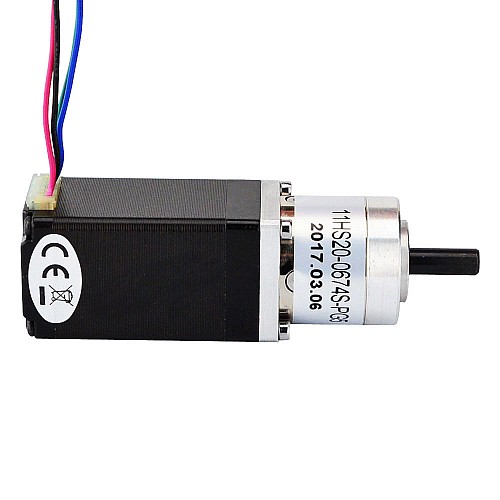

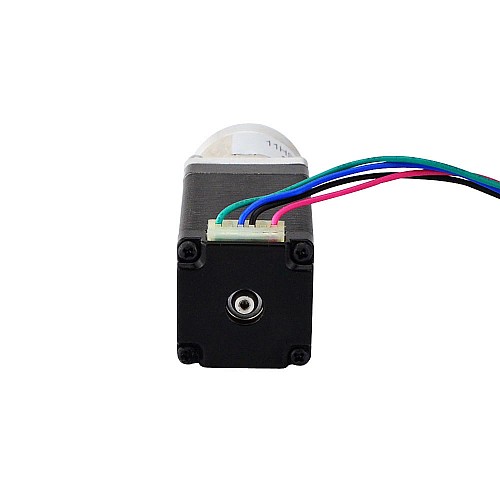

This Nema 11 single shaft stepper motor with 51mm body and 0.67A rated current, integrated a planetary gearbox of 5.18:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 11HS20-0674S-PG5
Motor Type: Bipolar Stepper
Holding Torque without Gearbox: 14Ncm(19.8oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 12ohms
Inductance: 6.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 5.18:1
Efficiency: 90%
Backlash at No-load: <=3deg
Max.Permissible Torque: 3Nm(425oz.in)
Moment Permissible Torque: 5Nm(708oz.in)
Shaft Maximum Axial Load: 5N
Shaft Maximum Radial Load: 25N

Physical Specifications

Frame Size: 28 x 28mm
Motor Length: 51mm
Gearbox Length: 29.2mm
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-cut Length: 12mm
Number of Leads: 4
Lead Length: 300mm
Weight: 290g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	0.67
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	0.14
Inductance(mH)	6.5
Phase Resistance(ohms)	12
Physical Specification
Backlash at No-load	<=3deg
Body Length(mm)	79.7
Frame Size(mm)	Nema 11 (28 x 28)
Gear Ratio(xx:1)	5.18
Gearbox Type	Economy Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	290

File	Size
11HS20-0674S-PG5_Full_Datasheet.pdf	137.07KB	Download
11HS20-0674S-PG5.STEP	1.76MB	Download
11HS20-0674S-PG5_Torque_Curve.pdf	151.18KB	Download
11HS20-0674S_Torque_curve.pdf	213.04KB	Download
