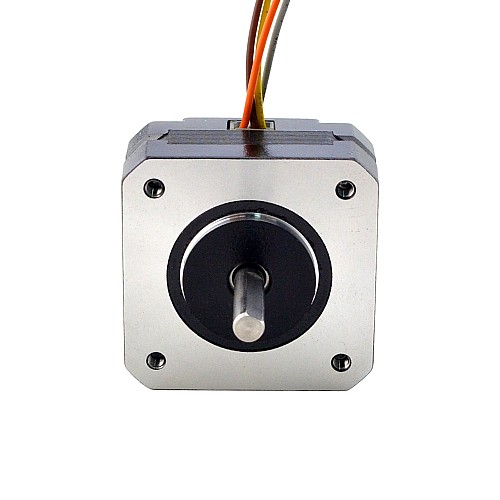

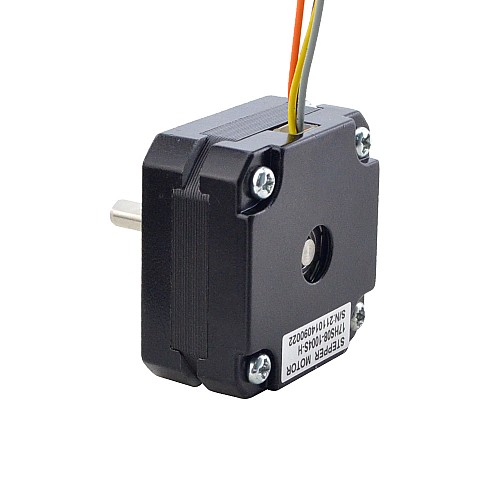

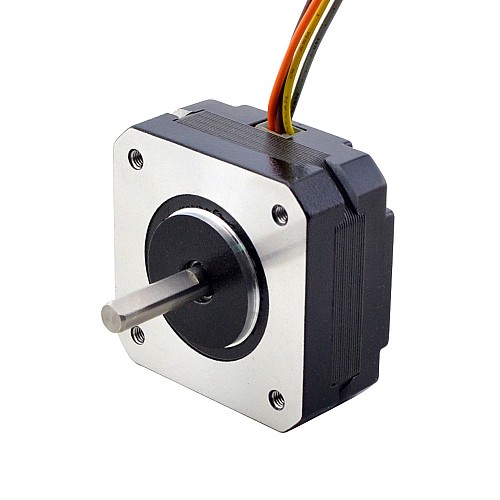

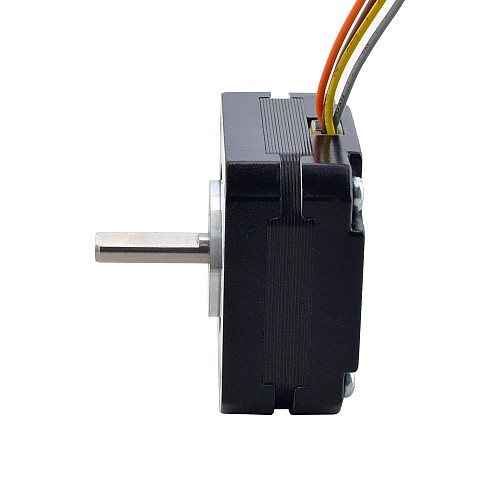

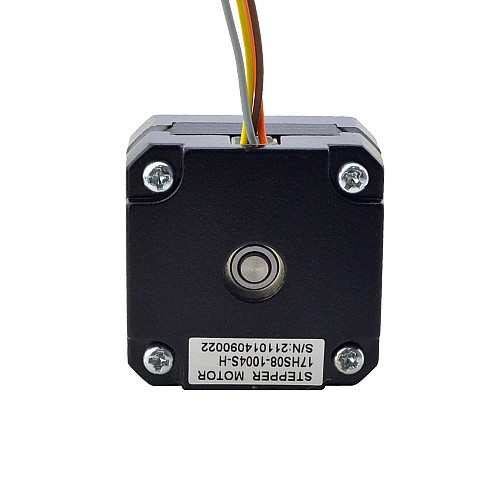

Nema 17 High Temp Stepper Motor 16Ncm(22.7oz.in) Extruder Motor Insulation Class H 180C

4 reviews - Write a review

C$15.87

5 + C$14.99

10 + C$14.22

50 + C$13.51

100 + C$12.88

In Stock: 10000
Model: 17HS08-1004S-H
Gross Weight: 0.19kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 462

Click country for real-time stock

Ships from

China

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This motor with a holding torque of 16Ncm(22.7oz.in) is designed for high temperature application. We have customized motor's winding, bearing, magnetic steel and also the plastic skeleton to achieve insulation class of H, the temprature reach up to 180C degree. This motor is widely used in 3D Printer extruder.

Electrical Specification

Manufacturer Part Number: 17HS08-1004S-H
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 16Ncm(22.7oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 3.7ohms
Inductance: 4.5mH±20%(1KHz)
Insulation Class: H 180C(356F)

Physical Specification

Frame Size: 42 x 42mm
Body Length: 21.5mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
D-cut Length: 16.5mm
Number of Leads: 4
Cable Length: 400mm
Weight: 150g

Connection

A+	A-	B+	B-
Gray	Brown	Orange	Yellow

Product Type
Product Type	High Temp Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Holding Torque(Ncm)	16
Holding Torque(oz.in)	22.7
Inductance(mH)	4.5
Insulation Class	H 180C(356F)
Open-loop/Closed-loop	Open-loop
Phase Resistance(ohms)	3.7
Rated Current(A)	1.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	21.5
Cable Length(mm)	400
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	5
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	150
