Nema 17 Stepper Ball Screw Linear Actuator 1.5A Stroke 120mm 0.25Nm(35.40oz.in) Lead 4mm(0.15748") with Sensor

0 reviews - Write a review

C$413.69

5 + C$394.73

10 + C$377.45

50 + C$361.62

100 + C$351.77

In Stock: 200
Model: LMD17S13BDB15-120
Gross Weight: 1.17kg
Certificated: ISO, CE

Click country for real-time stock

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

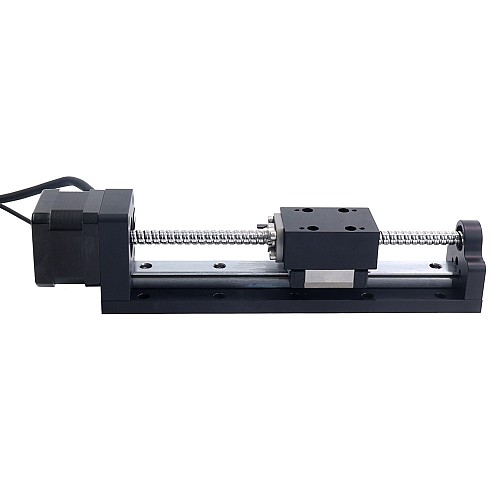

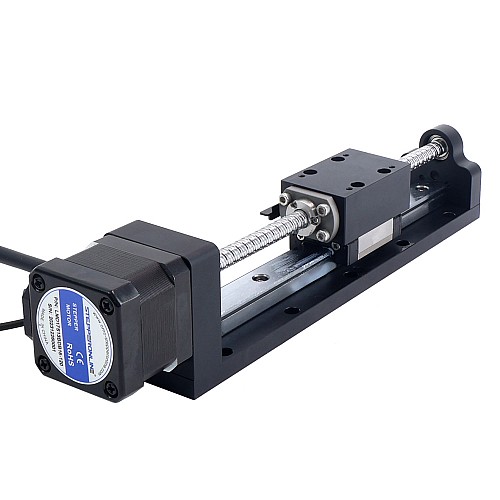

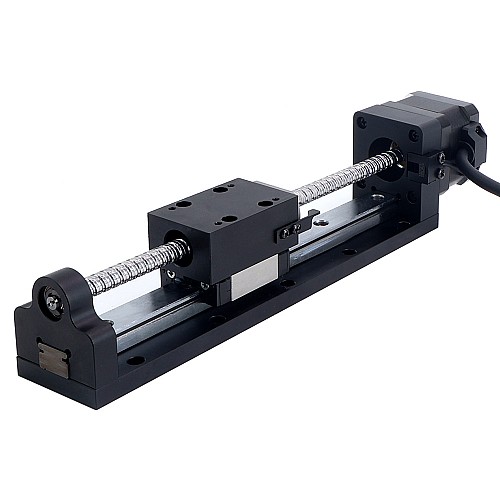

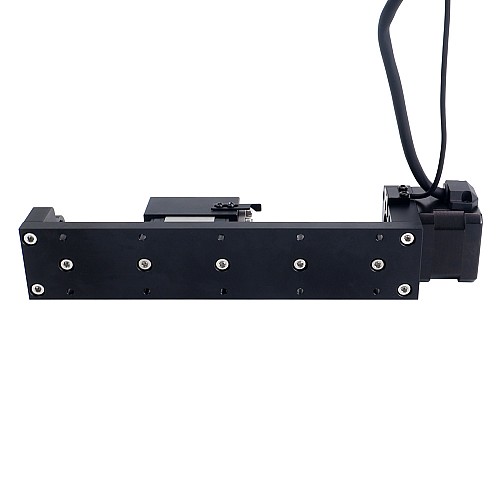

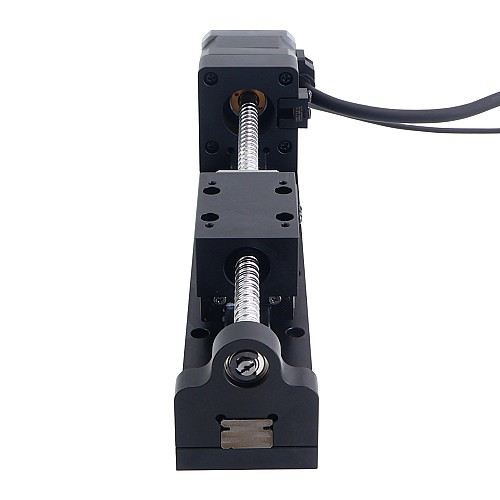

This is an LMD series Nema 17 stepper motor linear actuator with stroke 120mm 0.25Nm(35.40oz.in) lead 4mm(0.15748") and sensor. This type of actuator is composed of a highly integrated ball screw linear stepper motor and a guide rail slide. It has the advantages of simple structure and small installation space. Since there is no coupling, its accuracy is higher than that of linear actuators with conventional coupling structures. In addition, the actuator is equipped with a photoelectric sensor for detecting the zero point position. This actuator is widely used in the medical industry, measurement, laser welding, laser cutting, small CNC machine tools, engraving, milling machines, etc.

Electrical Specification

Manufacturer Part Number: LMD17S13BDB15-120
Screw Type: Ball Screw
Step Angle: 1.8deg
Holding Torque: 0.25Nm(35.40oz.in)
Rated Load Capacity: 230N
Rated Current/phase: 1.5A
Phase Resistance: 1.7ohms ± 10%
Inductance: 2.5mH ± 20%(1KHz)
Sensor Type: NPN

Physical Specification

Motor Size: 42 x 42 x 34mm
Lead Screw Length: 179mm
Lead Screw Diameter: 8mm
Max. Stroke Length: 120mm(4.73")
Max. Speed: 60mm/s
Position Accuracy: ± 0.02mm
Lead/Step: 0.02mm(0.0007874")
Lead/Revolution: 4mm(0.15748")
Number of Leads: 4
Cable Length: 500mm
Weight: 1.0kg

Motor Connection

Pin No.	1	2	3	4
Bipolar	A+	A-	B+	B-
Wires	Red	Red/White	Green	Green/White

Photoelectric Switch Sequence

Pin No.	1	2	3	4
Bipolar	+5~24V	GND	Single Line	N/A
Wires	Brown	Blue	Black	White

Electrical Specification
Holding Torque(Ncm)	25
Holding Torque(oz.in)	35.40
Inductance(mH)	2.5
Phase Resistance(ohms)	1.7
Rated Current(A)	1.5
Step Angle(deg.)	1.8
Physical Specification
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
Lead Screw Diameter(mm)	8
Lead Screw Length(mm)	179
Lead Travel/Revolution(mm)	4
Lead Travel/Step(mm)	0.02
Linear Motor Type	Ball Screw
Stroke Length(mm/ft)	120/0.39

Limit Switch

Linear actuators from StepperOnline come standard with an NPN photoelectric sensor used as the limit switch.

StepperOnline also supports customization of the sensor, including:

Sensor type (NPN or PNP)
Sensor housing design
Quantity and mounting positions of the sensors

Encoders

StepperOnline supports the custom installation of encoders on linear actuators. Customers can select encoders with or without an index (Z-phase) output, as well as output types such as single-ended or differential (line driver).

Additionally, customers can freely choose from various resolutions to achieve easier and more precise positioning.

All standard StepperOnline encoders are optical incremental encoders. When requesting a custom encoder installation, please provide detailed specifications, particularly regarding resolution, index signal, and output type.

Brakes

To prevent potential hazards in vertical applications or during sudden power failures, StepperOnline supports the installation of brakes on linear actuators to ensure operational safety. StepperOnline uses standard power-off brakes, which engage automatically when power is removed, ensuring secure and stable positioning of the equipment.

Cables

StepperOnline offers cable customization options for its linear actuators, including motor leads, encoder cables, and brake leads. Customization options include:

Lead length and wire gauge
Connector or terminal type
Wire twisting (stranding)
Protective sleeving such as heat shrink tubing, cable glands, or high-flexibility cables
