Name: Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 5:1 Planetary Gearbox
Brand: STEPPERONLINE
SKU: 17HS19-1684S-PG5
Price: 41.85 CAD
Availability: InStock
Rating: 5 (8 reviews)

Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 5:1 Planetary Gearbox - 17HS19-1684S-PG5 | StepperOnline CA

17HS19-1684S-PG5

Shaft Diameter(mm)8

Shaft Length(mm)20

No. of Lead4

Lead Length(mm)500

Question

Downloads

17HS19-1684S-PG5_Full_Datasheet.pdfPDF · 138.52KB 17HS19-1684S-PG5.STEPSTEP · 2.37MBLog in to download 17HS19-1684S-PG5_Torque_Curve.pdfPDF · 195.46KB

Same series

Model	Shaft Diameter(mm)	Shaft Length(mm)	No. of Lead	Lead Length(mm)	Price	Stock
17HS13-0404S-PG27	6	18	4	500	C$40.90	In stock
17HS13-0404S-PG5	6	18	4	500	C$39.02	In stock
17HS15-0404S-PG19	8	20	4	500	C$39.96	In stock
17HS15-1684S-PG27	8	20	4	500	C$41.85	In stock
17HS15-1684S-PG5	8	20	4	500	C$40.15	In stock
17HS19-0406S-PG14	8	20	6	500	C$41.85	In stock
17HS19-1684S-PG100	8	20	4	500	C$43.75	In stock
17HS19-1684S-PG14	8	20	4	500	C$41.85	In stock
17HS19-1684S-PG19	8	20	4	500	C$41.85	In stock
17HS19-1684S-PG27	8	20	4	500	C$43.75	In stock
17HS19-1684S-PG5	8	20	4	500	C$41.85	In stock
17HS19-1684S-PG51	8	20	4	500	C$43.75	In stock
17HS19-1684S-PG5X	8	20	4	1850	C$44.21	Backorder
17HS24-2104S-PG5	8	20	4	500	C$45.63	In stock

Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 5:1 Planetary Gearbox

This Nema 17 stepper motor with 48mm body, 500mm cable and 1.68A rated current, integrated a planeta... Read More

8 reviews • Write a review

from

C$41.85

5 + C$39.88

10 + C$38.09

50 + C$36.45

100 + C$34.95

Click country for real-time stock

Ships from

China

United States (+C$10.30)

Germany (+C$11.34)

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

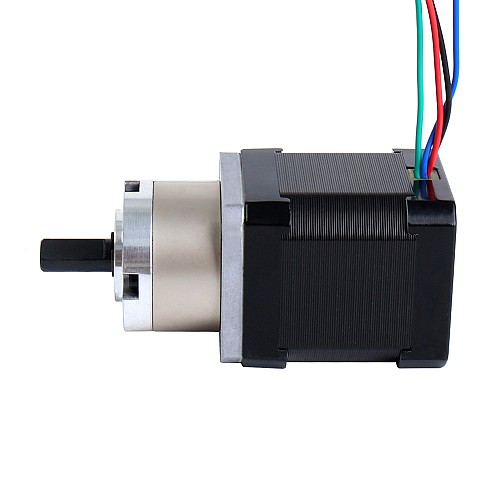

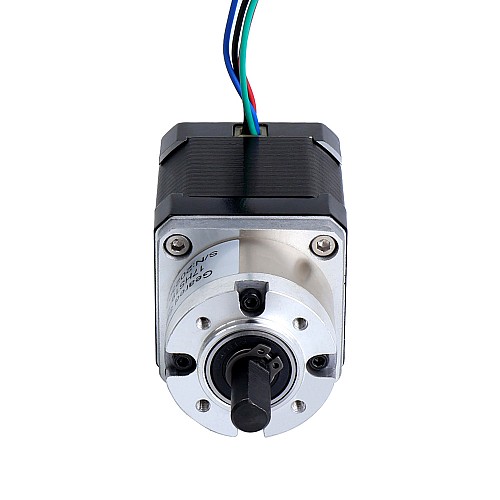

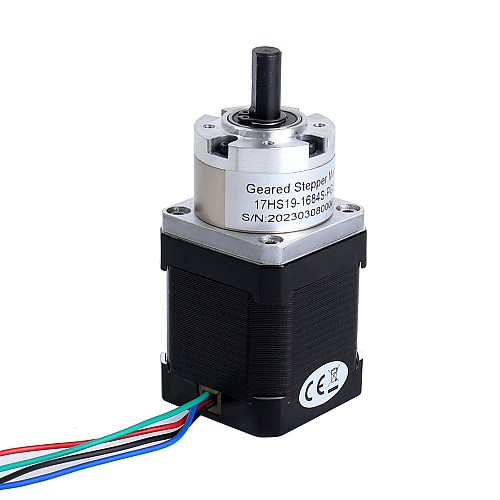

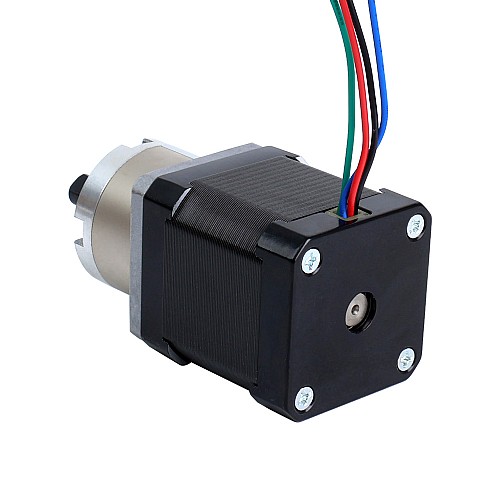

This Nema 17 stepper motor with 48mm body, 500mm cable and 1.68A rated current, integrated a planetary gearbox of 5.18:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 17HS19-1684S-PG5
Motor Type: Bipolar Stepper
Step Angle: 0.35deg
Holding Torque without Gearbox: 52Ncm(73.6oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.8ohms
Inductance: 3.2mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 5.18:1
Efficiency: 90%
Backlash at No-load: <=3deg
Max.Permissible Torque: 3Nm(424.83oz.in)
Moment Permissible Torque: 5Nm(708.06oz.in)
Shaft Maximum Axial Load: 50N
Shaft Maximum Radial Load: 100N

Physical Specifications

Frame Size: 42 x 42mm
Motor Length: 48mm
Gearbox Length: 27.3mm
Shaft Diameter: Φ8mm
Shaft Length: 20mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 520g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.68
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	0.52
Inductance(mH)	3.2
Phase Resistance(ohms)	1.8
Physical Specification
Backlash at No-load	<=3 deg
Body Length(mm)	75.3
Frame Size(mm)	Nema 17 (42 x 42)
Gear Ratio(xx:1)	5.18
Gearbox Type	Economy Planetary
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	520
