Nema 23 Bipolar 1.8deg 2.4Nm(339.87oz.in) 1.8A 57x57x104mm 4 Wires

Hot

Nema 23 Bipolar 1.8deg 2.4Nm(339.87oz.in) 1.8A 57x57x104mm 4 Wires

6 reviews - Write a review

€24.68

5 + €23.51

10 + €22.45

50 + €21.49

100 + €20.60

In Stock: 10000
Model: 23HS41-1804S
Gross Weight: 1.65kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 3774

Click country for real-time stock

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

What Does Amazon German and Amazon US Mean?

Amazon German and Amazon US shipping options mean that this product is fulfilled by Amazon for reliable delivery. This is also usually called FBA.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

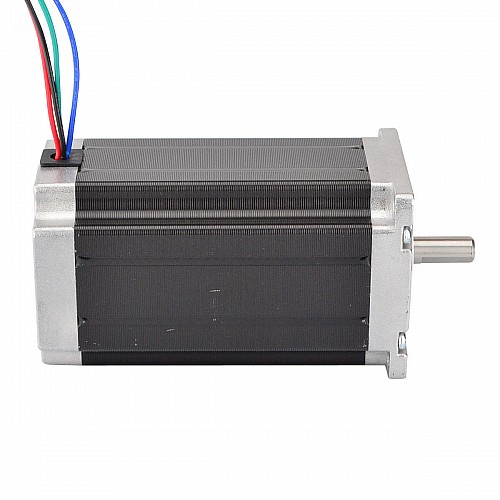

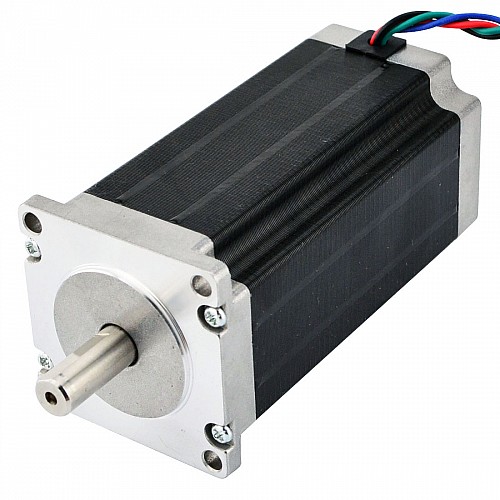

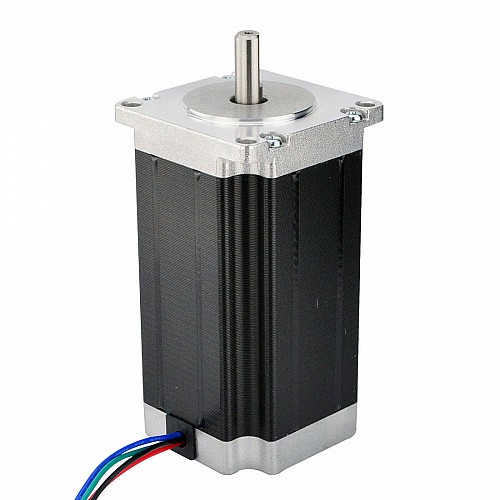

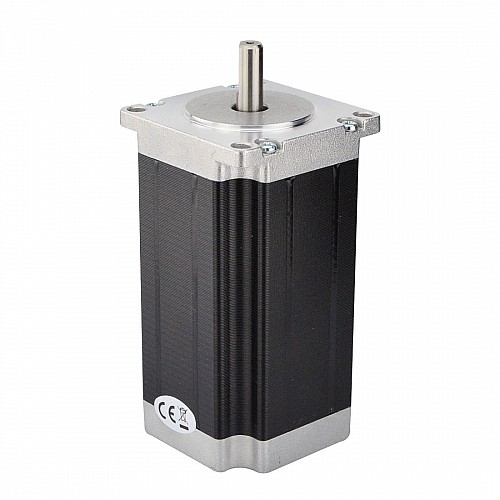

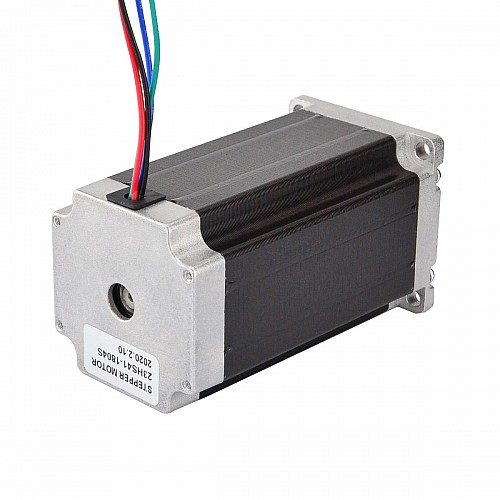

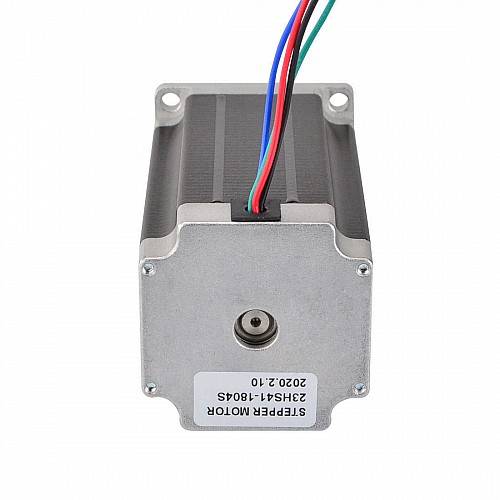

This bipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x104mm. It has 4 wires, each phase draws 1.8A, with holding torque 2.4Nm(339.87oz.in).

Electrical Specification

Manufacturer Part Number: 23HS41-1804S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 2.4Nm(339.87oz.in)
Rated Current/phase: 1.8A
Phase Resistance: 2.75ohms
Inductance: 12mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 104mm
Shaft Diameter: Φ8mm
Shaft Length: 20.6mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 1.25kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	240
Holding Torque(oz.in)	339.87
Inductance(mH)	12
Phase Resistance(ohms)	2.75
Rated Current(A)	1.8
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	104
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	8
Shaft Length(mm)	20.6
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	1250
