Name: 34HS46-5004D | Dual Shaft Nema 34 CNC Stepper Motor 8.5Nm(1204oz.in) 5A 86x86x114mm | StepperOnline CA
SKU: 34HS46-5004D
Availability: InStock
Rating: 4.8 (6 reviews)

Dual Shaft Nema 34 CNC Stepper Motor 8.5Nm(1204oz.in) 5A 86x86x114mm

6 reviews - Write a review

C$0.00

In Stock: 1
Model: 34HS46-5004D
Gross Weight: 5.60kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

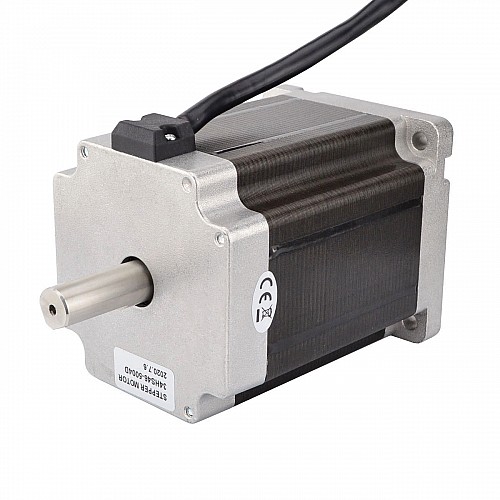

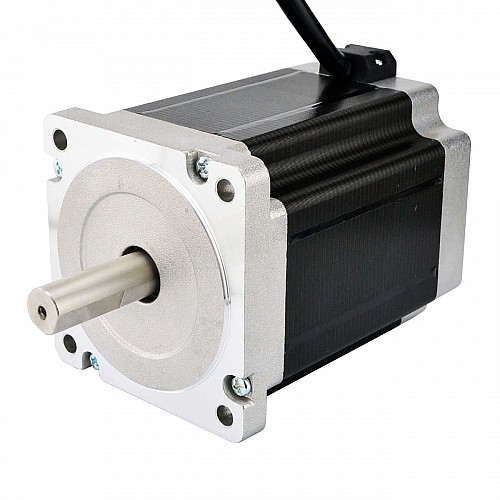

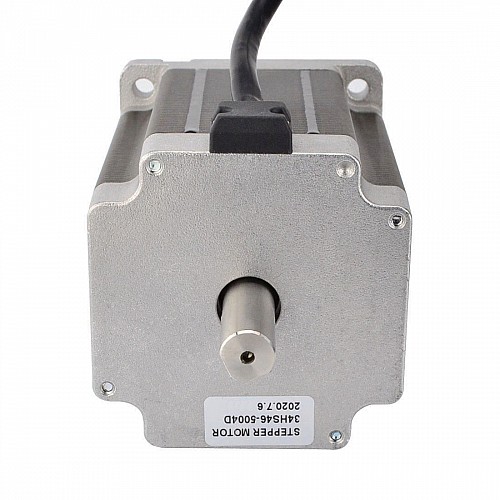

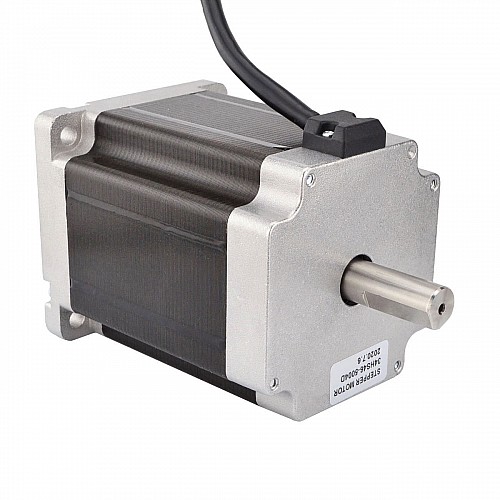

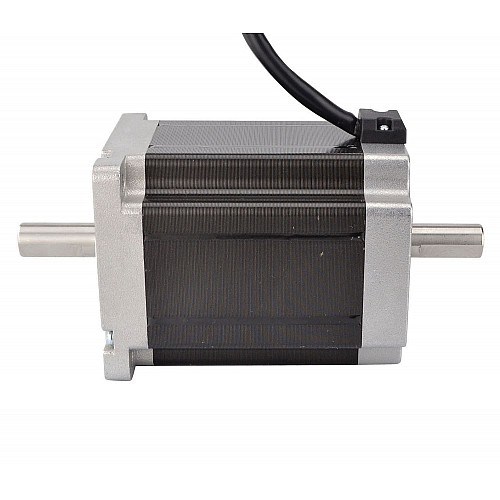

This Nema 34 dual shaft stepper motorwith size 86x86x114mm. It has 4 wires, each phase draws 5.0A, with holding torque 8.5Nm(1204oz.in). A rear shaft can mount encoder, hand wheel or equals.

Electrical Specification

Manufacturer Part Number: 34HS46-5004D
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 8.5Nm(1204oz.in)
Rated Current/phase: 5.0A
Phase Resistance: 1.0ohms
Inductance: 11mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 114mm
Shaft Diameter: Φ14mm
Front Shaft Length: 37mm
Rear Shaft Length: 34mm
D-cut Length: 25mm
Number of Leads: 4
Lead Length: 300mm
Weight: 3.6kg

Connection

A+	A-	B+	B-
Red	Green	Yellow	Blue

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 34HS46-5004D1.

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	850
Holding Torque(oz.in)	1204
Inductance(mH)	11
Phase Resistance(ohms)	1
Rated Current(A)	5
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	114
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	14
Shaft Length(mm)	37
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	3600
