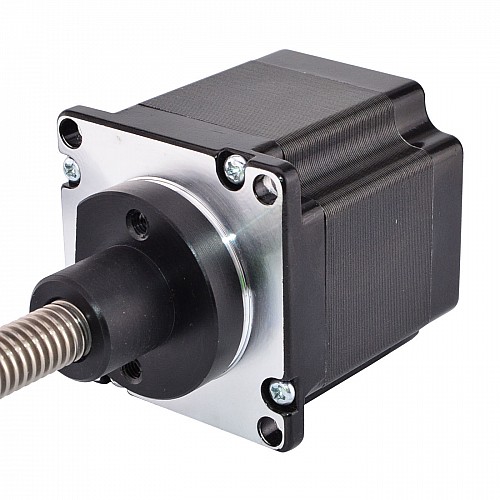

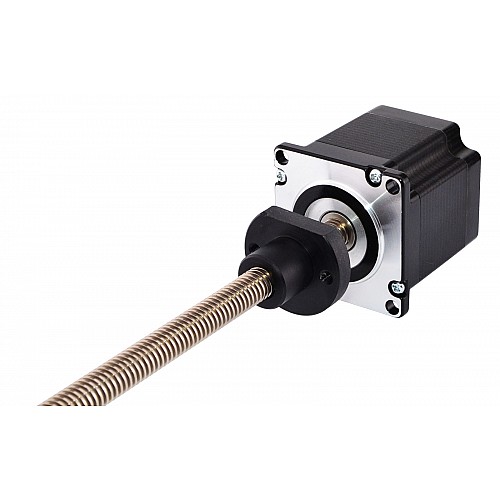

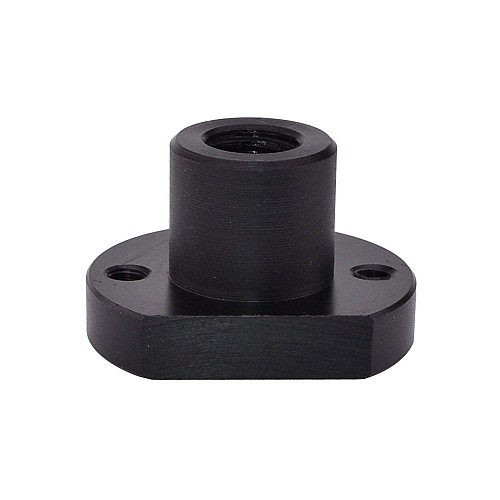

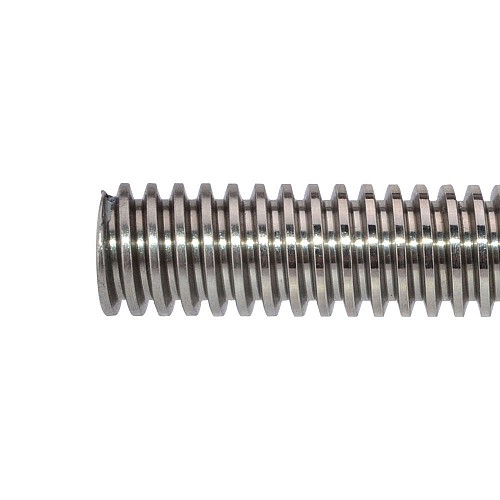

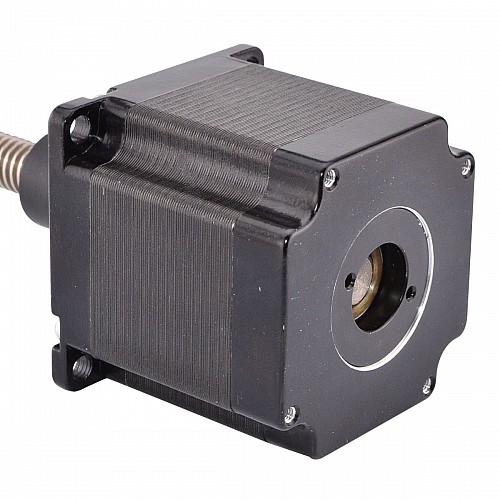

This model is economy linear stepper motor named Nema 23 external linear actuator, the motor part is 56mm 1.8 degree 2A Nema 23 stepper motor with Lead 2mm(0.07874"). It was integrated with 300mm Tr11x2 threaded rod, and a POM screw nut move along the threaded rod.

Electrical Specification

Manufacturer Part Number: 23E22S2004AJ2-300RS(23E22S2004AJ-300RS)
Motor Type: External Linear Stepper
Holding Torque: 1.2Nm(169.93oz.in)
Rated Current/phase: 2.0A
Phase Resistance: 3.6ohms
Voltage: 7.2V
Inductance: 12mH ± 20%(1KHz)

Physical Specification

Frame Size: 57 x 57mm
Motor Length: 56mm
Lead Screw Length: 300mm(11.811")
Lead Screw Diameter: Φ11mm(0.433")
Lead/Step: 0.01mm(0.0003937")
Lead/Revolution: 2mm(0.0787")
Number of Leads: 4
Cable Length: 500mm
Weight: 650g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 23E22S2004AJ4-300RS.

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	120
Holding Torque(oz.in)	169.93
Inductance(mH)	12
Phase Resistance(ohms)	3.6
Rated Current(A)	2.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	56
Cable Length(mm)	500
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Screw Diameter(mm)	11
Lead Screw Length(mm)	300
Lead Travel/Revolution(mm)	2
Lead Travel/Step(mm)	0.01
Linear Motor Type	External(Acme)
No. of Lead	4
With Encoder	No
